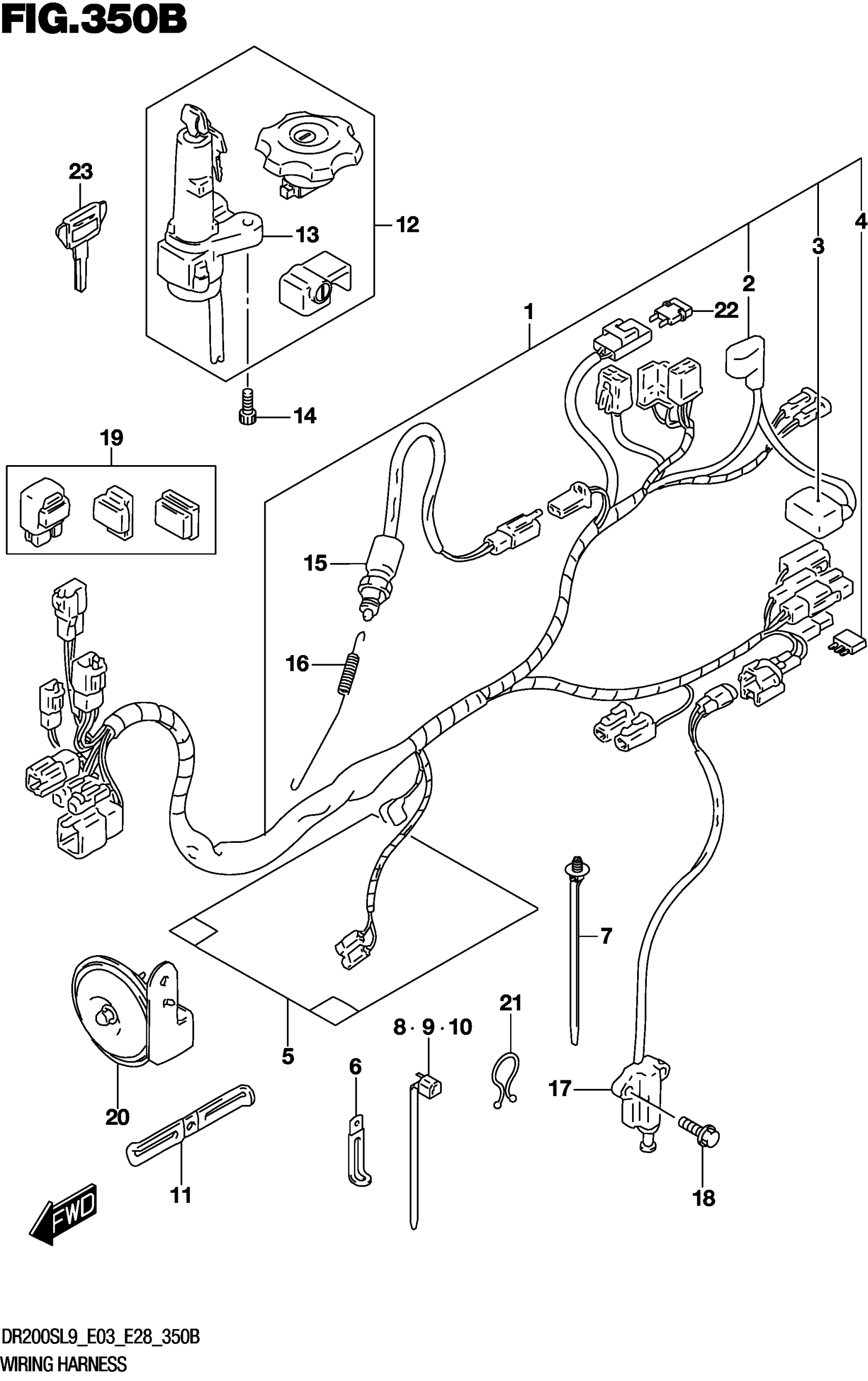

Suzuki DR200SL9 (2019) WIRING HARNESS (DR200SL9 E28) Diagram

#

Description
Price

1

HARNESS

36610-49J00

Unavailable

2

.CAP

31861-10D00

Unavailable

3

.CAP, BATTERY PLUS

33624-10D00

$6.30

4

.DIODE

36611-38A10

$13.16

5

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

7

CLAMP (L:170)

09407-17403

$4.91

8

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP (L:190)

09407-19401

$3.05

11

CLAMP

36651-05301

Unavailable

12

LOCK SET This part replaces 37100-42840.

37100-42841

$247.97

13

.SWITCH ASSY

37100-42A01

$156.82

14

BOLT

07130-0616B

$2.39

15

SWITCH ASSY,STOP LAMP

37740-45D00

$18.27

16

SPRING

09443-06064

$5.20

17

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$60.37

18

BOLT (6X20)

01550-0620A

$1.97

19

RELAY ASSY

38740-24X50

$45.20

20

HORN ASSY

38500-44B00

$87.70

21

CLIP (ID:11.5)

09408-00012

$2.13

22

.FUSE (20A)

09481-20101

$2.12

23-1

KEY | OPT

37146-03A00

$9.89

23-2

KEY | OPT

37146-03A10

$11.63

23-3

KEY | OPT

37146-03A20

$12.10

23-4

KEY | OPT

37146-03A30

$10.28
