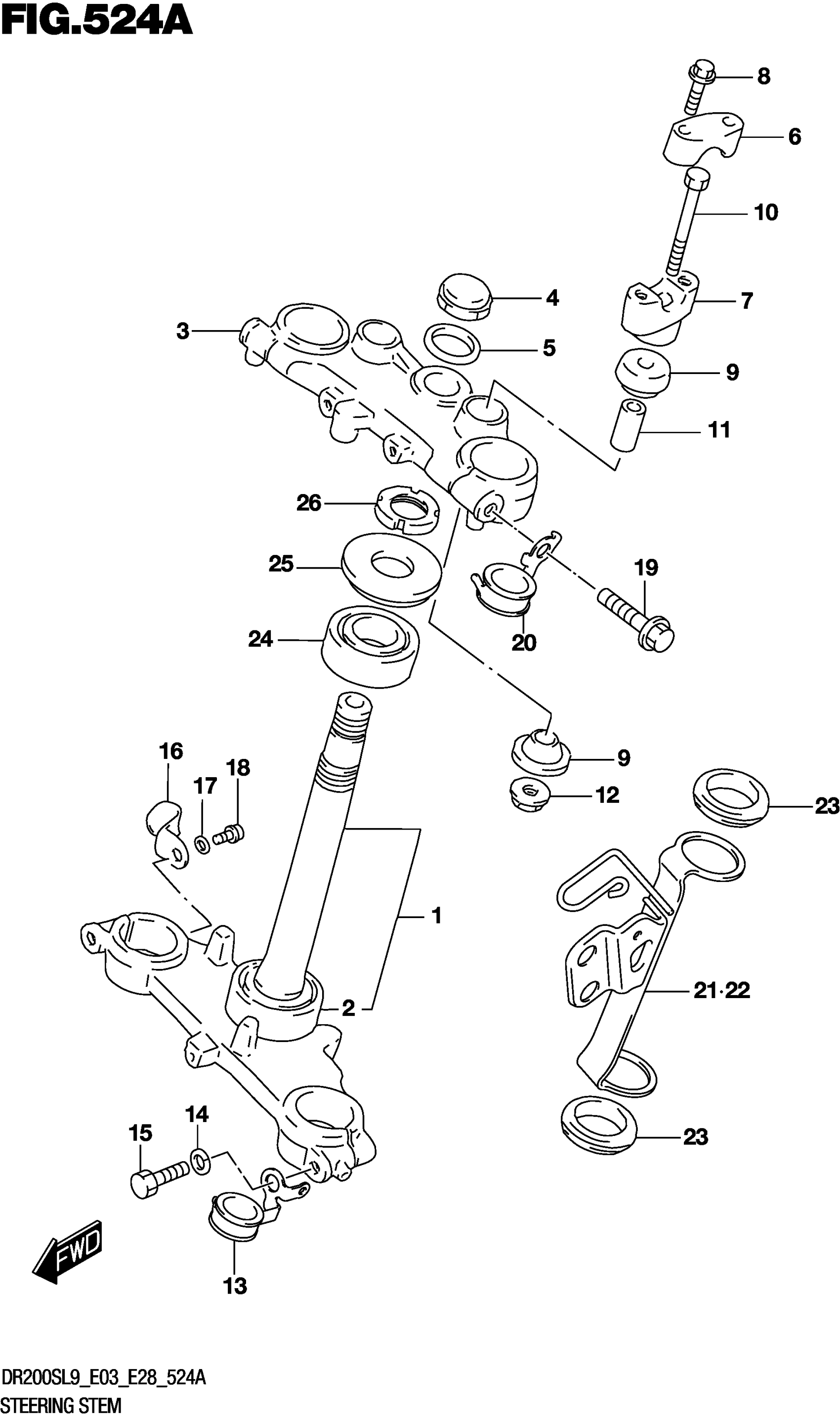

Suzuki DR200SL9 (2019) STEERING STEM Diagram

#

Description
Price

1

STEM

51410-42AA0

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

HEAD

51311-42AA0-291

Unavailable

4

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$30.67

5

WASHER

51354-14D00

$12.08

6

HOLDER,HANDLE UPPER (BLACK)

56211-27200-291

$17.90

7

HOLDER

56221-42A00

Unavailable

8

BOLT (8X35)

01550-0835B

$3.95

9

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$30.47

10

BOLT

56321-27E00

$11.50

11

SPACER

56243-42A00

$8.03

12

NUT

51353-42AA0

$4.33

13

CLAMP

59270-49J00

$23.38

14

WASHER

08321-21115

Unavailable

15

BOLT

51451-42A00

Unavailable

16

CLIP

51452-05130

Unavailable

17

WASHER

08321-01067

$2.13

18

SCREW

02112-06087

$1.49

19

BOLT

01550-1045B

$4.77

20

CLAMP

59260-49J00

Unavailable

21

BRACKET

51530-49J00

Unavailable

22

BRACKET

51540-49J00

Unavailable

23

CUSHION

51553-34280

$5.50

24

BEARING (25X47X15)

09265-25019

$56.53

25

SEAL,STEERING UPR DUST

51643-01B10

$11.07

26

NUT,STEERING

51631-08D30

Unavailable
