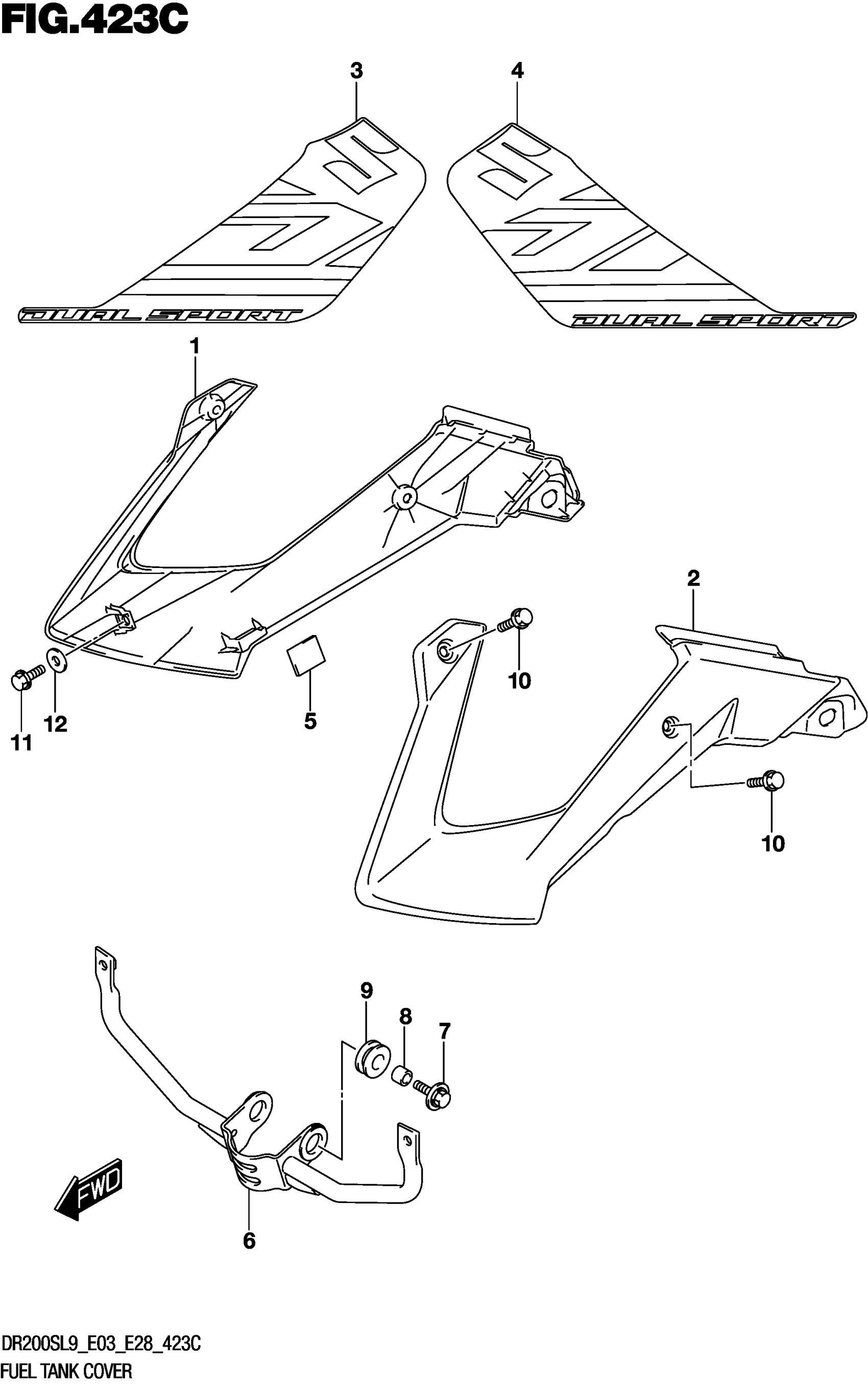

Suzuki DR200SL9 (2019) FUEL TANK COVER (DR200SL9 E33) Diagram

#

Description
Price

1

COVER

44271-49J00-30H

$38.05

2

COVER

44281-49J00-30H

$38.05

3

TAPE, FUEL TANK COVER RH

68665-49J10-BTC

Unavailable

4

TAPE, FUEL TANK COVER LH

68675-49J10-BTC

$57.53

5

CUSHION,TANK COVER LWR NO.1

44555-33H00

$11.47

6

BRACE

44160-49J00

Unavailable

7

BOLT (6X25)

09116-06186

$2.61

8

SPACER (6.5X9X13.5)

09180-06268

$2.19

9

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.86

10

SCREW (6X10)

09139-06172

$3.04

11

SCREW (6X16)

09139-06139

$3.23

12

WASHER (6.3X16X1)

09169-06053

$1.49
