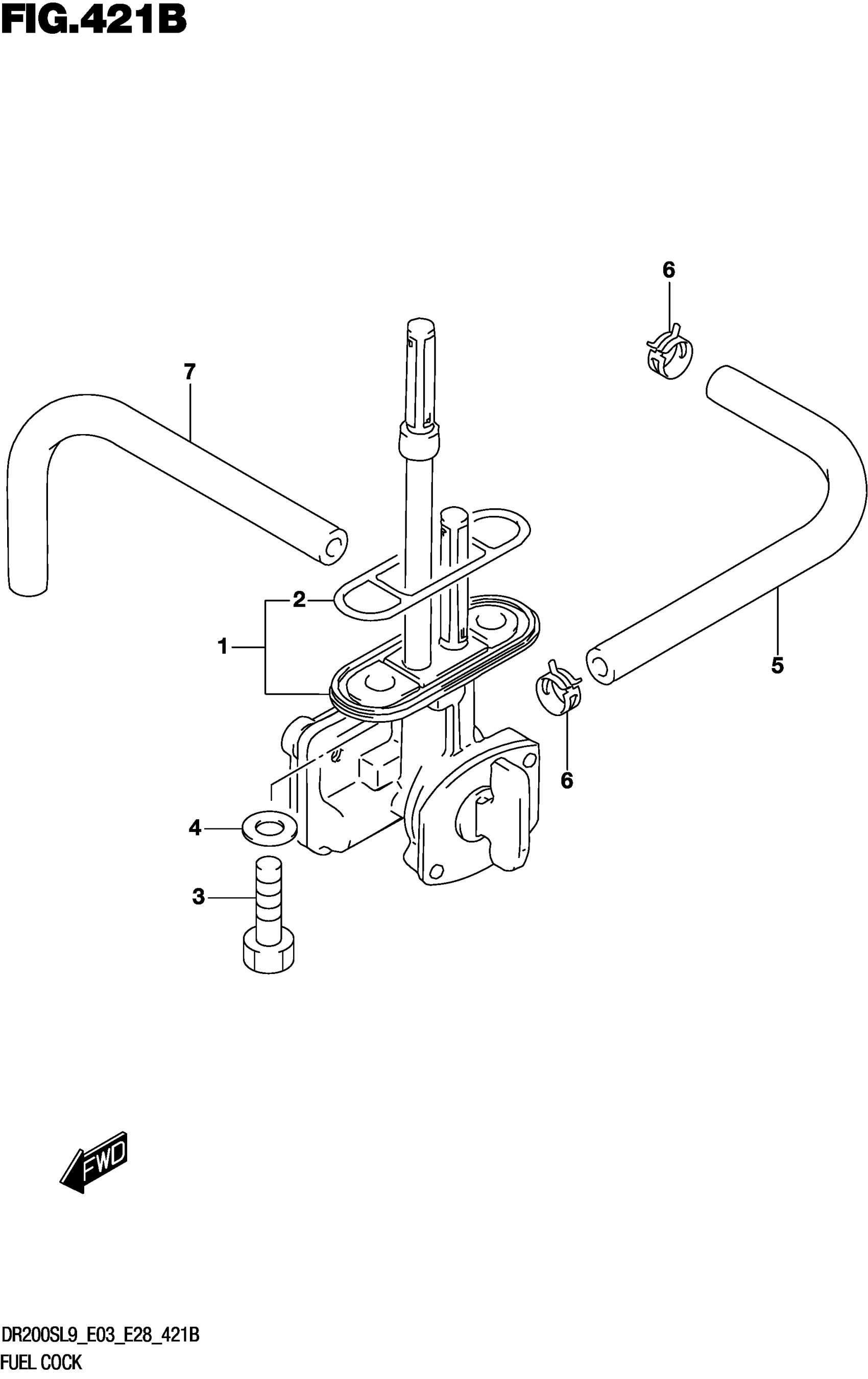

Suzuki DR200SL9 (2019) FUEL COCK (DR200SL9 E28) Diagram

#

Description

Price

1

COCK ASSY,FUEL This part replaces 44300-44AB0.

44300-44AB1

$102.73

2

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$5.35

3

BOLT This part replaces 09128-06006.

09128-06057

$1.65

4

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

5

HOSE (5X10X150)

09355-50109-150

$10.75

6

CLIP (ID:9.4,H:8)

09401-09403

$2.03

7

HOSE

44425-49J00

$11.25
