2019 Suzuki DR200SL9 Frame Cover Diagram

← All diagrams

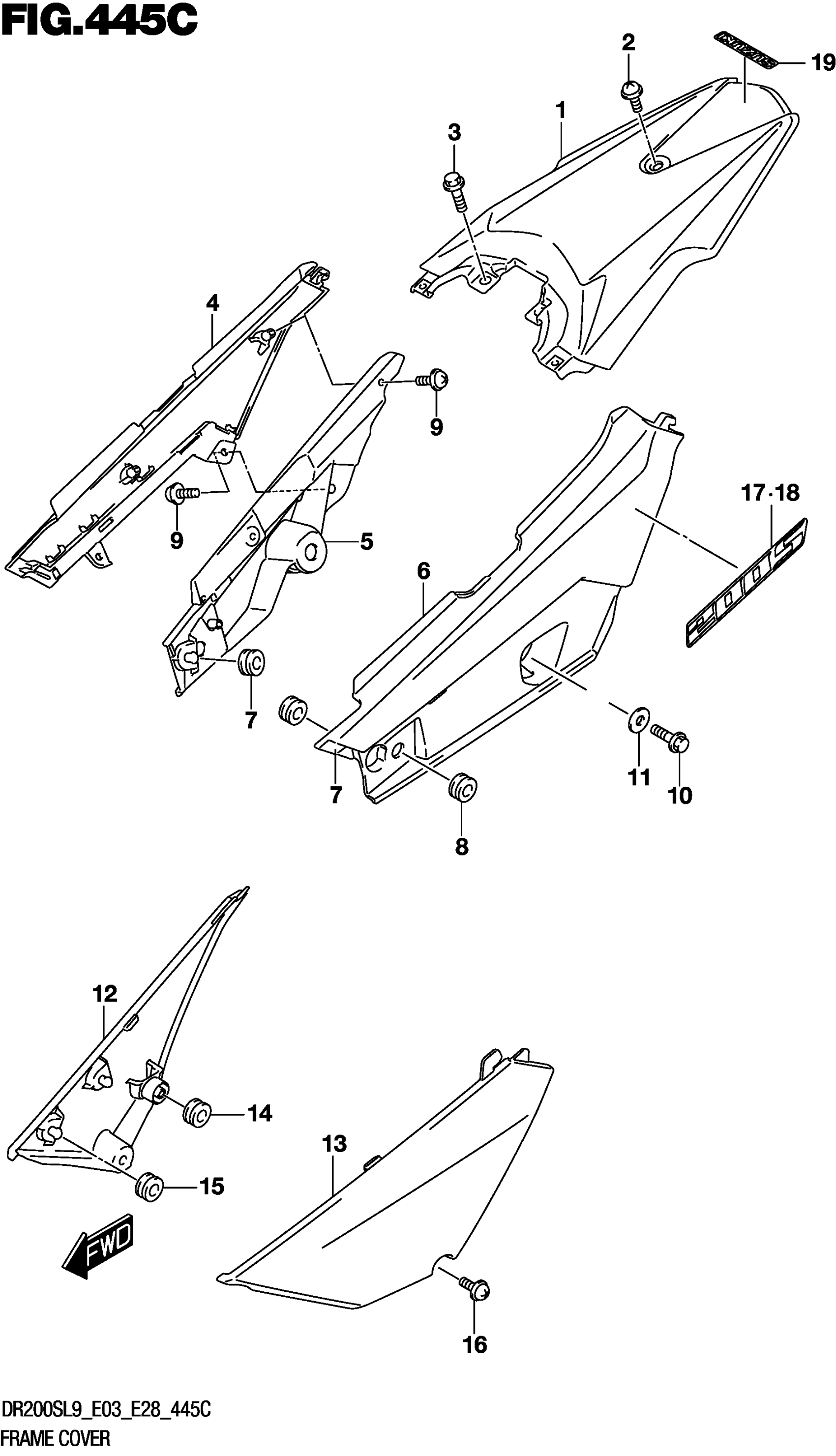

Find the part on the Frame Cover diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR200SL9 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

47311-49J00-30H

1

$103.28

In stock

2

SCREW (6X12)

09139-06188

1

$4.03

In stock

3

BOLT

01550-0612A

2
Out of stock

4

COVER

47121-49J00-30H

1

$90.82

In stock

5

COVER

47131-49J00

1

$41.68

In stock

6

COVER

47221-49J00-30H

1

$90.82

In stock

7

CUSHION (8x26x7)

09320-08018

2
Out of stock

8

CUSHION (8X26X7)

09320-08028

2
Out of stock

9

SCREW

03541-0516A

4
Out of stock

10

BOLT (8X25)

09135-08012

2

$1.56

In stock

11

WASHER

09169-08045

2

$2.56

In stock

12

COVER

47111-49J00-30H

1

$97.18

In stock

13

COVER

47211-49J00-30H

1

$97.18

In stock

14

CUSHION (9X26X14)

47161-08G00

1

$10.88

In stock

15

CUSHION

09320-08029

2
Out of stock

16

SCREW (6X16)

09139-06169

2
Out of stock

17

(WHITE/SILVER)

68135-49J30-8WM

—
Out of stock

17

(WHITE/SILVER)

68135-49J30-8WM

—
Out of stock

18

EMBLEM, "200" LH

68145-49J30-8WM

—
Out of stock

18

EMBLEM, "200" LH

68145-49J30-8WM

—
Out of stock

19

1

$9.33

In stock
