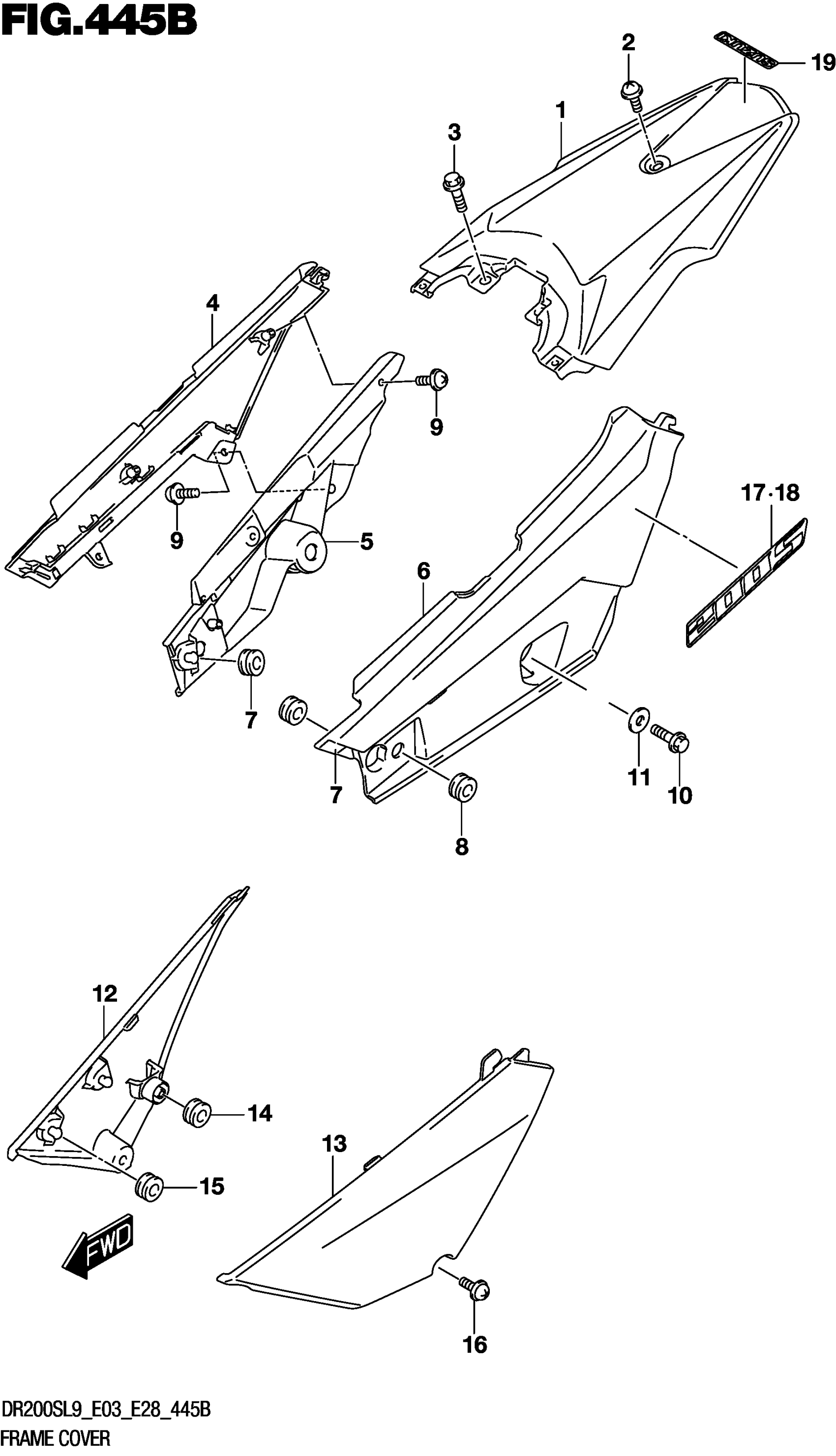

Suzuki DR200SL9 (2019) FRAME COVER (DR200SL9 E28) Diagram

#

Description
Price

1

COVER

47311-49J00-30H

$103.28

2

SCREW (6X12)

09139-06188

$4.03

3

BOLT

01550-0612A

$1.97

4

COVER

47121-49J00-30H

$90.82

5

COVER

47131-49J00

$41.68

6

COVER

47221-49J00-30H

$90.82

7

CUSHION (8x26x7)

09320-08018

$2.80

8

CUSHION (8X26X7)

09320-08028

$2.80

9

SCREW

03541-0516A

$1.37

10

BOLT (8X25)

09135-08012

$1.56

11

WASHER

09169-08045

$2.14

12

COVER

47111-49J00-30H

$97.18

13

COVER

47211-49J00-30H

$97.18

14

CUSHION (9X26X14)

47161-08G00

$10.88

15

CUSHION

09320-08029

$2.51

16

SCREW (6X16)

09139-06169

$2.80

17

(WHITE/SILVER)

68135-49J30-8WM

Unavailable

17

(WHITE/SILVER)

68135-49J30-8WM

Unavailable

18

EMBLEM, "200" LH

68145-49J30-8WM

Unavailable

18

EMBLEM, "200" LH

68145-49J30-8WM

Unavailable

19

EMBLEM,SUZUKI This part replaces 68171-28H00-019.

68171-28H01-019

$9.33
