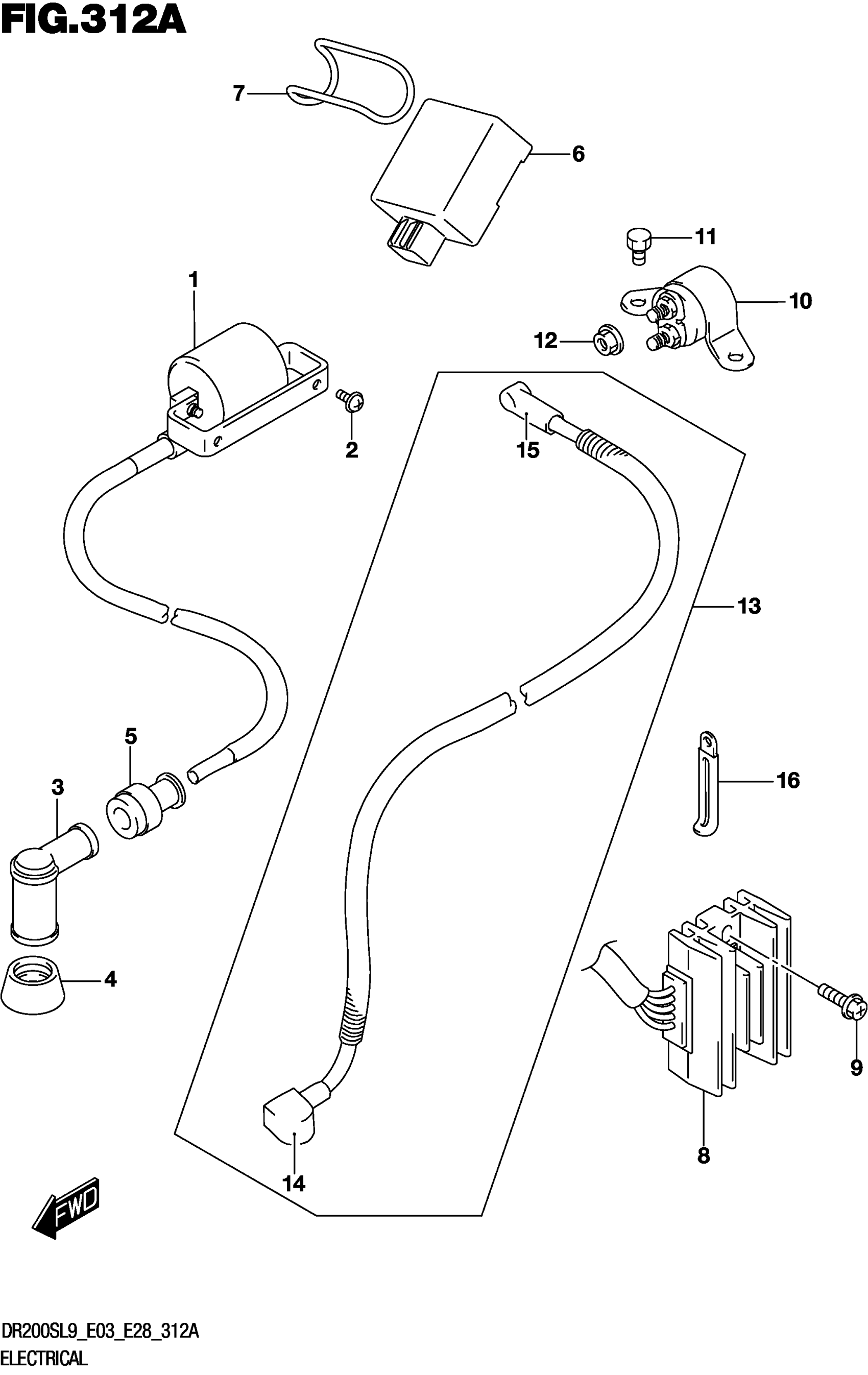

Suzuki DR200SL9 (2019) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY

33410-44A00

$129.03

2

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

4

SEAL,SPARK PLUG

33541-47D00

$7.83

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

6

CDI UNIT

32900-49J00

$428.30

7

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.60

8

RECTIFIER ASSY

32800-19B11

$227.68

9

SCREW

02162-0625B

$2.10

10

RELAY ASSY

31800-15501

$97.79

11

SCREW (6X10)

09128-06044

$1.49

12

NUT

08361-3506A

$1.80

13

WIRE

33810-44A00

$66.00

14

.CAP

31861-06C00

Unavailable

15

.CAP

31861-10D00

Unavailable

16

CLAMP (L:45)

09404-06429

$1.83
