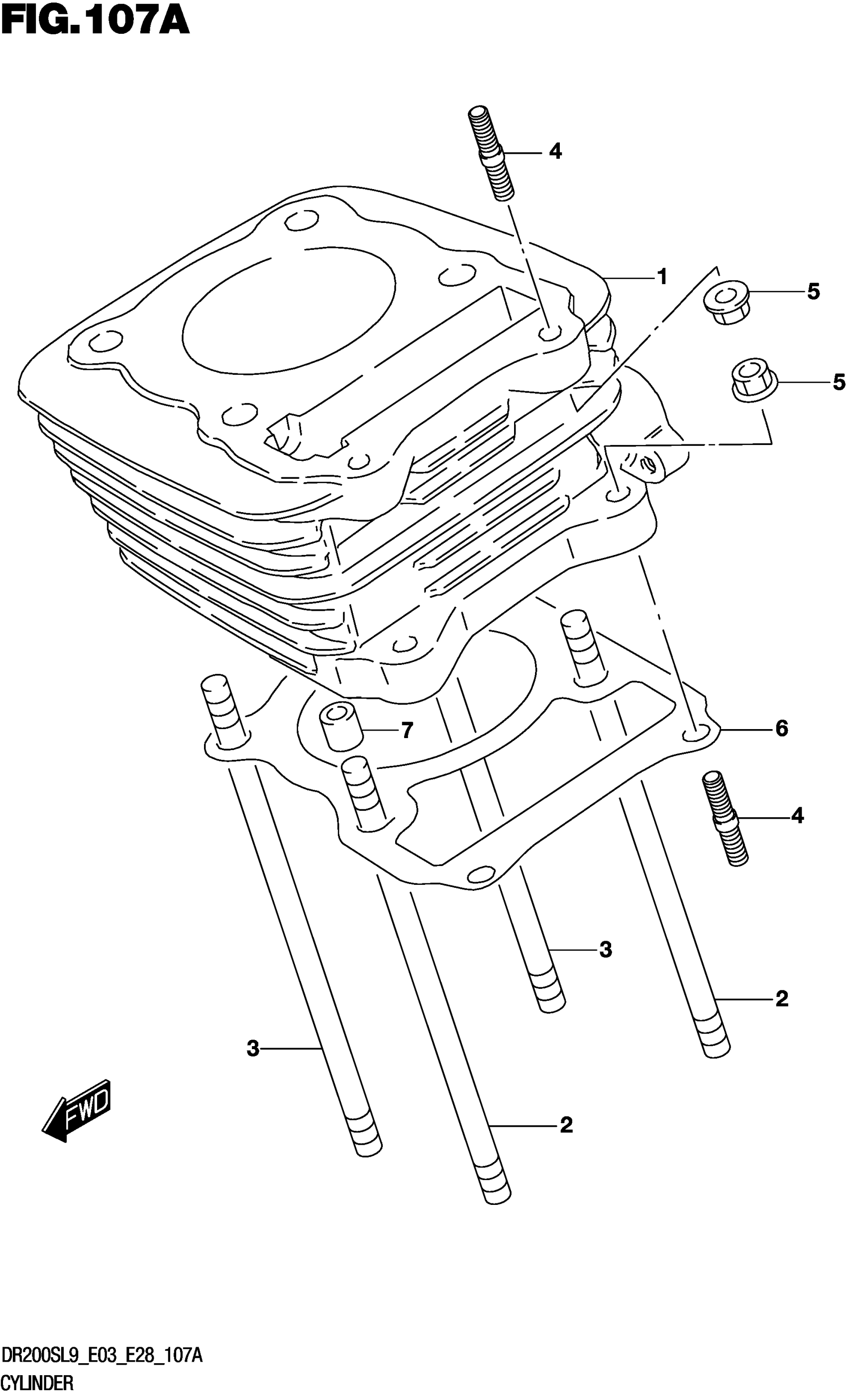

Suzuki DR200SL9 (2019) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-13G50-0F0

$548.47

2

STUD BOLT

09108-08195

$5.57

3

STUD BOLT (8X167)

09108-08184

$6.00

4

STUD BOLT

01421-0625A

$1.99

5

NUT (6X12)

08316-1006A

$2.19

6

.GASKET

11241-42A10

$5.48

7

PIN

04211-11149

$1.78
