2019 Suzuki DR200SL9 Crankshaft Diagram

← All diagrams

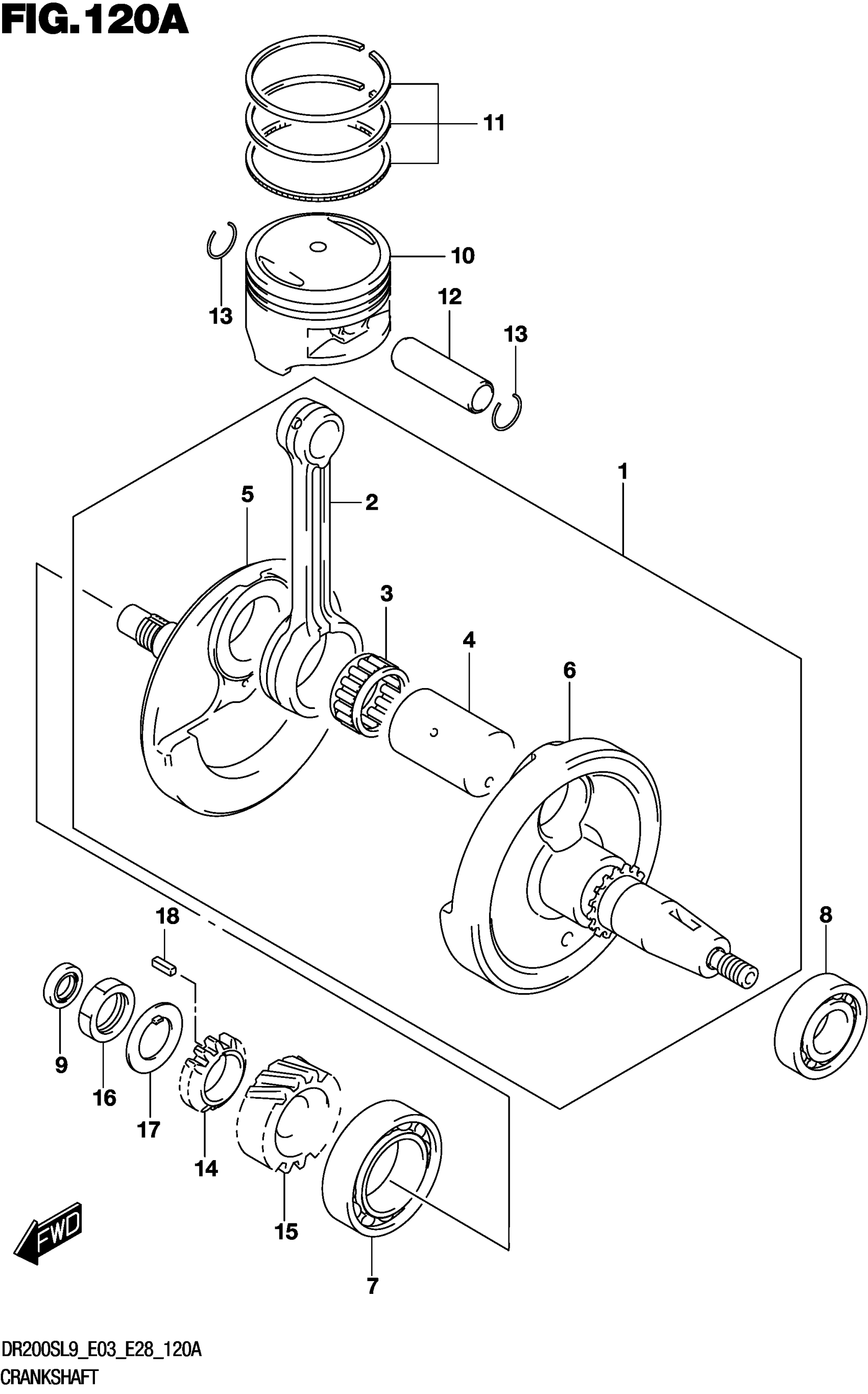

Find the part on the Crankshaft diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR200SL9 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-42A21

1
Out of stock

2

.ROD

12161-42A01

1
Out of stock

3

.BEARING (31X38X18)

09263-31008-0B0

1
Out of stock

4

.PIN

12210-42A01

1
Out of stock

5

.CRANKSHAFT RH

12221-42A02

1
Out of stock

6

.CRANKSHAFT LH

12261-42A20

1
Out of stock

7

BEARING (28X68X18) | RH

09262-28014

1
Out of stock

8

BEARING (35X72X17) | LH

09262-35038

1
Out of stock

9

OIL SEAL (12X21X7)

09282-12009

1
Out of stock

10

PISTON

12111-42A20-0F0

1
Out of stock

11

RING SET

12140-42A01

1
Out of stock

12

PIN

12151-22A02

1
Out of stock

13

CIRCLIP (OD:18)

09381-16001

2
Out of stock

14

GEAR

16321-42A00

1
Out of stock

15

GEAR

21111-42A01

1
Out of stock

16

NUT

09140-18004

1
Out of stock

17

WASHER

09166-18003

1
Out of stock

18

KEY

09421-04007

1
Out of stock
