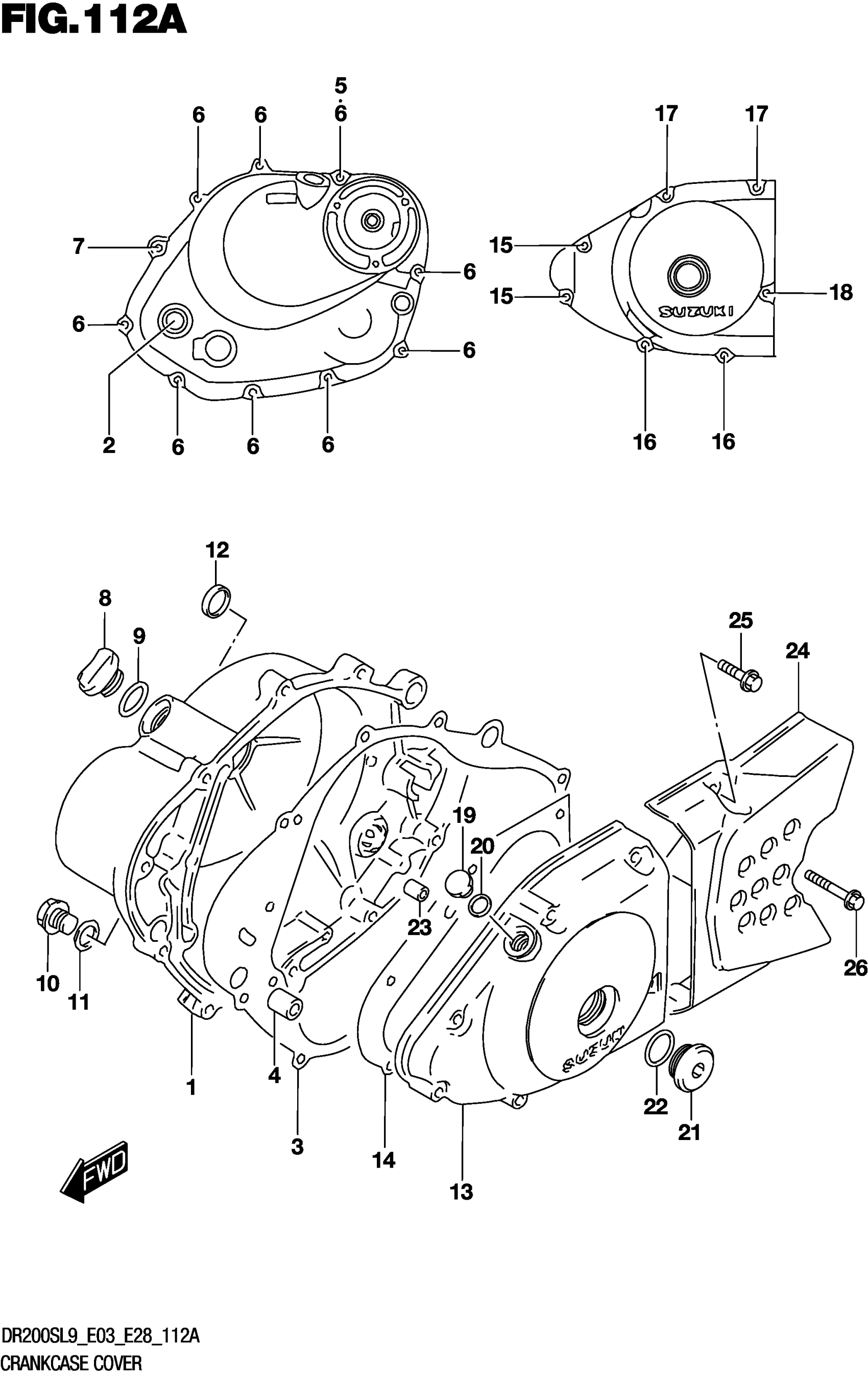

Find the part on the Crankcase Cover diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR200SL9 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-42A30

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

.GASKET, CLUTCH COVER

11482-05211

1
Out of stock

4

PIN (10.4X13X18)

04211-13189

2
Out of stock

5

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

6

BOLT

01547-0630A

9
Out of stock

7

BOLT

01547-0645A

1
Out of stock

8

PLUG (20X10)

09259-20019

1
Out of stock

9

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

10

PLUG (14X12)

09247-14026

1

$3.63

In stock

11

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

12

PLUG

11342-12C51

1
Out of stock

13

COVER

11351-42A30

1
Out of stock

14

.GASKET

11483-05312

1
Out of stock

15

BOLT

01547-0630A

2
Out of stock

16

BOLT

01547-0635A

2
Out of stock

17

BOLT

01547-0640A

2
Out of stock

18

BOLT

01547-0650A

1
Out of stock

19

PLUG (12X9)

09247-12104

1
Out of stock

20

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

21

PLUG (26X9)

09259-26011

1
Out of stock

22

O-RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

23

PIN

04211-09129

1
Out of stock

24

COVER

11360-42A20

1
Out of stock

25

BOLT

01547-0625A

2
Out of stock

26

BOLT

01547-0635A

1
Out of stock
