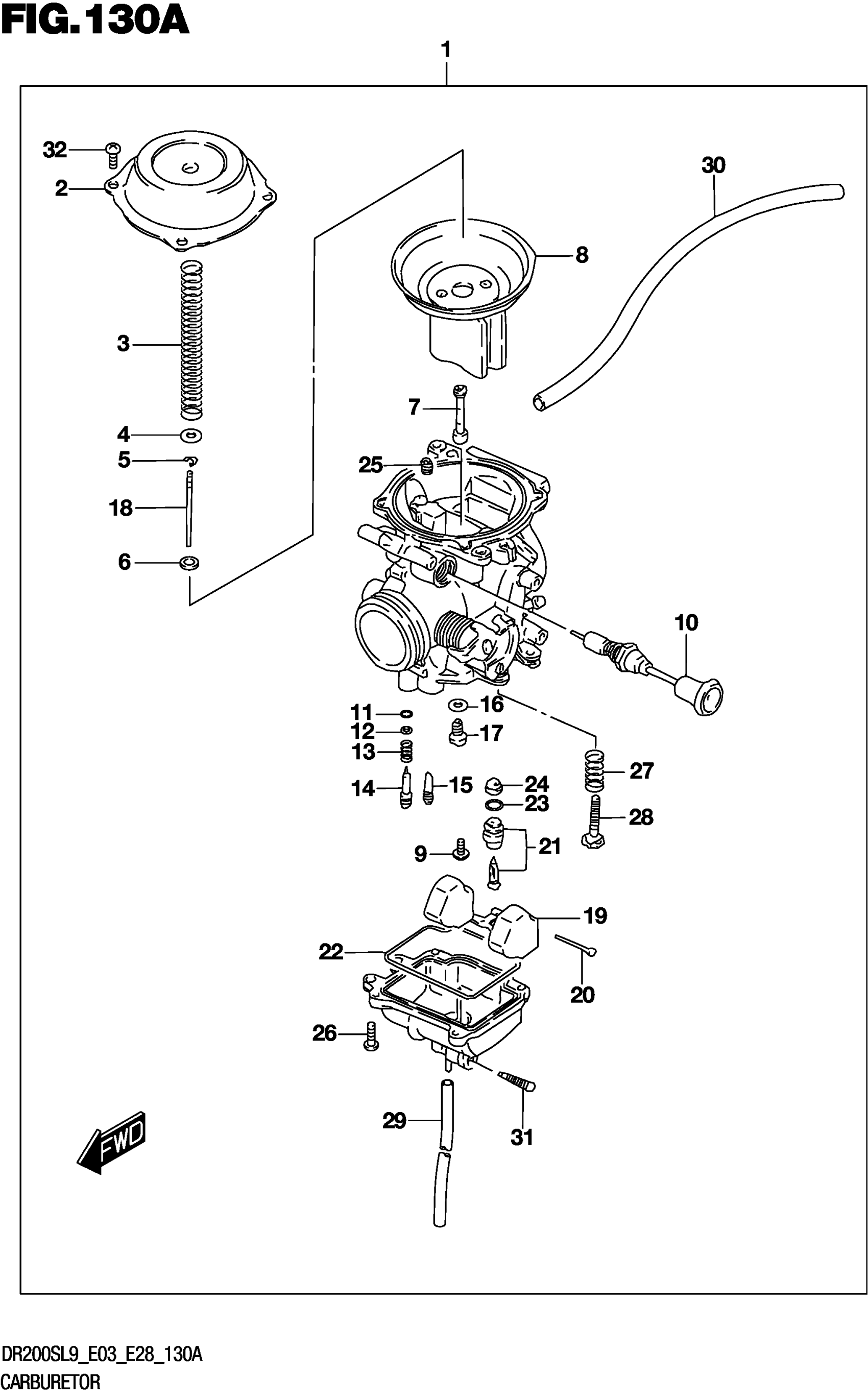

Suzuki DR200SL9 (2019) CARBURETOR (DR200SL9 E03) Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-42AC2

$540.00

2

.COVER

13502-42A00

$38.47

3

.SPRING

13417-42A00

$6.79

4

.RING

13382-42A00

$4.48

5

.CLIP

13394-10010

$5.45

6

.RING

13387-47010

$7.22

7

.JET

09494-00881

$53.92

8

DIAPHRAGM ASSY This part replaces 13500-42A00.

13500-42A01

$170.83

9

.SCREW

13602-43410

$2.92

10

.PLUNGER ASSY

13411-42A20

$38.78

11

O-RING This part replaces 13295-29900.

13295-29901

$4.34

12

.WASHER (14X17)

13291-29900

$1.98

13

.SPRING (NT:45)

13268-47070

$4.34

14

.SCREW,PILOT (1 1/2)

13279-47070

$13.36

15

.JET

09492-35008

$9.32

16

.WASHER

13382-03110

$2.80

17

.JET

09491-25010

$11.02

18

.NEEDLE

13383-42AC0

$16.28

19

.FLOAT

13250-42A00

$34.08

20

.PIN,FLOAT

13254-92311

$2.07

21

.VALVE ASSY

13370-44500

$50.98

22

.O RING

13251-42A00

$9.03

23

.O RING

13374-35C00

$5.99

24

.FILTER

13376-19F00

$10.28

25

.JET

09493-27001

$16.87

26

SCREW This part replaces 13602-05A40.

02112-0412A

$1.49

27

.SPRING THROTTLE SCREW

13268-37420

$5.32

28

.ADJUSTER

13267-25D00

$14.20

29

.HOSE (3X7X600) | L:600->400 This part replaces 09355-30705-600.

09355-30001-600

$8.56

30

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

31

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

32

.SCREW

02112-0408A

$1.49
