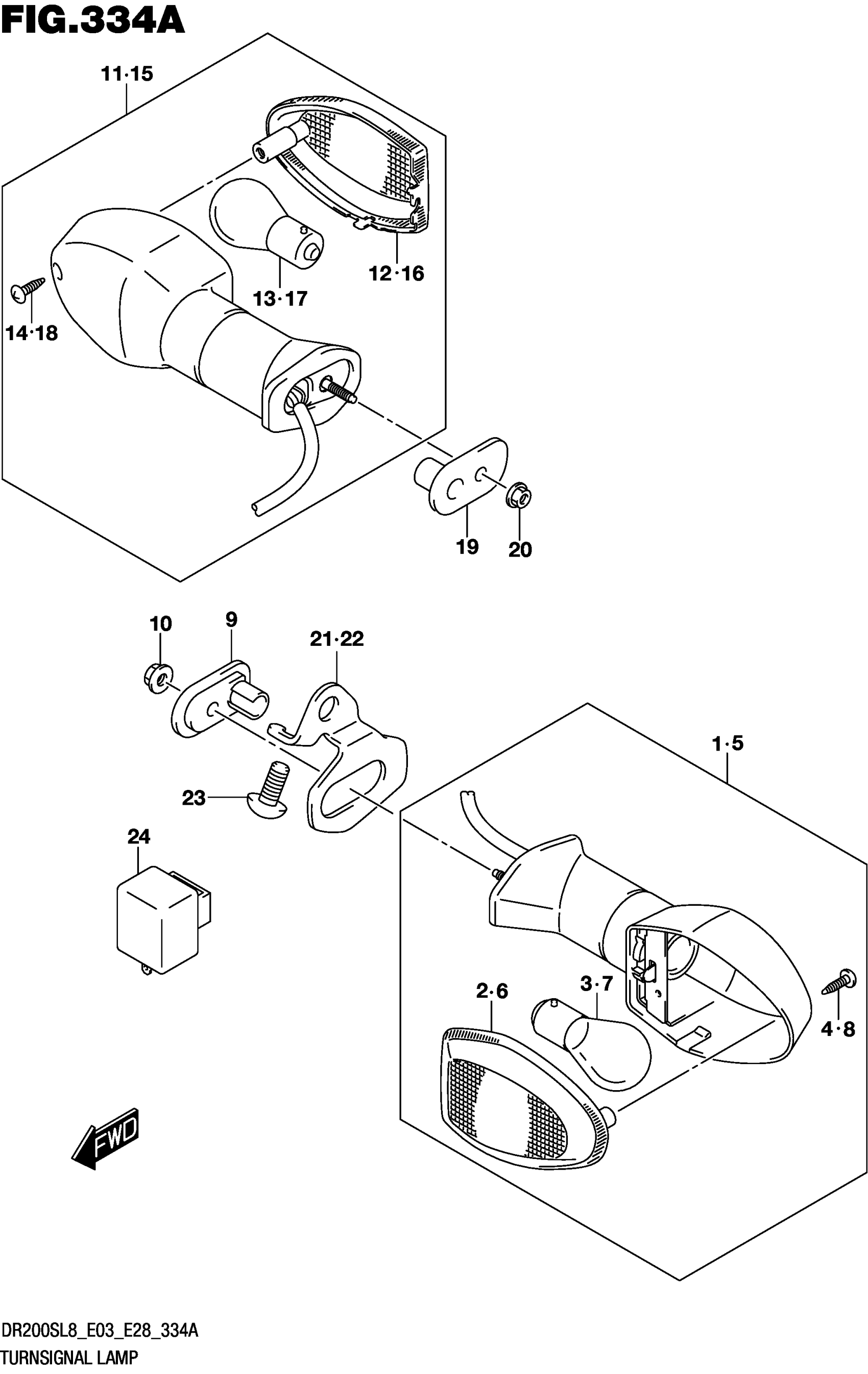

Suzuki DR200SL8 (2018) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL RH

35601-08J11

$114.18

2

.LENS,TURNSIGNAL

35612-08J01

$13.82

3

.BULB (12V21W)

09471-12045

$2.95

4

.SCREW

03211-0414B

$1.93

5

LAMP ASSY,FR TURN SIGNAL LH

35602-08J11

$118.53

6

.LENS,TURNSIGNAL

35632-08J01

$13.65

7

.BULB (12V21W)

09471-12045

$2.95

8

.SCREW

03211-0414B

$1.93

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

10

NUT

08316-1005A

$2.19

11

LAMP ASSY

35603-08J01

$120.15

12

.LENS,TURNSIGNAL

35632-08J01

$13.65

13

.BULB (12V21W)

09471-12045

$2.95

14

.SCREW

03211-0414B

$1.93

15

LAMP ASSY

35604-08J01

$120.15

16

.LENS,TURNSIGNAL

35612-08J01

$13.82

17

.BULB (12V21W)

09471-12045

$2.95

18

.SCREW

03211-0414B

$1.93

19

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

20

NUT

08316-1005A

$2.19

21

BRACKET

47411-49J00

$6.06

22

BRACKET

47421-49J00

$11.02

23

SCREW

02142-0508A

$1.38

24

RELAY ASSY

38610-31X50

$90.45
