2018 Suzuki DR200SL8 Headlamp Cover Diagram

← All diagrams

Find the part on the Headlamp Cover diagram for your 2018 Suzuki DR200SL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

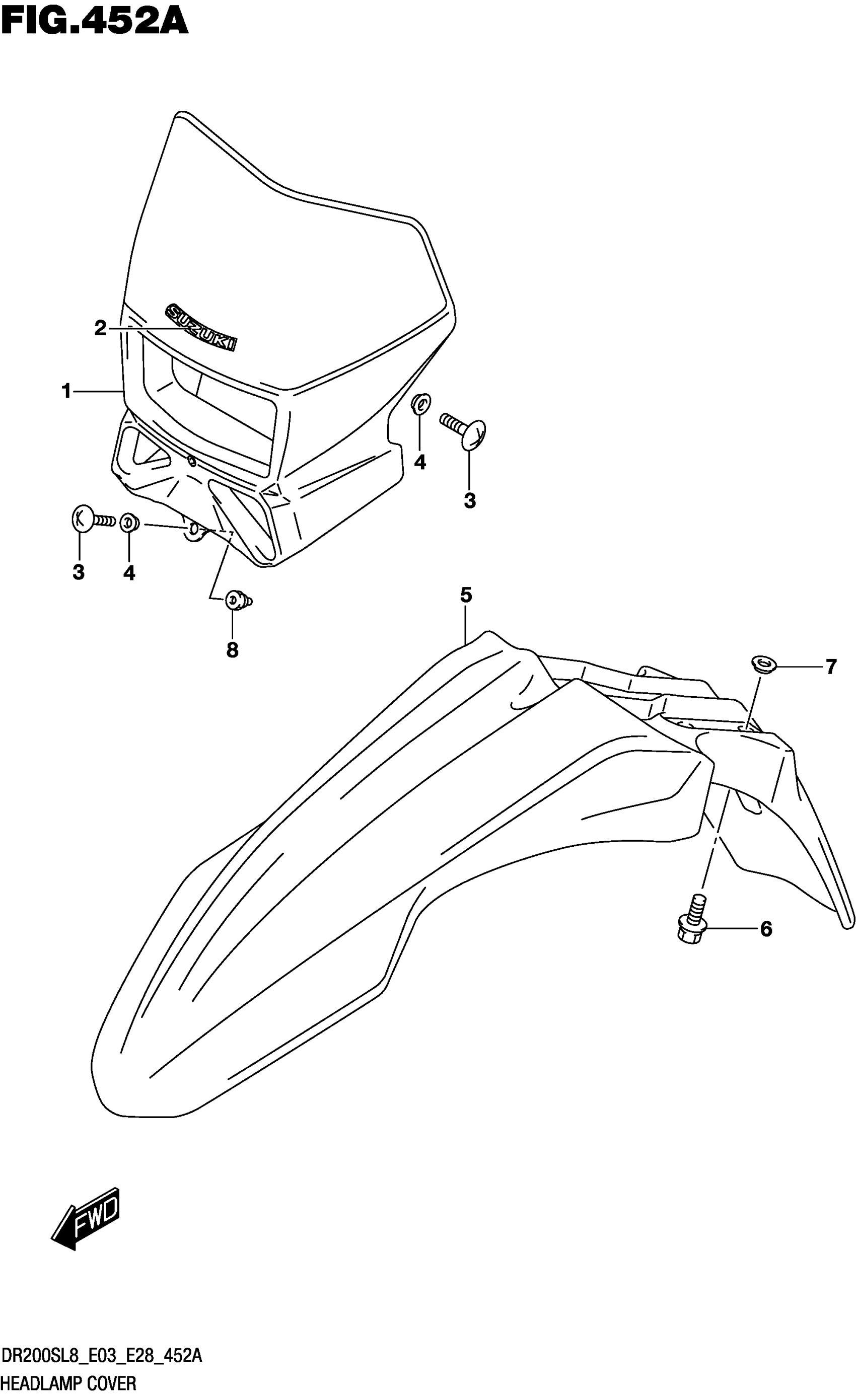

2018 Suzuki DR200SL8 Headlamp Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$126.40

In stock

1

1

$126.40

In stock

2

EMBLEM

68131-49J00-YHG

1
Out of stock

3

SCREW

02142-0612A

3
Out of stock

4

WASHER

09169-06071

3
Out of stock

5

FENDER | FOR 30H

53111-49J00-30H

1
Out of stock

5

FENDER | FOR YU1

53111-49J00-YU1

1
Out of stock

6

BOLT (6X16)

09116-06170

4

$2.68

In stock

7

WASHER (6.1X17.0X4.8)

09169-06073

4
Out of stock

8

BOLT

51812-49J00

1
Out of stock
