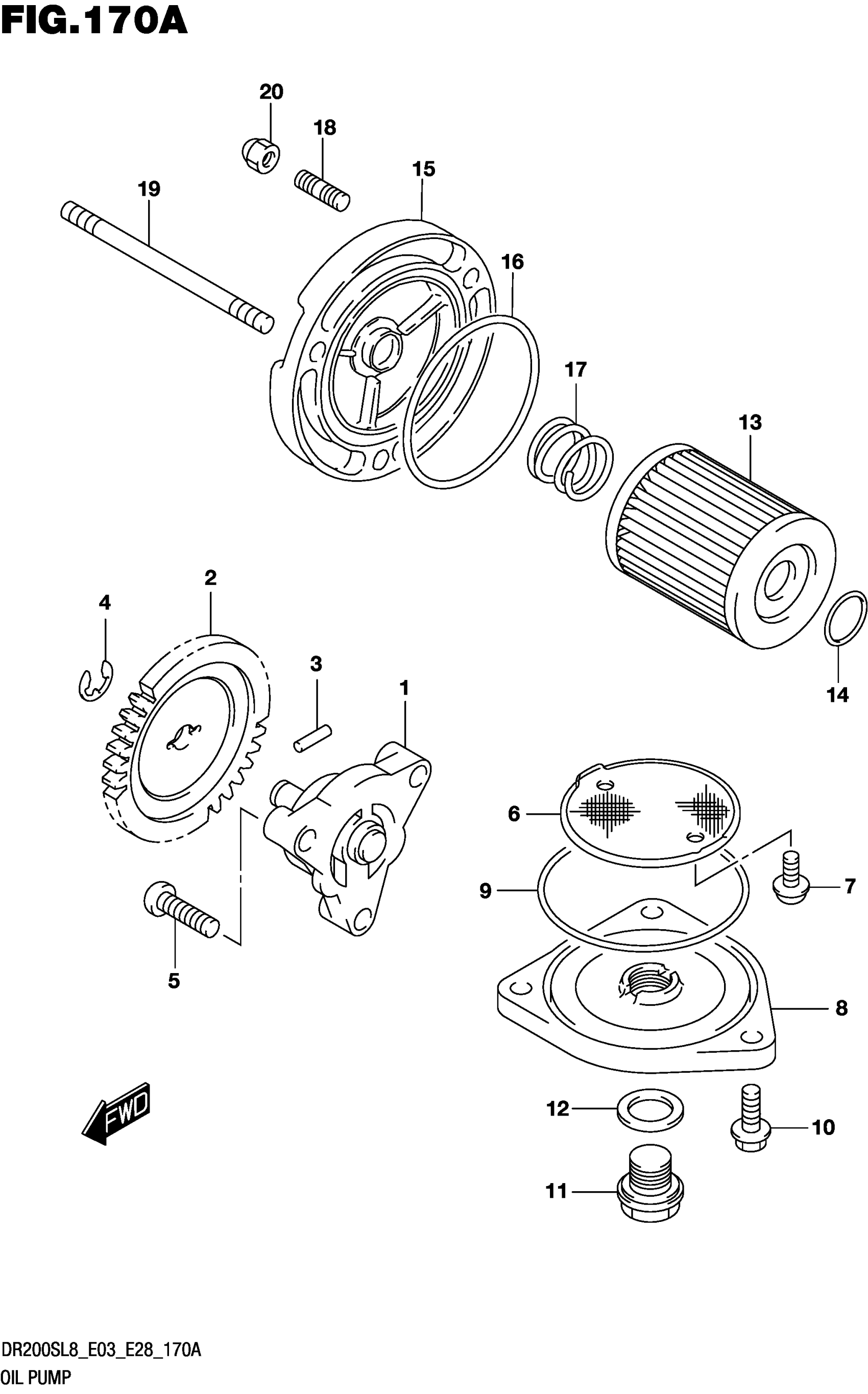

Suzuki DR200SL8 (2018) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-42A01

$156.07

2

GEAR

16331-35C00

Unavailable

3

PIN (2.5X11.8)

09261-02008

$1.65

4

E-RING

08332-1106A

$1.49

5

SCREW

02112-0625A

$1.80

6

STRAINER, ENGINE OIL

16520-05202

$5.80

7

SCREW

02112-7512A

$2.42

8

CAP, OIL STR

16523-05200

$14.26

9

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

10

BOLT

01547-0620A

$2.03

11

PLUG (14X12) | OIL DRAIN

09247-14026

$3.76

12

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

13

FILTER ASSY, ENG OIL

16510-25C00

$7.80

14

.O-RING (D:1.9,ID:13)

09280-13004

$2.17

15

CAP, OIL FILTER

16512-42A20

$32.88

16

.O-RING (D:2.4,ID:52.6)

09280-54001

$3.76

17

SPRING (L:14.5)

09440-18002

$1.49

18

STUD BOLT

09108-06123

$3.10

19

STUD BOLT (L:90)

09108-06108

$3.76

20

NUT

08313-1006A

$1.84
