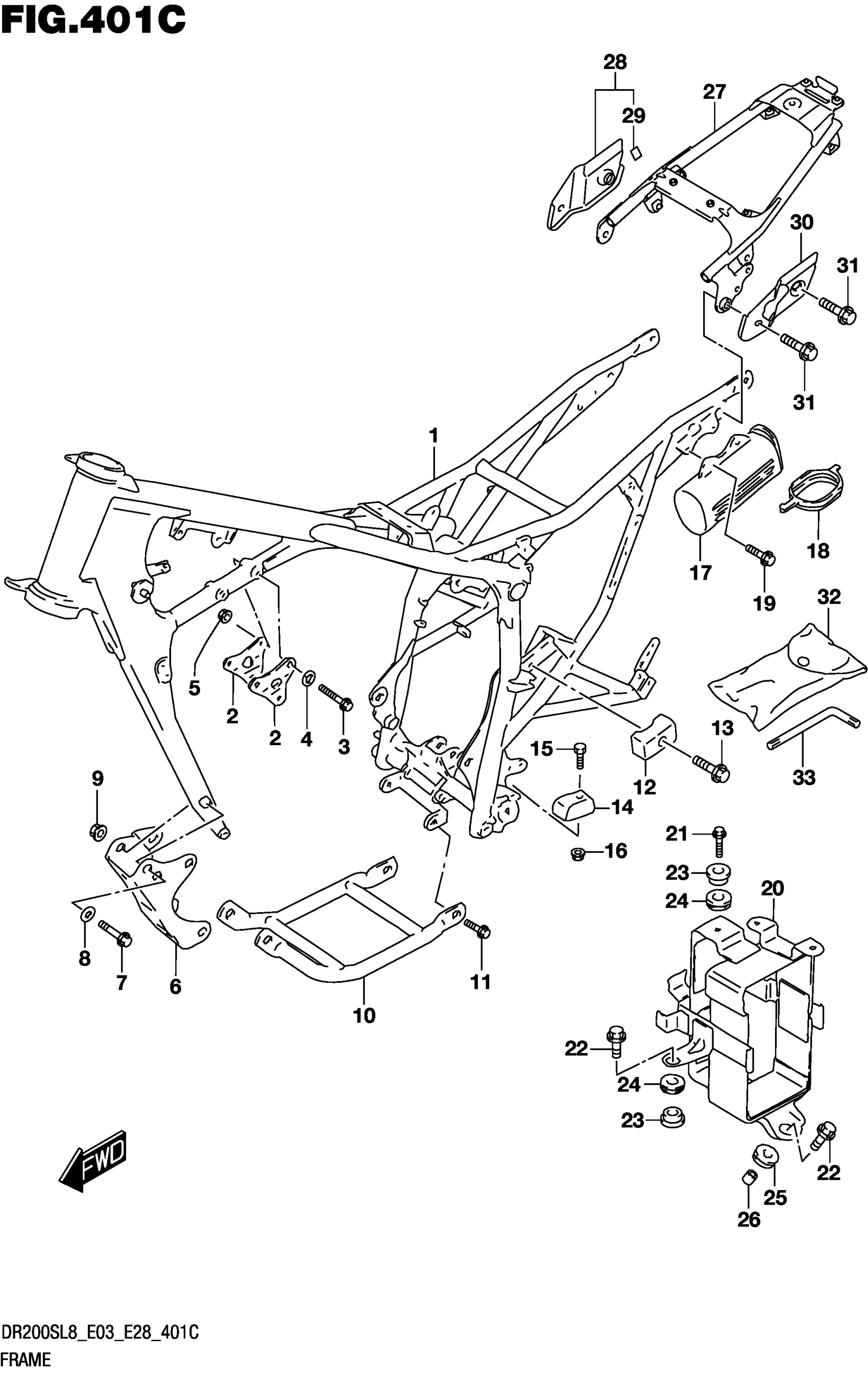

Suzuki DR200SL8 (2018) FRAME (DR200SL8 E33) Diagram

#

Description
Price

1

FRAME (GRAY)

41100-44AP0-YPT

$2,296.65

2

PLATE

41991-42A00-291

$17.40

3

BOLT (8X53)

09103-08332

$5.00

4

WASHER

08321-0108A

$1.83

5

NUT

08319-3108A

$2.31

6

PLATE

41992-44AA1-YPT

Unavailable

7

BOLT (8X70) This part replaces 09103-08293.

09103-08569

$5.32

8

WASHER

08321-0108A

$1.83

9

NUT

08319-3108A

$2.31

10

PROTECTOR

42510-44AA0-YPT

Unavailable

11

BOLT

01550-1016A

$2.84

12

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$17.82

13

BOLT

01580-0635B

$4.35

14

GUIDE

43912-42AA0

$33.12

15

BOLT This part replaces 09128-06006.

09128-06057

$1.64

16

NUT

08319-3106B

$2.47

17

HOLDER

41551-38201

$46.98

18

.CAP, TOOL HOLDER

41552-37210

$9.21

19

BOLT (6X16)

09116-06165

$3.30

20

HOLDER

41540-44AA0

Unavailable

21

BOLT (6X20)

01550-0620A

$1.97

22

BOLT (6X25)

09116-06047

Unavailable

23

WASHER (8.5X20X8)

09169-06065

$4.70

24

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

25

CUSHION | LH

09320-10501

$4.85

26

SPACER (6.5X10X9) | LH

09180-06285

$2.63

27

RAIL

41200-49J00

Unavailable

28

PLATE

42650-49J00

Unavailable

29

.CUSHION

94417-48B14

$2.50

30

PLATE

42661-49J00

Unavailable

31

BOLT (8X20)

09106-08106

$2.80

32

TOOL ASSY This part replaces 09800-21022.

09800-21104

$37.07

33

SPANNER,HEXAGON (5)

09816-00059

$9.18
