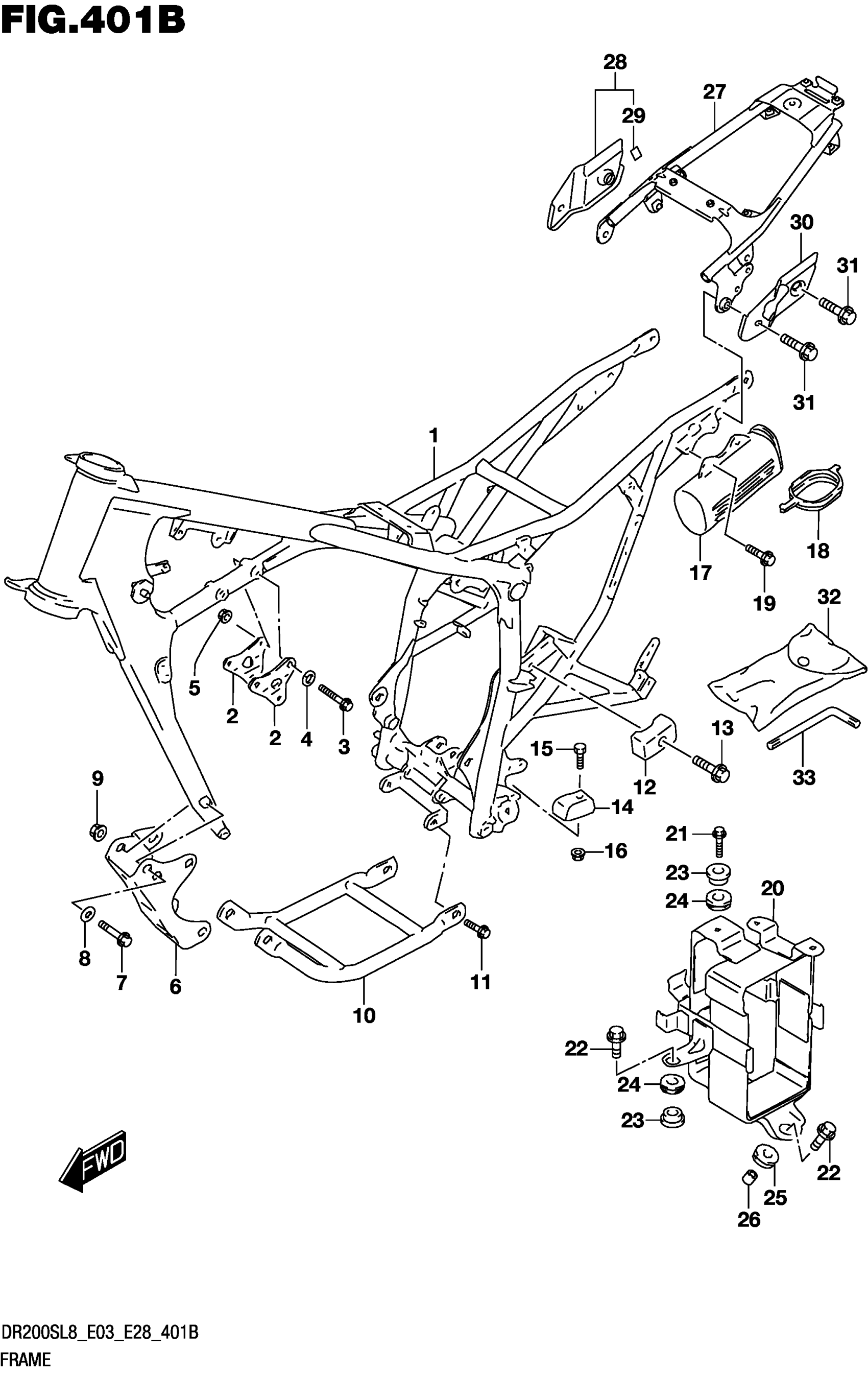

Find the part on the Frame diagram for your 2018 Suzuki DR200SL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DR200SL8 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (GRAY)

41100-44AL0-YPT

1
Out of stock

2

PLATE

41991-42A00-291

2
Out of stock

3

BOLT (8X53)

09103-08332

2
Out of stock

4

WASHER

08321-0108A

2

$1.99

In stock

5

NUT

08319-3108A

2
Out of stock

6

PLATE

41992-44AA1-YPT

—
Out of stock

7

BOLT (8X70) This part replaces 09103-08293.

09103-08569

2
Out of stock

8

WASHER

08321-0108A

2

$1.99

In stock

9

NUT

08319-3108A

2
Out of stock

10

PROTECTOR

42510-44AA0-YPT

—
Out of stock

11

BOLT

01550-1016A

2

$3.06

In stock

12

1

$17.82

In stock

13

BOLT

01580-0635B

1
Out of stock

14

GUIDE

43912-42AA0

1
Out of stock

15

BOLT This part replaces 09128-06006.

09128-06057

1
Out of stock

16

NUT

08319-3106B

1
Out of stock

17

HOLDER

41551-38201

1
Out of stock

18

.CAP, TOOL HOLDER

41552-37210

1
Out of stock

19

BOLT (6X16)

09116-06165

2

$3.30

In stock

20

HOLDER

41540-44AA0

1
Out of stock

21

BOLT (6X20)

01550-0620A

1
Out of stock

22

BOLT (6X25)

09116-06047

2
Out of stock

23

WASHER (8.5X20X8)

09169-06065

2
Out of stock

24

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

25

CUSHION | LH

09320-10501

1
Out of stock

26

SPACER (6.5X10X9) | LH

09180-06285

1
Out of stock

27

RAIL

41200-49J00

1
Out of stock

28

PLATE

42650-49J00

1
Out of stock

29

.CUSHION

94417-48B14

1
Out of stock

30

PLATE

42661-49J00

1
Out of stock

31

BOLT (8X20)

09106-08106

4
Out of stock

32

TOOL ASSY This part replaces 09800-21022.

09800-21104

1
Out of stock

33

SPANNER,HEXAGON (5)

09816-00059

1
Out of stock
