2018 Suzuki DR200SL8 Carburetor Diagram

← All diagrams

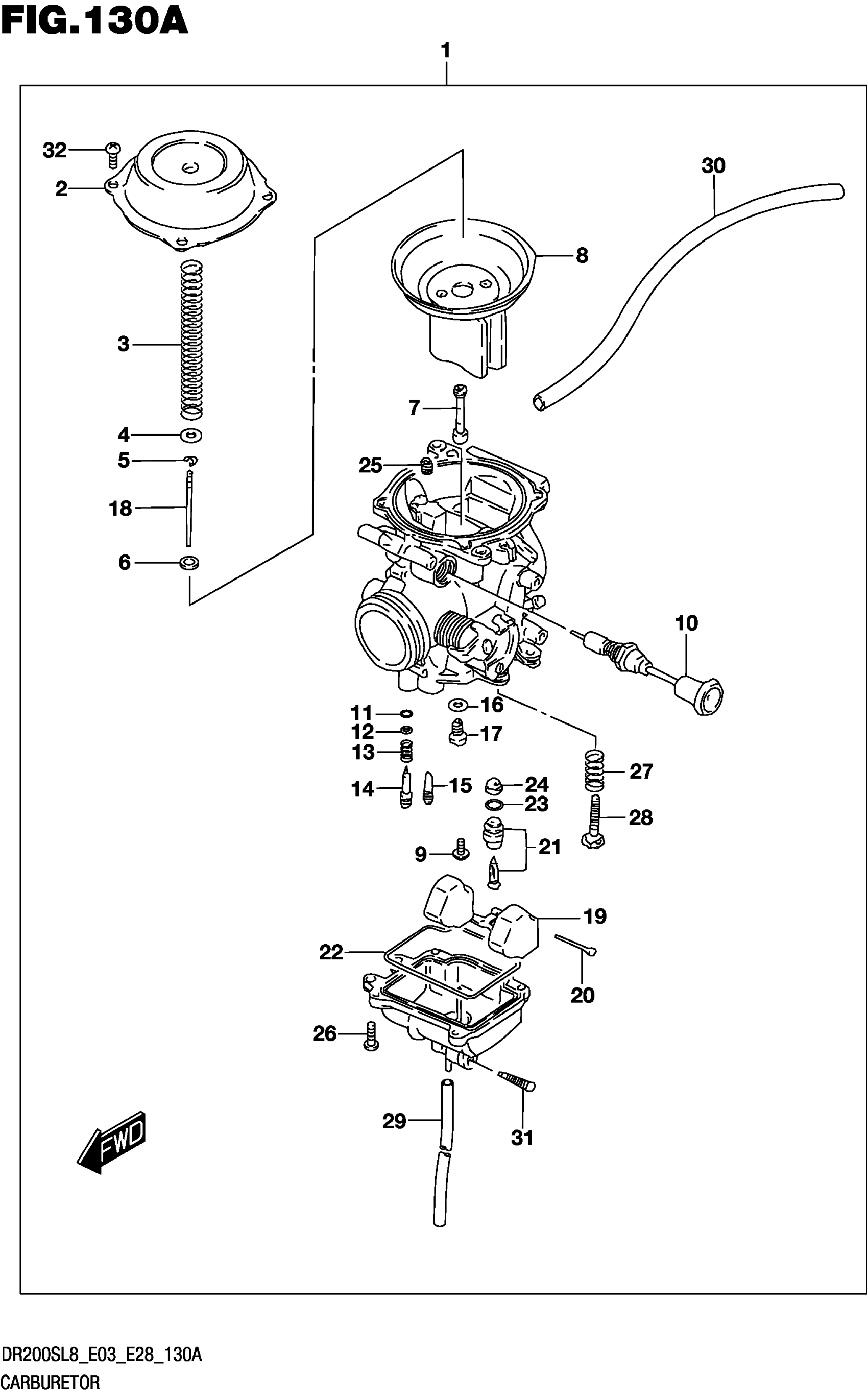

Find the part on the Carburetor diagram for your 2018 Suzuki DR200SL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DR200SL8 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

13200-42AC2

1
Out of stock

2

.COVER

13502-42A00

1
Out of stock

3

.SPRING

13417-42A00

1
Out of stock

4

.RING

13382-42A00

1
Out of stock

5

.CLIP

13394-10010

1
Out of stock

6

.RING

13387-47010

1
Out of stock

7

.JET

09494-00881

1
Out of stock

8

DIAPHRAGM ASSY This part replaces 13500-42A00.

13500-42A01

1
Out of stock

9

.SCREW

13602-43410

1
Out of stock

10

.PLUNGER ASSY

13411-42A20

1
Out of stock

11

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

12

.WASHER (14X17)

13291-29900

1
Out of stock

13

.SPRING (NT:45)

13268-47070

1
Out of stock

14

.SCREW,PILOT (1 1/2)

13279-47070

1
Out of stock

15

.JET

09492-35008

1
Out of stock

16

.WASHER

13382-03110

1
Out of stock

17

.JET

09491-25010

1
Out of stock

18

.NEEDLE

13383-42AC0

1
Out of stock

19

.FLOAT

13250-42A00

1
Out of stock

20

.PIN,FLOAT

13254-92311

1
Out of stock

21

.VALVE ASSY

13370-44500

1
Out of stock

22

.O RING

13251-42A00

1
Out of stock

23

.O RING

13374-35C00

1
Out of stock

24

.FILTER

13376-19F00

1
Out of stock

25

.JET

09493-27001

1
Out of stock

26

SCREW This part replaces 13602-05A40.

02112-0412A

4
Out of stock

27

.SPRING THROTTLE SCREW

13268-37420

1
Out of stock

28

.ADJUSTER

13267-25D00

1
Out of stock

29

.HOSE (3X7X600) | L:600->400 This part replaces 09355-30705-600.

09355-30001-600

1
Out of stock

30

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

31

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

1
Out of stock

32

.SCREW

02112-0408A

4
Out of stock
