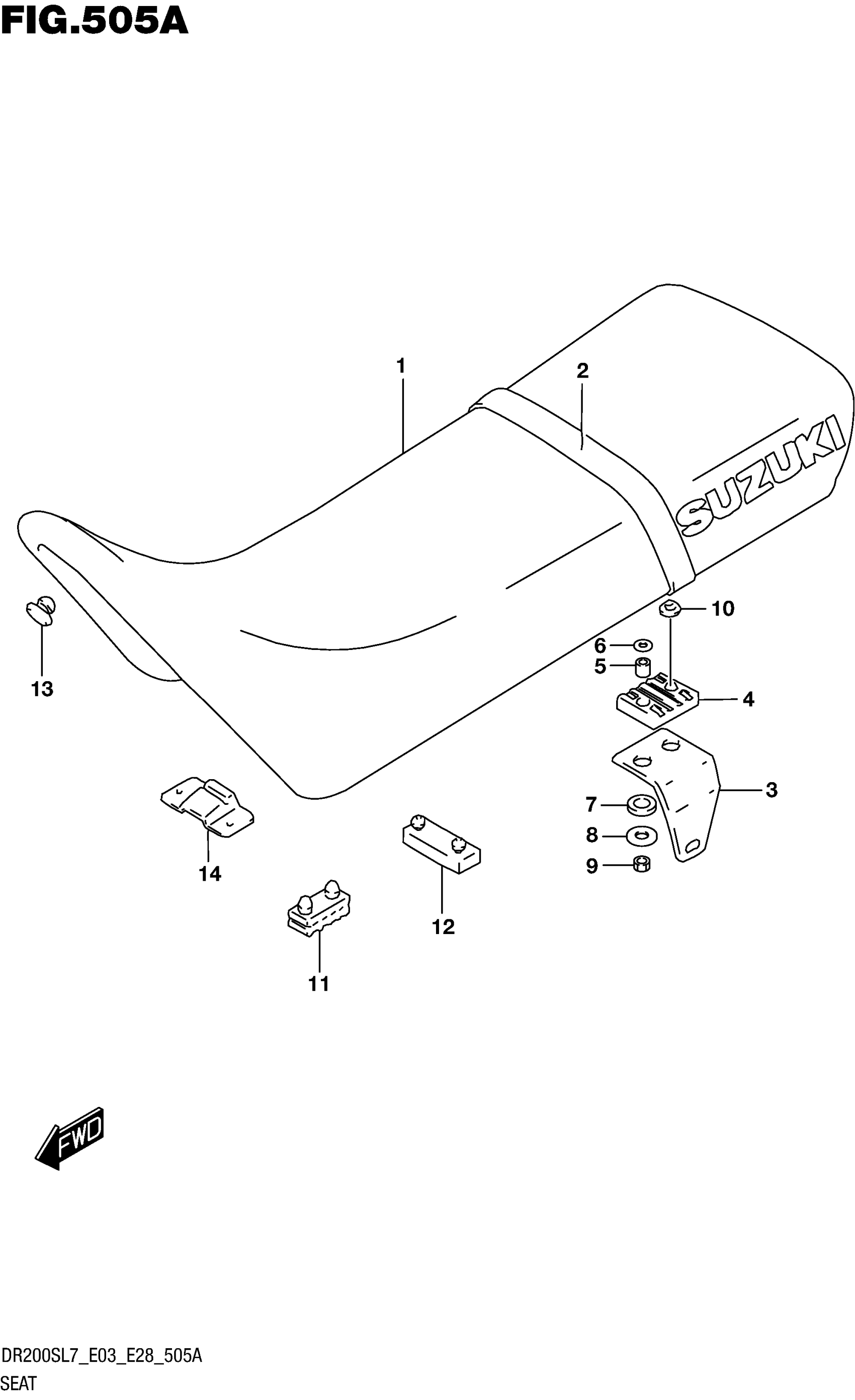

Suzuki DR200SL7 (2017) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK/SILVER)

45100-49J00-AX8

$299.18

2

.BAND, SEAT GRIP (BLACK)

45180-49J00-T5P

$21.65

3

.BRACKET, SEAT

45117-49J00

$9.77

4

.CUSHION, FRONT PLATE

45150-23450

$6.38

5

.SPACER, SEAT BRACKET

45219-49J00

$3.70

6

.WASHER (6.5X16X4)

09160-06131

$2.50

7

.CUSHION, SEAT FR

45147-23450

Unavailable

8

WASHER This part replaces 09160-06012.

09160-06054

$1.62

9

.NUT

08316-2006A

$2.63

10

WASHER (6.3X16X1)

09169-06053

$1.49

11

.CUSHION

45149-31300

$3.56

12

.CUSHION

45149-43500

$6.85

13

.CUSHION

09329-10001

$2.12

14

PLATE, SEAT FRONT HOOK

45119-42A00

$6.55
