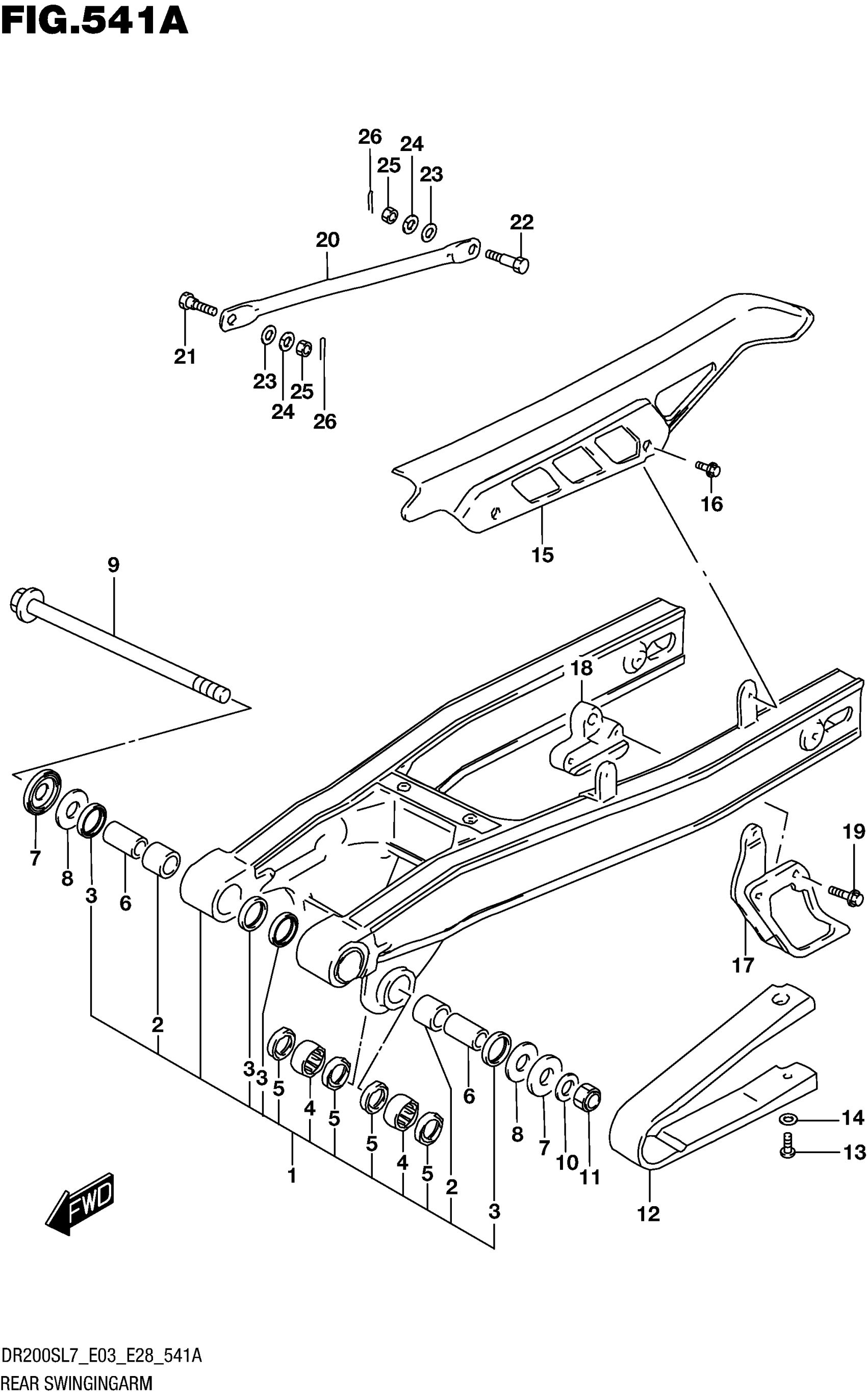

Find the part on the Rear Swingingarm diagram for your 2017 Suzuki DR200SL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR200SL7 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASS This part replaces 61100-42840.

61100-42841

1
Out of stock

2

.BUSHING, RR SWGARM PIVOT

61261-13700

2
Out of stock

3

.OIL SEAL (20X27X5)

09283-20031

4
Out of stock

4

.BEARING (20X27X25)

09263-20053

2
Out of stock

5

.SEAL, DUST

62647-44A00

4
Out of stock

6

SPACER, RR SWGARM PVT

61251-42A00

2
Out of stock

7

SEAL, DUST This part replaces 61262-40400.

61262-40401

2
Out of stock

8

WASHER, THRUST

08211-14322

2
Out of stock

9

SHAFT, PIVOT

61211-26B01

1
Out of stock

10

WASHER (14.5X24X2.3)

09160-14057

1
Out of stock

11

NUT

09159-14019

1
Out of stock

12

BUFFER, CHAIN TOUCH DEFENSE

61273-42A01

1
Out of stock

13

SCREW

02142-0620A

2
Out of stock

14

WASHER

09169-06037

2
Out of stock

15

CASE, CHAIN

61311-01A03

1
Out of stock

16

BOLT (6X10)

09116-06096

2
Out of stock

17

GUIDE, CHAIN

61341-13A10

1
Out of stock

18

RUBBER,CHAIN GU This part replaces 61345-42A00.

61345-42A01

1
Out of stock

19

BOLT

01550-0620A

3
Out of stock

20

TORQUE LINK, REAR (SILVER)

64311-42A00-13L

1
Out of stock

21

BOLT (8X28)

09111-08088

1
Out of stock

22

BOLT (8X26.5)

09111-08013

1
Out of stock

23

WASHER

08322-0108B

2
Out of stock

24

WASHER (8.2X15.2X1.6)

09162-08008

2
Out of stock

25

NUT

09140-08008

2
Out of stock

26

PIN, COTTER

04111-2020A

2
Out of stock
