Description

Price

1

GRIP, THROTTLE

57110-14D00

$30.47

2

CASE ASSY, THROTTLE

57100-13610

$53.61

3

LEVER, BRAKE

57421-44E00

$13.39

4

BOLT, BRAKE LEVER

57431-14500

$6.01

5

NUT

08319-2106A

$1.97

6

BOLT, ADJUST

57431-14511

$5.71

7

NUT

08310-0005A

$1.90

8

SPRING, RETURN

57318-14502

$4.28

9

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

10

.SCREW

57465-17C00

$2.37

11

CLAMP (L:120)

09407-12402

$2.82

12

GRIP LH

57211-27C00

$11.75

13

LEVER ASSY CLUTCH This part replaces 57500-29F31.

57500-29F32

$64.57

14

.LEVER, CLUTCH

57621-13E00

$12.05

15

..BOLT,LEVER PIVOT

57431-21D11

$9.34

16

.NUT

08319-2106A

$1.97

17

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

$12.78

18

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.27

19

.BRACKET, HOLDER

57512-13E00

$29.07

20

.BOLT, BRACKET

57513-13E00

$7.03

21

.SWITCH ASSY, CLUTCH

57560-29F31

$38.22

22

COVER, CLUTCH CABLE DUST This part replaces 57341-29F01.

57341-29F02

$10.83

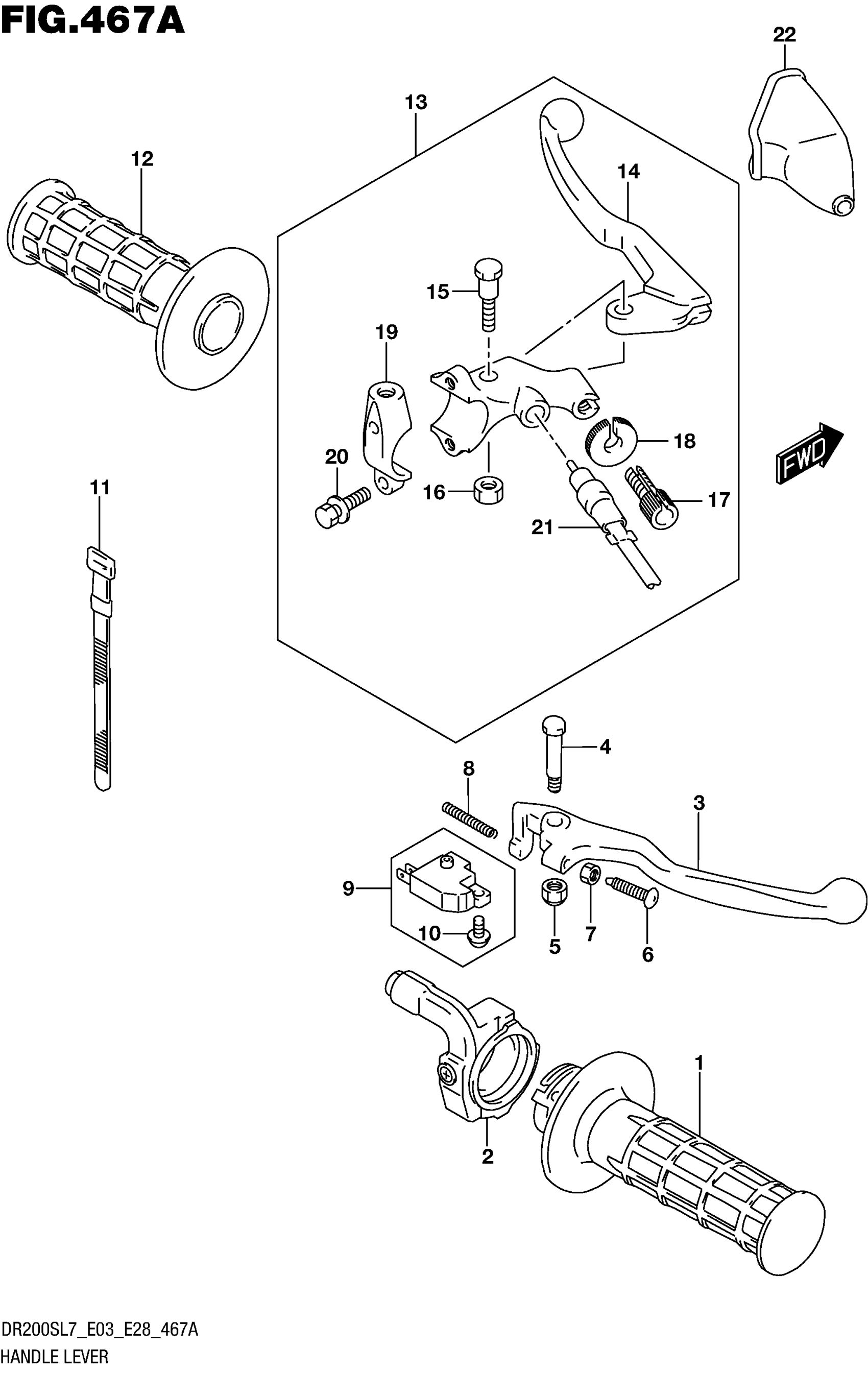

Suzuki DR200SL7 (2017) HANDLE LEVER Diagram
