2017 Suzuki DR200SL7 Rear Fender Diagram

← All diagrams

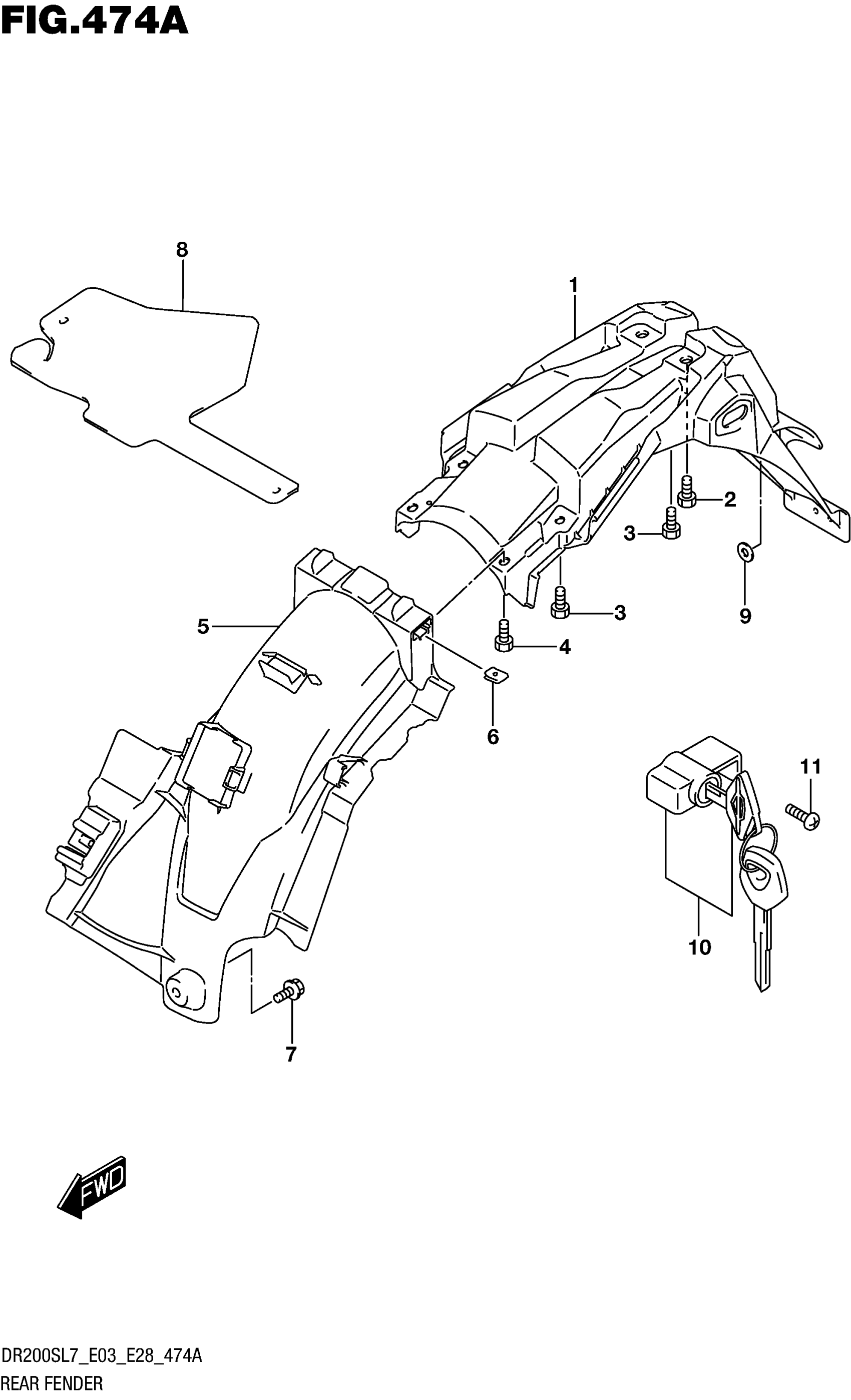

Find the part on the Rear Fender diagram for your 2017 Suzuki DR200SL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR200SL7 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR REAR

63113-49J00

1
Out of stock

2

BOLT (6X16)

09111-06089

2
Out of stock

3

BOLT (6X12)

09111-06107

4
Out of stock

4

BOLT (5X13)

09139-05074

2
Out of stock

5

FENDER, REAR FRONT

63111-49J00

1
Out of stock

6

NUT

09148-05052

2
Out of stock

7

BOLT (6X12)

09111-06107

1
Out of stock

8

MUDFLAP, RR FENDER FR

63411-44AA0

1
Out of stock

9

WASHER

08322-0106B

2
Out of stock

10

LOCK SET HELMET

95700-41821

1
Out of stock

11

SCREW (6X20)

09139-06048

1
Out of stock
