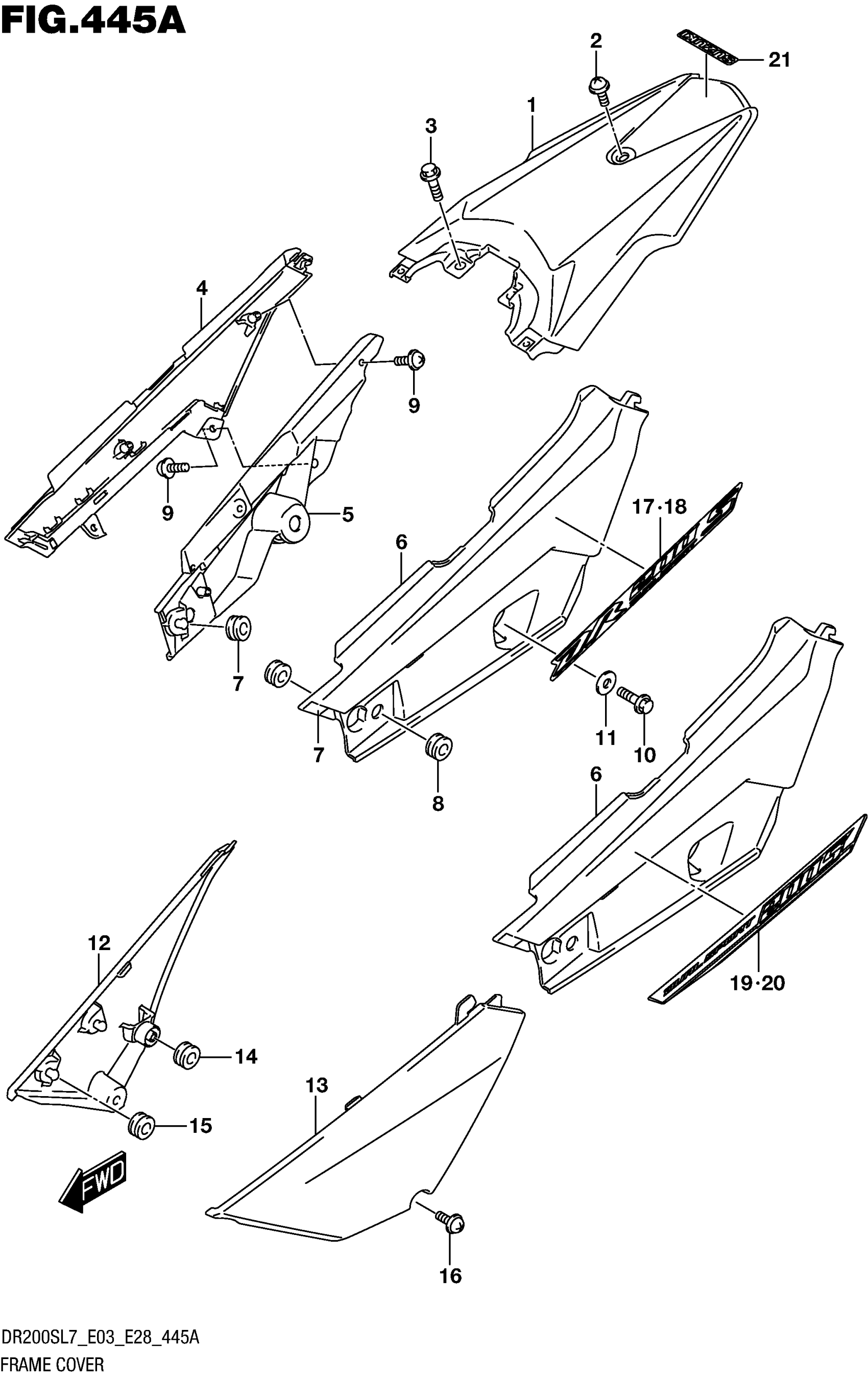

Suzuki DR200SL7 (2017) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME CENTER (BLACK) | FOR 019

47311-49J00-019

Unavailable

1-2

COVER, FRAME CENTER (YELLOW) | FOR GY8

47311-49J00-YU1

$124.15

2

SCREW (6X12)

09139-06188

$4.03

3

BOLT

01550-0612A

$1.97

4-1

COVER, FRAME UPPER RH (BLACK) | FOR 019

47121-49J00-019

$109.70

4-2

COVER, FRAME UPPER RH (YELLOW | FOR GY8

47121-49J00-YU1

$109.70

5

COVER, FRAME INNER RH

47131-49J00

$41.68

6-1

COVER, FRAME UPPER LH (BLACK) | FOR 019

47221-49J00-019

$109.70

6-2

COVER, FRAME UPPER LH (YELLOW | FOR GY8

47221-49J00-YU1

$109.70

7

CUSHION

09320-08018

$2.80

8

CUSHION

09320-08028

$2.80

9

SCREW

03541-0516A

$1.37

10

BOLT (8X25)

09135-08012

$1.56

11

WASHER

09169-08045

$2.14

12

COVER, FRAME RH (BLACK)

47111-49J00-019

$79.13

13

COVER, FRAME LH (BLACK)

47211-49J00-019

Unavailable

14

CUSHION

47161-08G00

$10.88

15

CUSHION

09320-08029

$2.51

16

SCREW (6X16)

09139-06169

$2.80

17

EMBLEM, FRAME COVER RH

68135-49J00-GYY

$19.23

17

(WHITE/GRAY)

68135-49J00-GYY

$19.23

18

EMBLEM, FRAME COVER LH

68145-49J00-GYY

$19.23

18

(WHITE/GRAY)

68145-49J00-GYY

$19.23

19

TAPE, FRAME COVER RH (GRAY)

68135-49J10-BEG

$28.63

20

TAPE, FRAME COVER LH (GRAY)

68145-49J10-BEG

$28.63

21

EMBLEM,SUZUKI This part replaces 68171-28H00-YHG.

68171-28H01-YHG

$6.67

22

COLOR :

SPECIAL NOTE

Unavailable

22

GY8=YU1(YELLOW),019(BLACK)

SPECIAL NOTE

Unavailable
