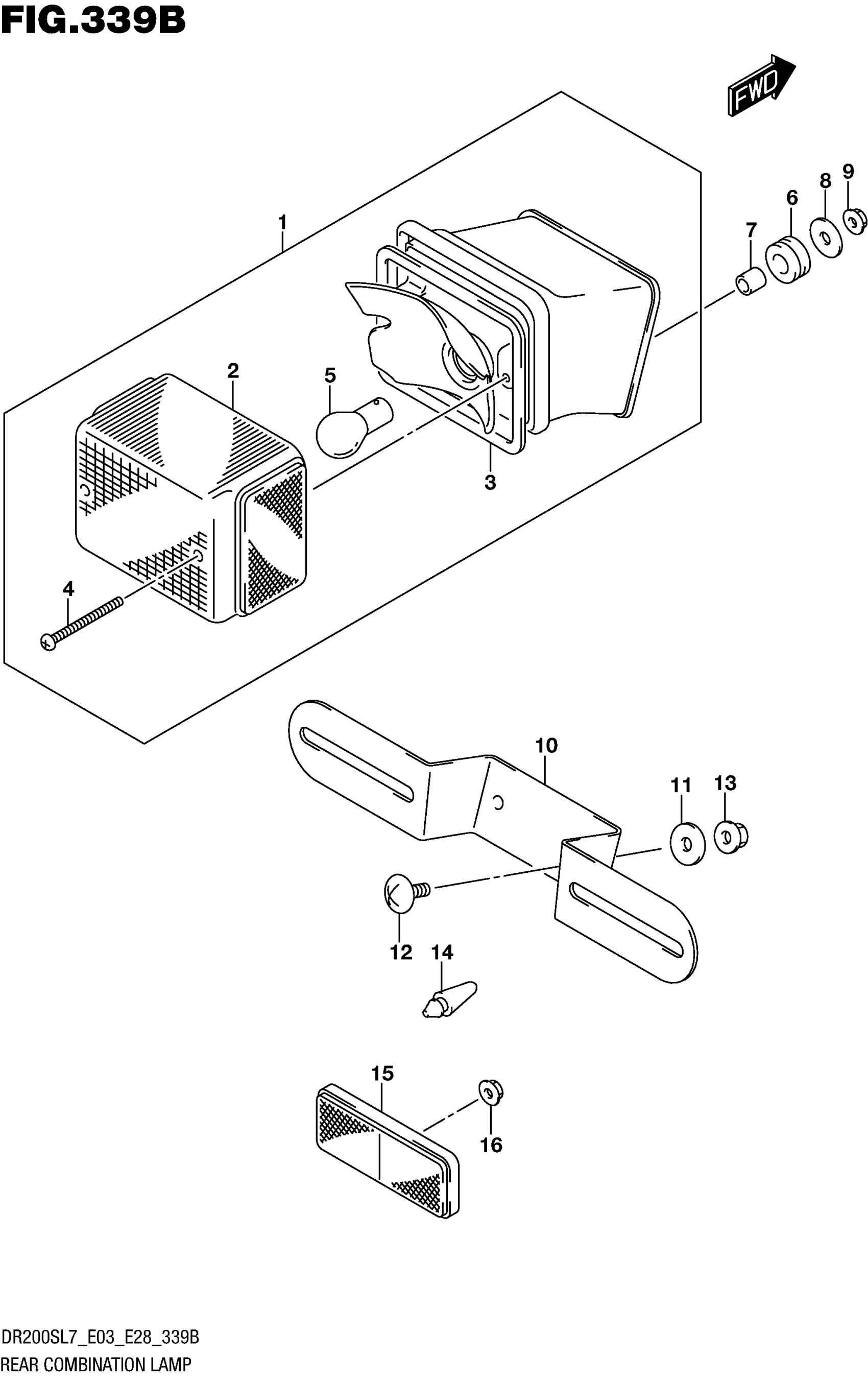

Suzuki DR200SL7 (2017) REAR COMBINATION LAMP (DR200SL7 E28) Diagram

Description

Price

LAMP ASSY, REAR COMBINATION

35710-29F30

$117.49

.LENS

35712-42A30

$51.24

.GASKET LENS

35713-14D30

$7.88

.SCREW (4X45)

09125-04501

$3.16

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

CUSHION

09320-10501

$6.23

SPACER (6.5X10X10)

09180-06310

$1.91

WASHER (6.5X18X1.6)

09160-06109

$1.49

NUT

08316-1006A

$2.19

BRACKET, LICENSE PLATE

35927-49J00

$13.88

WASHER (6.5X16X1)

09160-06129

$2.30

SCREW

02142-0616A

$1.49

NUT

08316-1006A

$2.19

CUSHION

09321-06030

$3.93

REFLEX REFLECTOR ASSY, REAR

35970-07F01

$20.88

NUT

08316-1005A

$2.19
