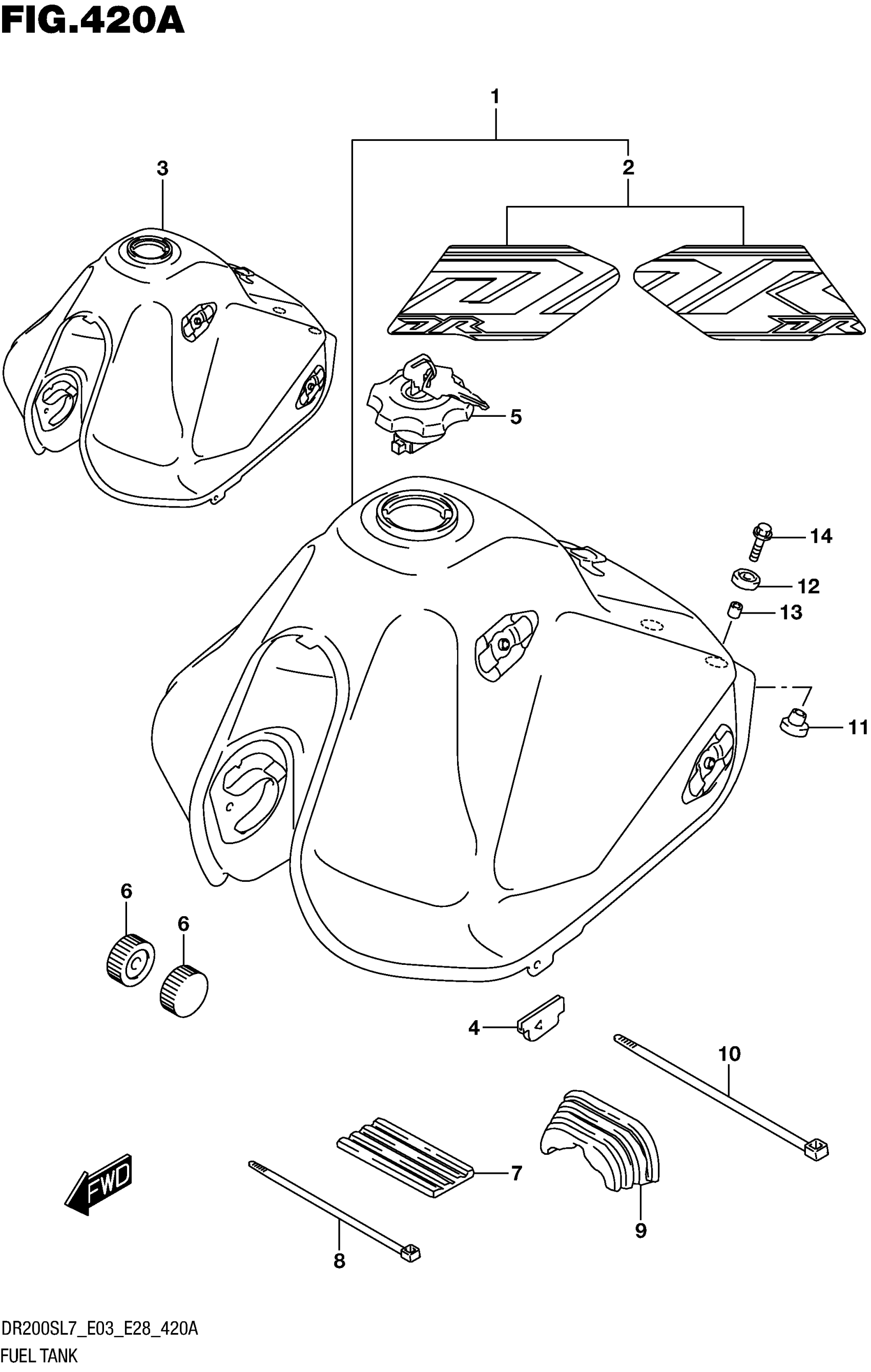

Suzuki DR200SL7 (2017) FUEL TANK (DR200SL7 E03) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | FOR 019

44100-49J30-019

Unavailable

2

.TAPE SET, FUEL TANK | FOR 019

68110-49J00-BCJ

$79.97

3

TANK ASSY, FUEL (BLACK) | FOR GY8

44100-49J00-019

Unavailable

4

CUSHION, FUEL TANK REAR

44164-49J00

$5.10

5

CAP SET FUEL TANK FILLER This part replaces 44200-29820.

44200-29821

$140.27

6

CUSHION

09329-10016

$3.10

7

CUSHION, FUEL TANK UPPER

44541-14500

$8.28

8

CLAMP (L:248)

09407-25402

$4.64

9

CUSHION, FUEL TANK REAR

44542-14A00

$15.42

10

CLAMP (L:300)

09407-30402

$4.11

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

CUSHION

09320-14022

$3.63

13

SPACER (6.5X9X18)

09180-06271

$2.35

14

BOLT

01570-0630B

$2.13

15

COLOR :

SPECIAL NOTE

Unavailable

15

GY8=YU1(YELLOW),019(BLACK)

SPECIAL NOTE

Unavailable
