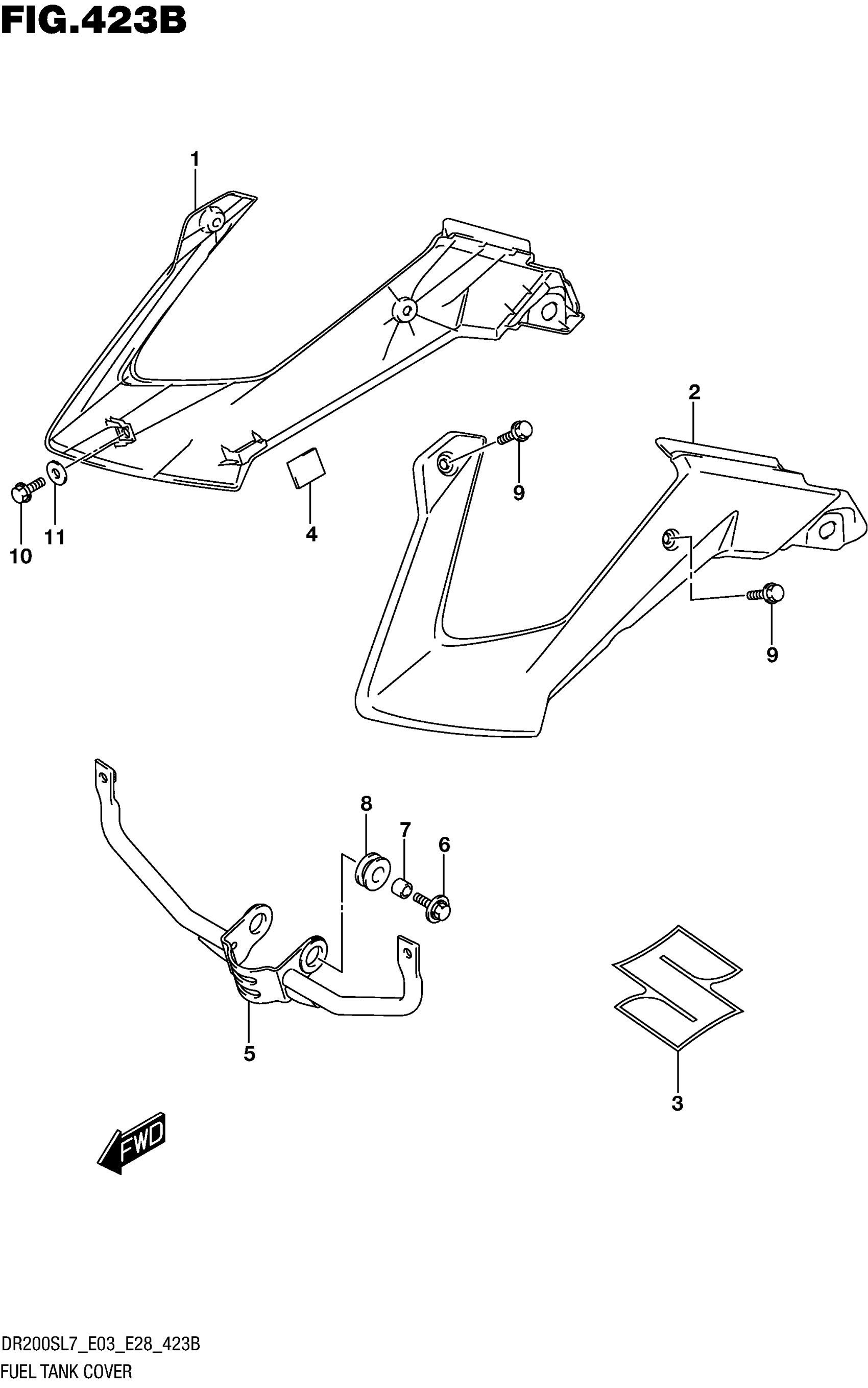

Suzuki DR200SL7 (2017) FUEL TANK COVER (GY8) Diagram

#

Description

Price

1

COVER, FUEL TANK RH (YELLOW)

44271-49J00-YU1

$46.80

2

COVER, FUEL TANK LH (YELLOW)

44281-49J00-YU1

$46.80

3

EMLBEM "S" This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$15.95

4

CUSHION,TANK COVER LWR NO.1

44555-33H00

$11.47

5

BRACE, FUEL TANK COVER

44160-49J00

Unavailable

6

BOLT (6X25)

09116-06186

$2.61

7

SPACER (6.5X9X13.5)

09180-06268

$2.19

8

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.86

9

SCREW (6X10)

09139-06172

$3.04

10

SCREW (6X16)

09139-06139

$3.23

11

WASHER (6.3X16X1)

09169-06053

$1.49

12

COLOR :

SPECIAL NOTE

Unavailable

12

GY8=YU1(YELLOW),019(BLACK)

SPECIAL NOTE

Unavailable
