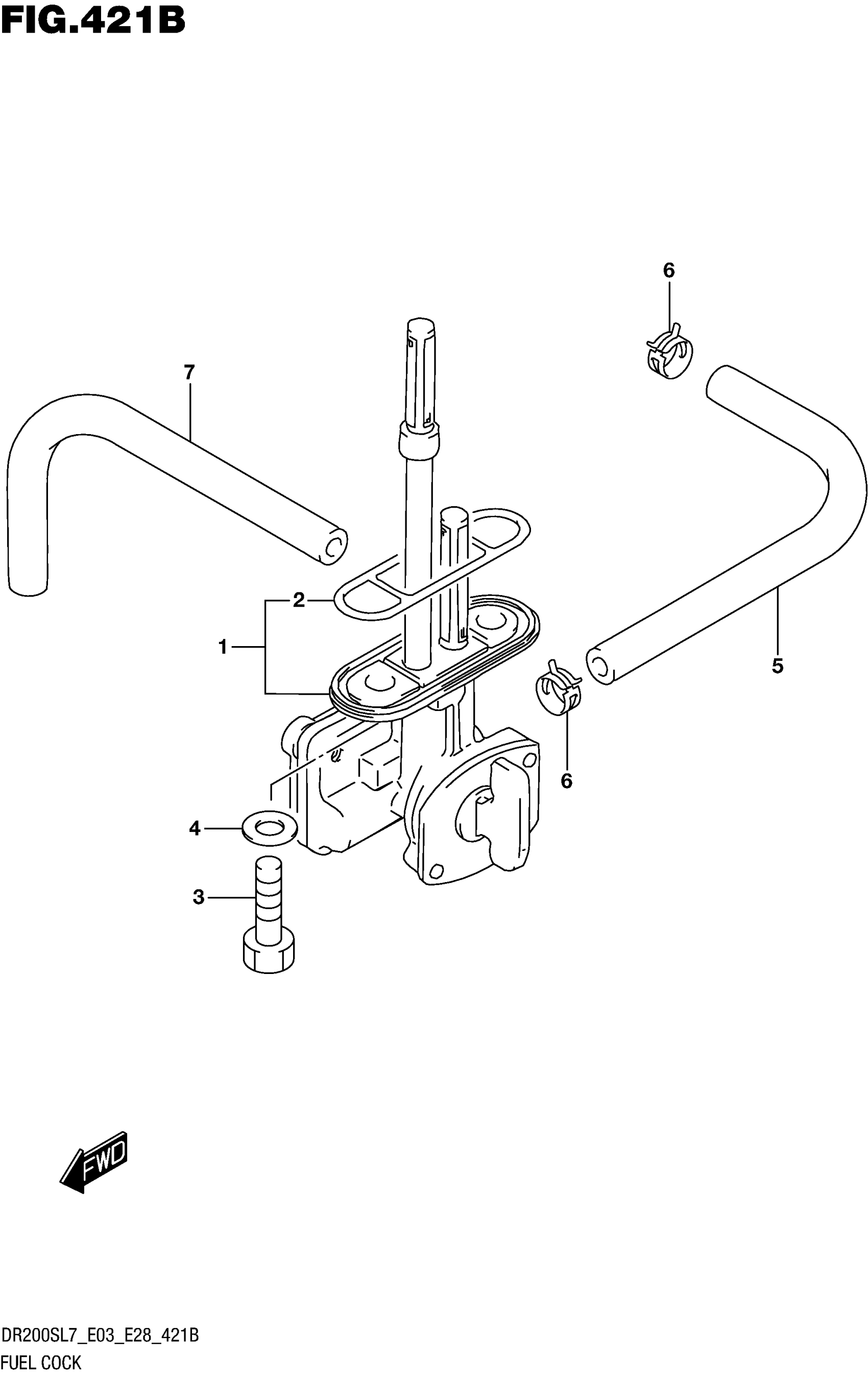

Suzuki DR200SL7 (2017) FUEL COCK (DR200SL7 E28) Diagram

#

Description

Price

1

COCK ASSY,FUEL This part replaces 44300-44AB0.

44300-44AB1

$94.03

2

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$4.90

3

BOLT This part replaces 09128-06006.

09128-06057

$1.64

4

GASKET (6.4X11.5X0.8)

09168-06026

$2.80

5

HOSE (5X10X150)

09355-50109-150

$11.68

6

CLIP (ID:9.4,H:8)

09401-09403

$2.01

7

HOSE, VACUUM

44425-49J00

$12.70
