2017 Suzuki DR200SL7 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2017 Suzuki DR200SL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

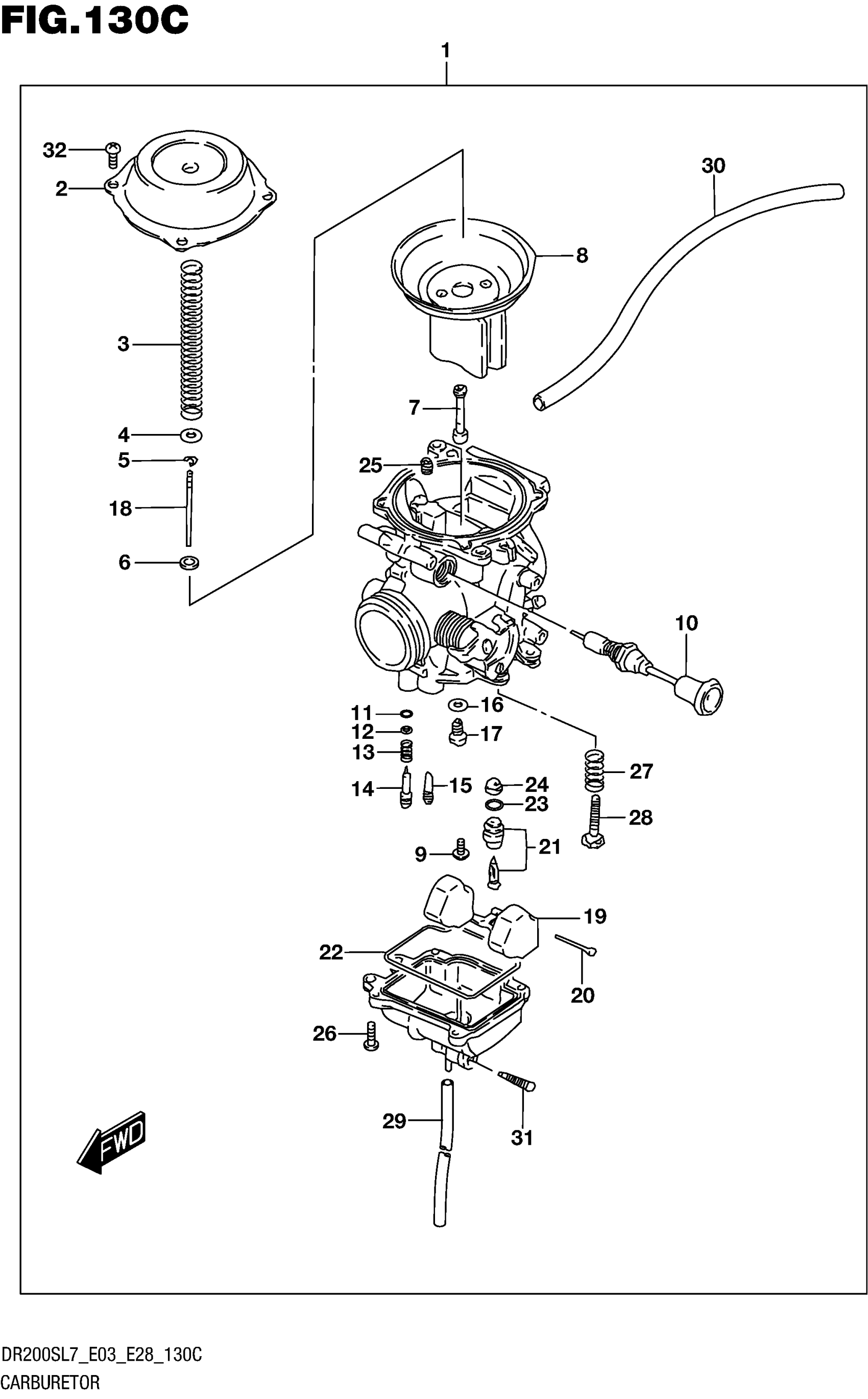

2017 Suzuki DR200SL7 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

13200-42AE2

1
Out of stock

2

.COVER

13502-42A00

1

$43.42

In stock

3

.SPRING

13417-42A00

1
Out of stock

4

.RING

13382-42A00

1

$4.46

In stock

5

.CLIP, NEEDLE

13394-10010

1

$4.76

In stock

6

.RING

13387-47010

1

$7.41

In stock

7

.JET, NEEDLE (P-5M)

09494-00881

1
Out of stock

8

DIAPHRAGM ASSY This part replaces 13500-42A00.

13500-42A01

1
Out of stock

9

.SCREW

13602-43410

1

$3.67

In stock

10

.PLUNGER ASSY

13411-42A20

1
Out of stock

11

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

12

.WASHER

13291-29900

1
Out of stock

13

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

14

.SCREW, PILOT

13279-47070

1

$13.33

In stock

15

.JET, PILOT (35)

09492-35008

1
Out of stock

16

.WASHER

13382-03110

1

$2.92

In stock

17

.JET, MAIN (125)

09491-25010

1
Out of stock

18

.NEEDLE, JET (5D77-1)

13383-42AC0

1
Out of stock

19

.FLOAT

13250-42A00

1

$33.99

In stock

20

.PIN, FLOAT

13254-92311

1

$2.41

In stock

21

.VALVE ASSY, NEEDLE

13370-44500

1

$50.83

In stock

22

1

$9.00

In stock

23

1

$5.97

In stock

24

.NET

13376-19F00

1

$10.26

In stock

25

.JET, AIR (135)

09493-27001

1
Out of stock

26

4

$1.33

In stock

27

1

$6.00

In stock

28

.ADJUSTER

13267-25D00

1
Out of stock

29

.HOSE (3X7X600) | L:600->400 This part replaces 09355-30705-600.

09355-30001-600

1
Out of stock

30

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

31

1

$4.97

In stock

32

.SCREW

02112-0408A

4

$1.15

In stock
