Description

Price

1

CLEANER ASSY,AI This part replaces 13700-42A01.

13700-42A02

$167.38

2

.FILTER

13780-42A01

$34.38

3

.BOLT, WING

13831-42A00

$5.07

4

.WASHER

13796-16700

$2.89

5

.CAP

13740-42A00

$24.99

6

.HOLDER

13790-42A00

$84.50

7

.CLAMP

09402-56901

$5.36

8

TUBE,AIR CLEANE This part replaces 13881-42A00.

13881-42A01

$13.44

9

.CLAMP, AIR CLEANER SIDE

13826-38300

$3.56

10

.TUBE, BREATHER

13853-42A00

$10.17

11

.CLIP

09401-14301

$2.35

12

CLIP This part replaces 13824-00A00.

09401-13409

$2.12

13

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$15.51

14

CLIP This part replaces 13824-18910.

09401-11101

$2.36

15

..STOPPER, DRAIN

13877-38A00

$5.98

16

PLUG,DRAIN This part replaces 13870-14F00.

13870-14F01

$6.55

17

..CLIP

09401-16401

$3.14

18

SCREW

02112-3616A

$1.97

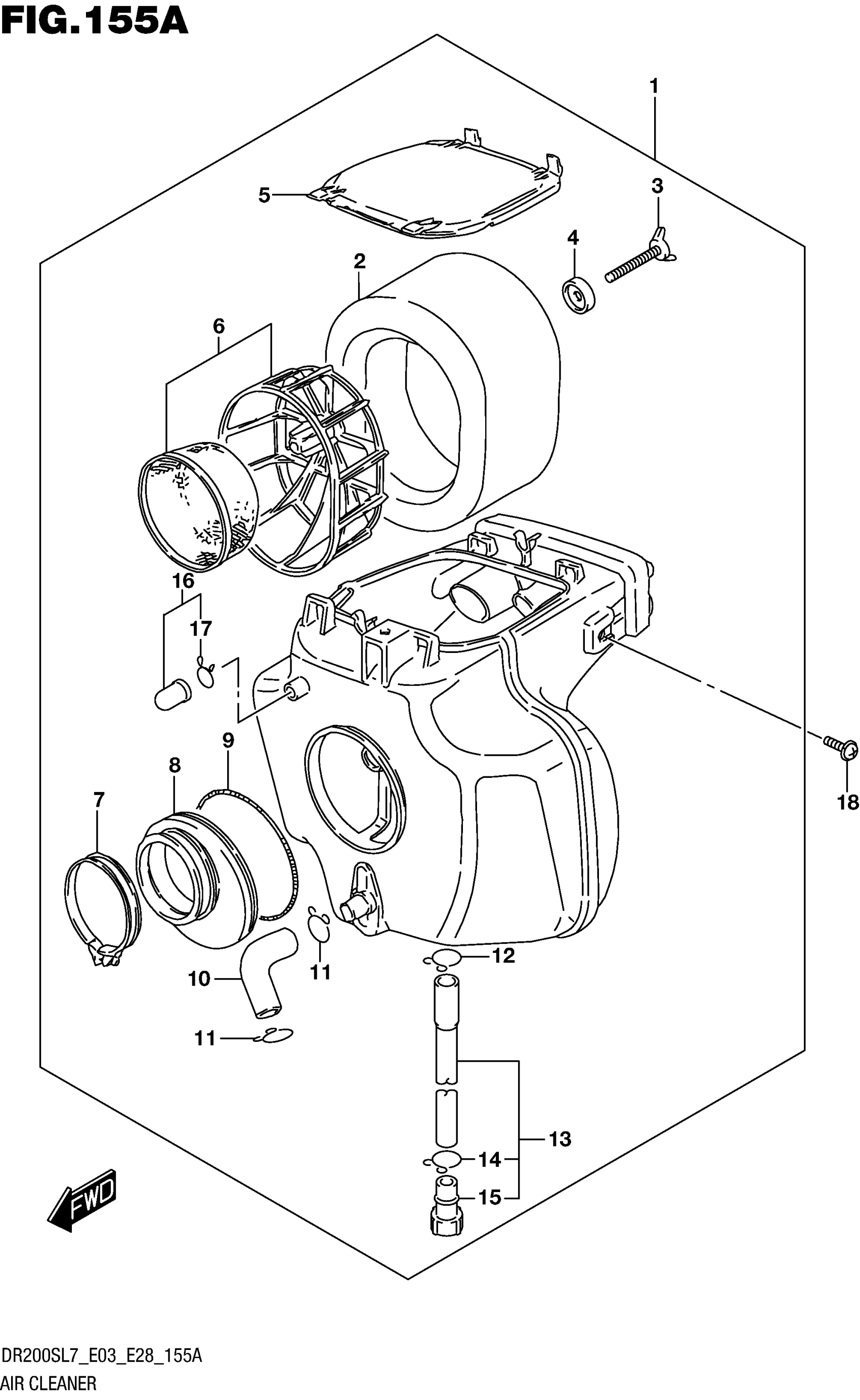

Suzuki DR200SL7 (2017) AIR CLEANER Diagram
