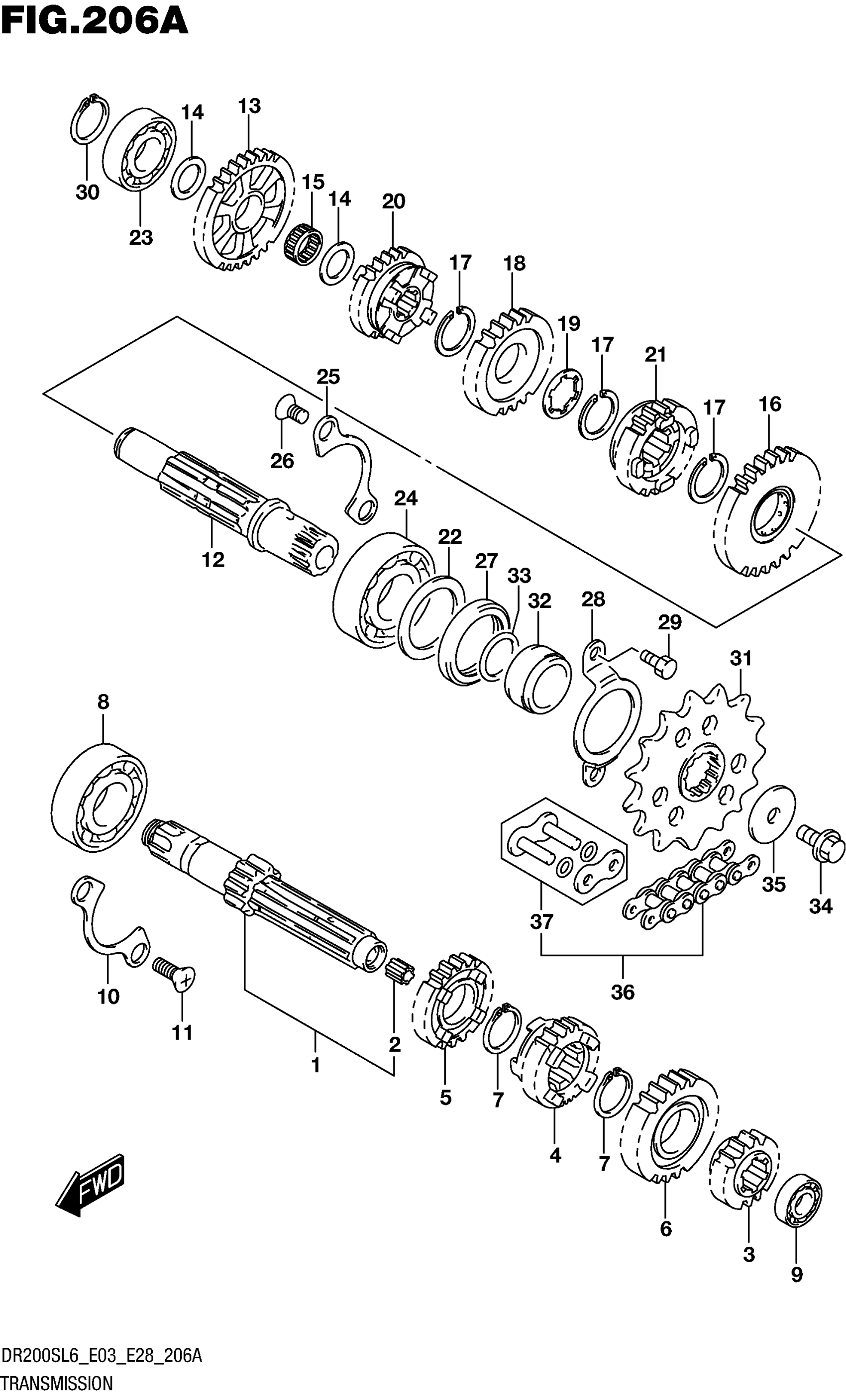

Suzuki DR200SL6 (2016) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11)

24120-42A10

Unavailable

2

.BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:15)

24221-42A02

Unavailable

4

GEAR, 3RD DRIVE (NT:16)

24231-42A03

Unavailable

5

GEAR, 4TH DRIVE (NT:21)

24241-42A00

Unavailable

6

GEAR, 5TH DRIVE (NT:23)

24251-42A10

Unavailable

7

CIRCLIP

09380-20009

$2.20

8

BEARING (20X47X14) | RH

09262-20069

$23.28

9

BEARING | LH

08123-60027

$23.62

10

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

11

SCREW (6X12)

09126-06011

$2.03

12

SHAFT, DRIVE

24130-42A20

$169.98

13

GEAR, 1ST DRIVEN (NT:33)

24311-42A00

$115.77

14

SHIM (17X26X1)

09181-17167

$2.96

15

BEARING (17X21X9.8)

09263-17004

$12.03

16

GEAR, 2ND DRIVEN (NT:29)

24320-42A03

$96.22

17

CIRCLIP

09380-22006

$3.10

18

GEAR, 3RD DRIVEN (NT:23)

24331-42A02

Unavailable

19

LOCK WASHER

09167-22011

$3.23

20

GEAR, 4TH DRIVEN (NT:23)

24341-42A02

Unavailable

21

GEAR, 5TH DRIVEN (NT:21)

24351-42A02

Unavailable

22

WASHER, OIL SEALING

24359-42A00

$4.35

23

BEARING (17X36X12) | RH

09264-17001

$43.02

24

BEARING (22X50X14) | LH

09262-22018

$25.60

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

26

SCREW (6X12)

09126-06011

$2.03

27

OIL SEAL (30X40X6)

09283-30053

$9.24

28

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

$4.52

29

BOLT

01500-0610A

$2.23

30

CIRCLIP

08331-31179

$1.90

31

SPROCKET, ENGINE (NT:15)

27510-42A10

$49.40

32

SPACER, ENGINE SPROCKET

27531-42A00

$23.07

33

O RING (D:2.5,ID:21)

09280-21008

$1.91

34

BOLT (8X12)

01550-0812A

$2.32

35

WASHER

08211-08283

$2.81

36

CHAIN ASSY, DRIVE (DID520VC5)

27600-14A20-112

$237.67

37

.JOINT SET, CHAIN

27620-14A20

$16.00
