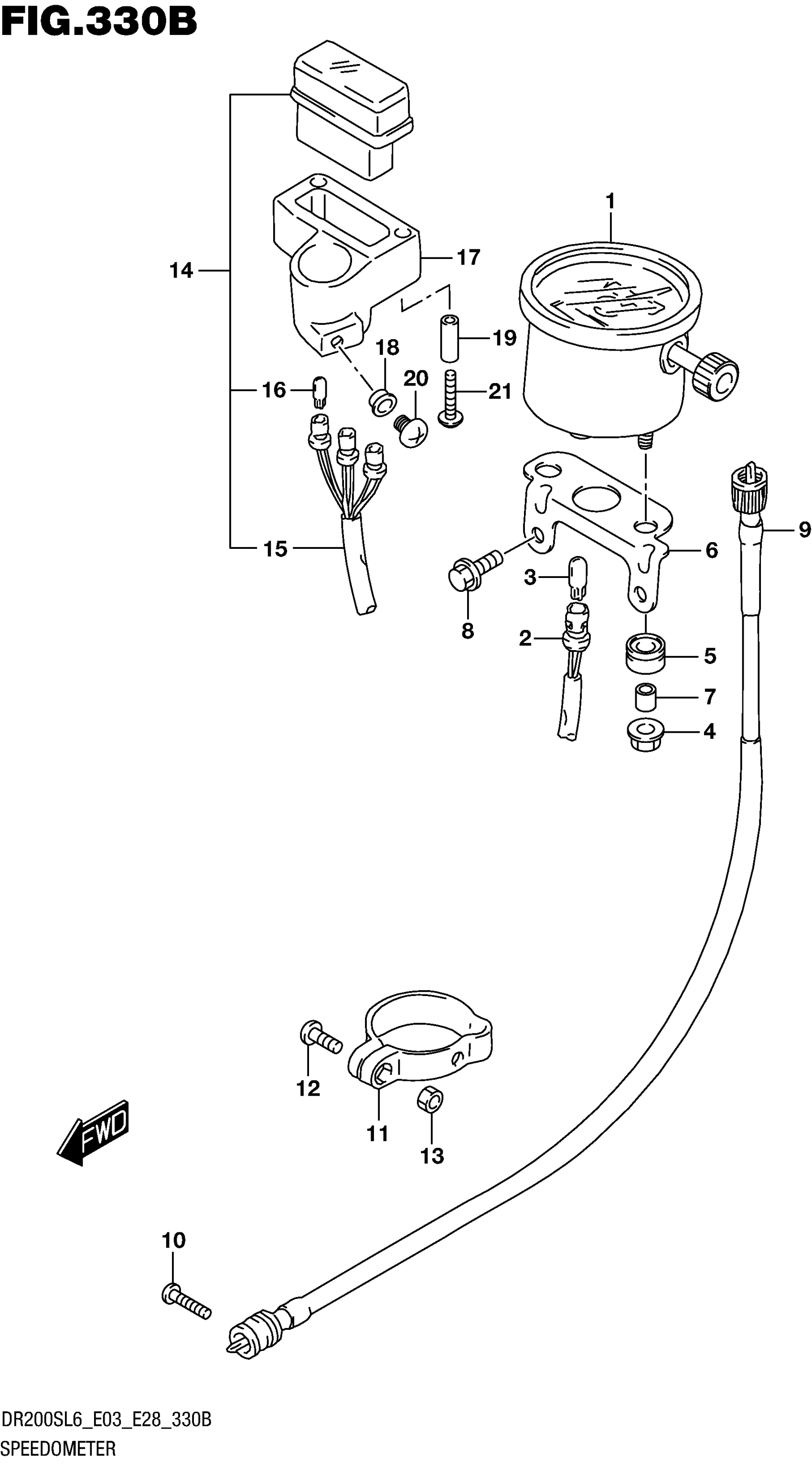

Suzuki DR200SL6 (2016) SPEEDOMETER (DR200SL6 E28) Diagram

#

Description
Price

1

SPEEDOMETER

34110-49J00

Unavailable

2

CORD ASSY

34170-49J00

Unavailable

3

.BULB (12V1.7W)

09471-12108

$3.42

4

NUT

09159-05049

$2.30

5

CUSHION

34955-48G00

Unavailable

6

BRACKET, SPEEDOMETER

34950-49J00

$12.58

7

SPACER (5.4X7X8.5)

09180-05065

$2.12

8

BOLT

01550-0612A

$1.97

9

CABLE ASSY, SPEEDOMETER

34910-44A30

$46.80

10

.SCREW

02112-0516A

$1.49

11

CLAMP, SPEEDOMETER CABLE

34938-01A00

$13.05

12

.SCREW

02112-0516A

$1.49

13

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

14

BOX ASSY, PILOT LAMP

36380-42A00

$165.77

15

.SOCKET & CORD

36394-32E00

$44.48

16

.BULB (13.5V, 2W)

09471-12118

$2.46

17

HOLDER, PILOT BOX

36382-08D01

Unavailable

18

WASHER

09169-05024

$2.06

19

SPACER (4.5X6.5X25)

09180-04024

$5.00

20

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

21

SCREW

03511-1435B

$2.58
