Description

Price

1

HUB, REAR WHEEL

64110-44A10

Unavailable

2

TIRE, REAR (100/90-18M/C 56P) | BRIDGESTONE

65110-42AA0

$188.20

3

TUBE ASSY, WHEEL INNER

65200-42AA1

$65.62

4

PROTECTOR, WHEEL INNER TUBE

65261-29231

Unavailable

5

RIM, REAR WHEEL (18X2.15)

65311-42AA0

$445.84

6

SPOKE ASSY, REAR WHEEL

65320-42AA0

$82.99

7

SPACER (15.3X21.7X107.5)

09180-15013

$13.53

8

BEARING | RH

08143-62027

$16.01

9

BEARING | LH This part replaces 08123-63027.

08123-6302B

$22.74

10

PANEL, REAR BRAKE ANCHOR

64210-44A00

$168.68

11

SHOE SET, BRAKE

54400-07870

$37.96

12

SPRING This part replaces 09443-07001.

09443-07025

$2.08

13

CAM, BRAKE

54441-29305

$20.02

14

O RING (D:2.5, ID:13.8)

09280-14011

$4.77

15

WASHER (14.5X22X1.6)

09160-14055

$2.39

16

LEVER, REAR BRAKE CAM

64451-30501

$20.06

17

BOLT

01550-0640B

$2.22

18

NUT

08316-1006B

$2.50

19

SPROCKET, REAR (NT:45)

64511-42A01

$61.40

20

BOLT (8X30)

09103-08048

$5.20

21

WASHER

09164-08020

$2.06

22

CAP,RR SWINGARM This part replaces 61470-42A00.

61470-42A01

$10.05

23

AXLE, REAR

64711-44A11

$49.02

24

ADJUSTER, CHAIN RH

61411-42A00

$12.57

25

SPACER, CHAIN ADJUSTER

61413-42A00

$10.07

26

WASHER (15.5X30X3.2)

09160-15039

$2.23

27

BOLT, CHAIN ADJUSTER

61431-42A10

$7.08

28

SPACER, AXLE RH

64741-42A00

$13.05

29

ADJUSTER, CHAIN LH

61421-42A00

$13.05

30

SPACER, AXLE LH

64750-42A00

$12.80

31

WASHER (14.5X30X3.2)

09160-14062

$2.81

32

NUT

08319-3114A

$9.66

33

ROD ASSY, REAR BRAKE

43300-42A02

$19.82

34

.SPRING

09440-09004

$2.20

35

.PIN (13X18)

09209-13018

$3.42

36

.NUT

09150-06010

$3.10

37

.PIN (10X16)

09200-06013

$2.00

38

.WASHER

08322-0106B

$2.26

39

.PIN, COTTER

04111-2020A

$1.49

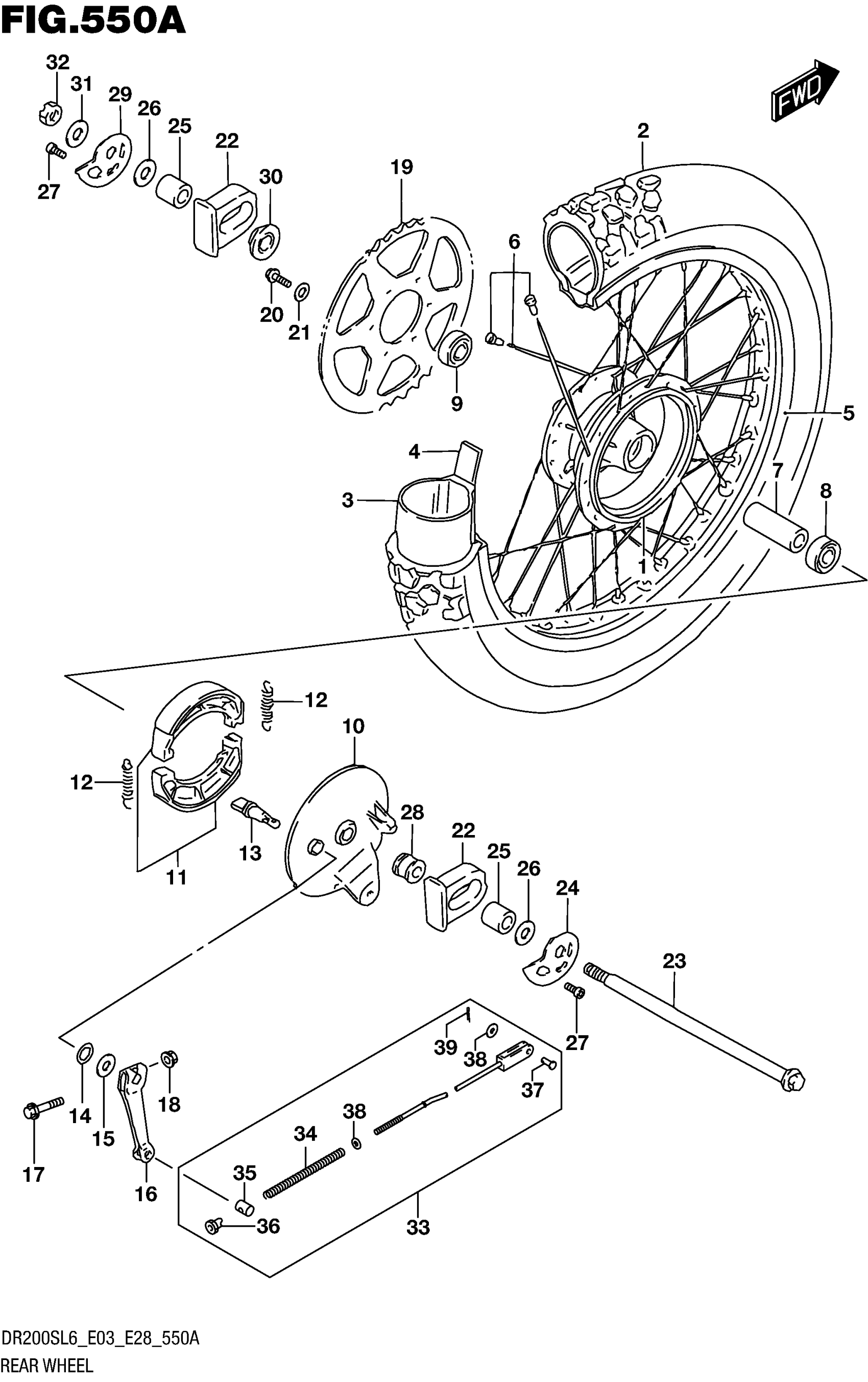

Suzuki DR200SL6 (2016) REAR WHEEL Diagram
