Description

Price

1

HANDLEBAR (SILVER)

56110-49J00-20H

$162.57

2

MIRROR ASSY,REA This part replaces 56500-10042.

56500-10043

$115.37

3

MIRROR ASSY,REA This part replaces 56600-10042.

56600-10043

$88.37

4

CABLE ASSY, CLUTCH

58200-49J00

$47.73

5

PIN

09200-06004

$2.20

6

PIN, COTTER

04111-2015A

$1.49

7

CLAMP (L:235)

09407-25401

$4.66

8

CLAMP, CLUTCH CABLE

58285-05351

$3.42

9

BOLT

01500-0516B

$2.15

10

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

11

CABLE ASSY, THROTTLE

58300-49J00

$30.70

12

CLAMP

09408-00078

Unavailable

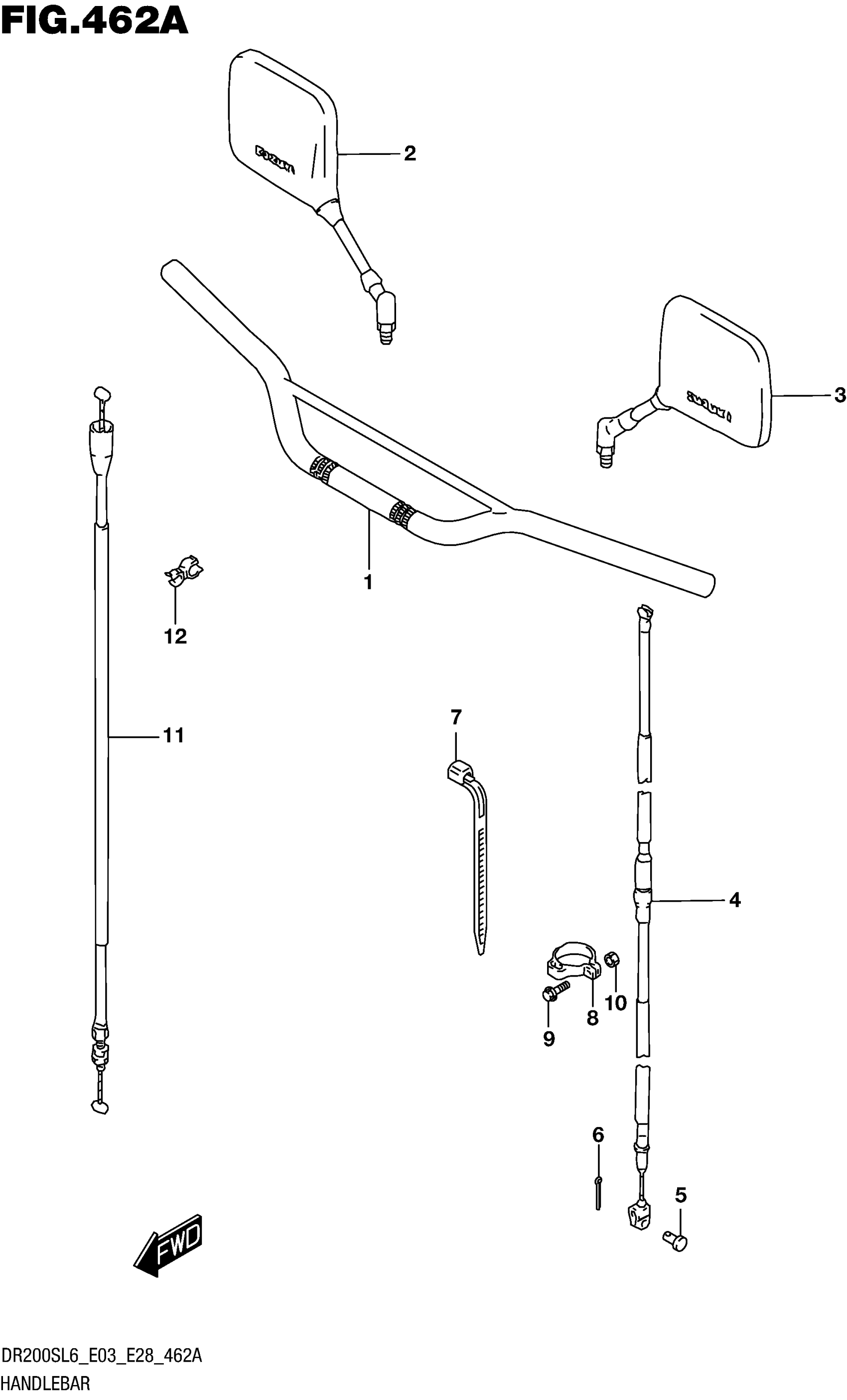

Suzuki DR200SL6 (2016) HANDLEBAR Diagram
