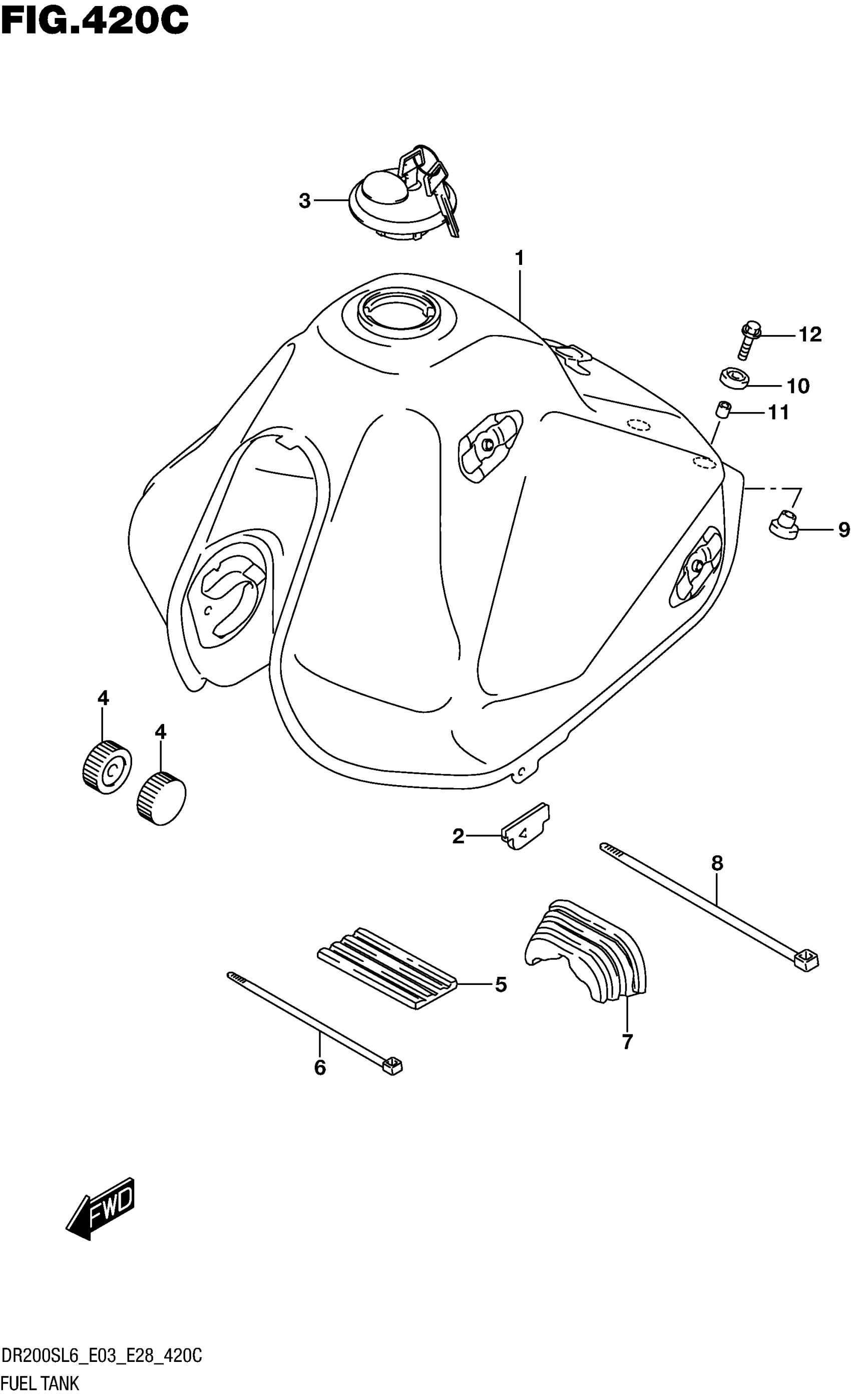

Suzuki DR200SL6 (2016) FUEL TANK (DR200SL6 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-49J20-019

$949.35

2

CUSHION, FUEL TANK REAR

44164-49J00

$5.10

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$94.83

4

CUSHION

09329-10016

$3.10

5

CUSHION, FUEL TANK UPPER

44541-14500

$8.28

6

CLAMP (L:248)

09407-25402

$4.64

7

CUSHION, FUEL TANK REAR

44542-14A00

$15.42

8

CLAMP (L:300)

09407-30402

$4.11

9

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

10

CUSHION

09320-14022

$3.63

11

SPACER (6.5X9X18)

09180-06271

$2.35

12

BOLT

01570-0630B

$2.13
