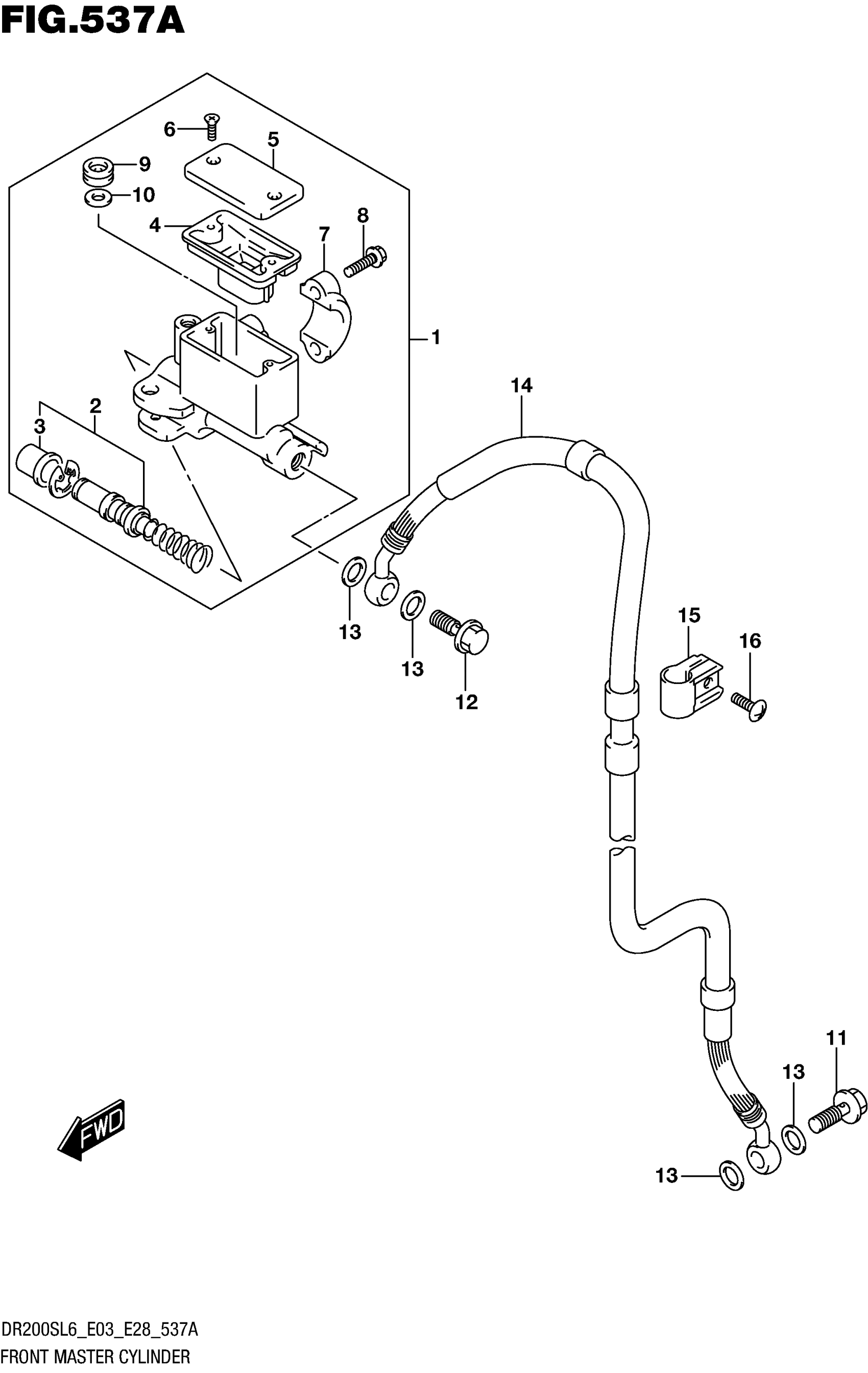

Suzuki DR200SL6 (2016) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-44E30

$305.40

1

(SILVER)

59600-44E30

$305.40

2

.PISTON/CUP SET

69600-38810

$51.24

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-44B00

$9.78

5

.CAP (SILVER)

59669-03D00

$32.30

6

.SCREW

02122-04127

$1.97

7

.HOLDER (SILVER)

59671-03D00

$26.23

8

.BOLT

59675-27C00

$3.54

9

.SEPARATOR

59748-36E00

$9.37

10

.RING

69744-36E00

$4.02

11

UNION

09360-10061

$6.43

12

UNION

09360-10062

$6.43

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

HOSE, FRONT BRAKE

59480-49J00

Unavailable

15

CLAMP, FR BRAKE HOSE

59245-49J00

Unavailable

16

SCREW

02142-0612B

$2.05
