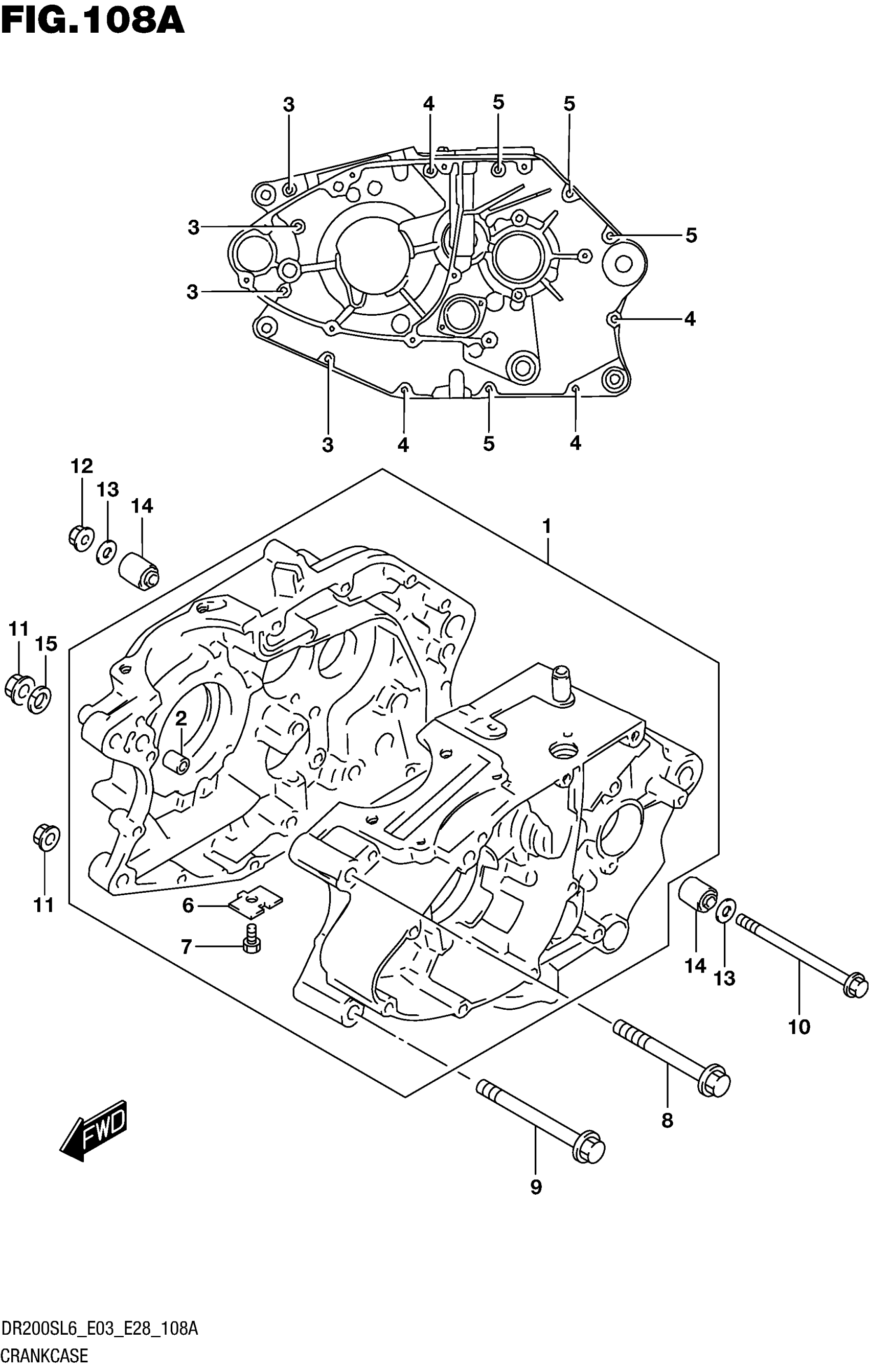

Suzuki DR200SL6 (2016) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

11300-42A80

$836.65

2

.PIN, KNOCK

04211-13189

$2.19

3

.BOLT

01547-0655A

$2.42

4

.BOLT

01547-0660A

$2.82

5

BOLT,CARB This part replaces 01547-06757.

09103-06522

$2.95

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.37

7

.BOLT

01500-0610A

$2.23

8

BOLT (10X80)

09103-10370

$7.30

9

BOLT (10X90)

09103-10374

$6.20

10

BOLT (8X115)

09103-08138

Unavailable

11

NUT

09159-10115

$3.55

12

NUT

08319-3108A

$2.32

13

WASHER

08212-08182

Unavailable

14

BUSH (8.4X18X16)

09319-08032

Unavailable

15

WASHER, LOCK

08321-0110A

$1.84
