Description

Price

1

SPEEDOMETER

34110-49J00

Unavailable

2

CORD ASSY

34170-49J00

Unavailable

3

.BULB (12V1.7W)

09471-12108

$3.42

4

NUT

09159-05049

$2.30

5

CUSHION

34955-48G00

Unavailable

6

BRACKET, SPEEDOMETER

34950-49J00

$12.58

7

SPACER (5.4X7X8.5)

09180-05065

$2.12

8

BOLT

01550-0612A

$1.97

9

CABLE ASSY, SPEEDOMETER

34910-44A30

$46.80

10

.SCREW

02112-0516A

$1.49

11

CLAMP, SPEEDOMETER CABLE

34938-01A00

$13.05

12

.SCREW

02112-0516A

$1.49

13

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

14

BOX ASSY, PILOT LAMP

36380-42A00

$165.77

15

SOCKET & CORD

36394-32E00

$44.48

16

BULB (13.5V,2W)

09471-12118

$2.46

17

HOLDER, PILOT BOX

36382-08D01

Unavailable

18

WASHER

09169-05024

$2.06

19

SPACER (4.5X6.5X25)

09180-04024

$5.00

20

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

21

SCREW

03511-1435B

$2.58

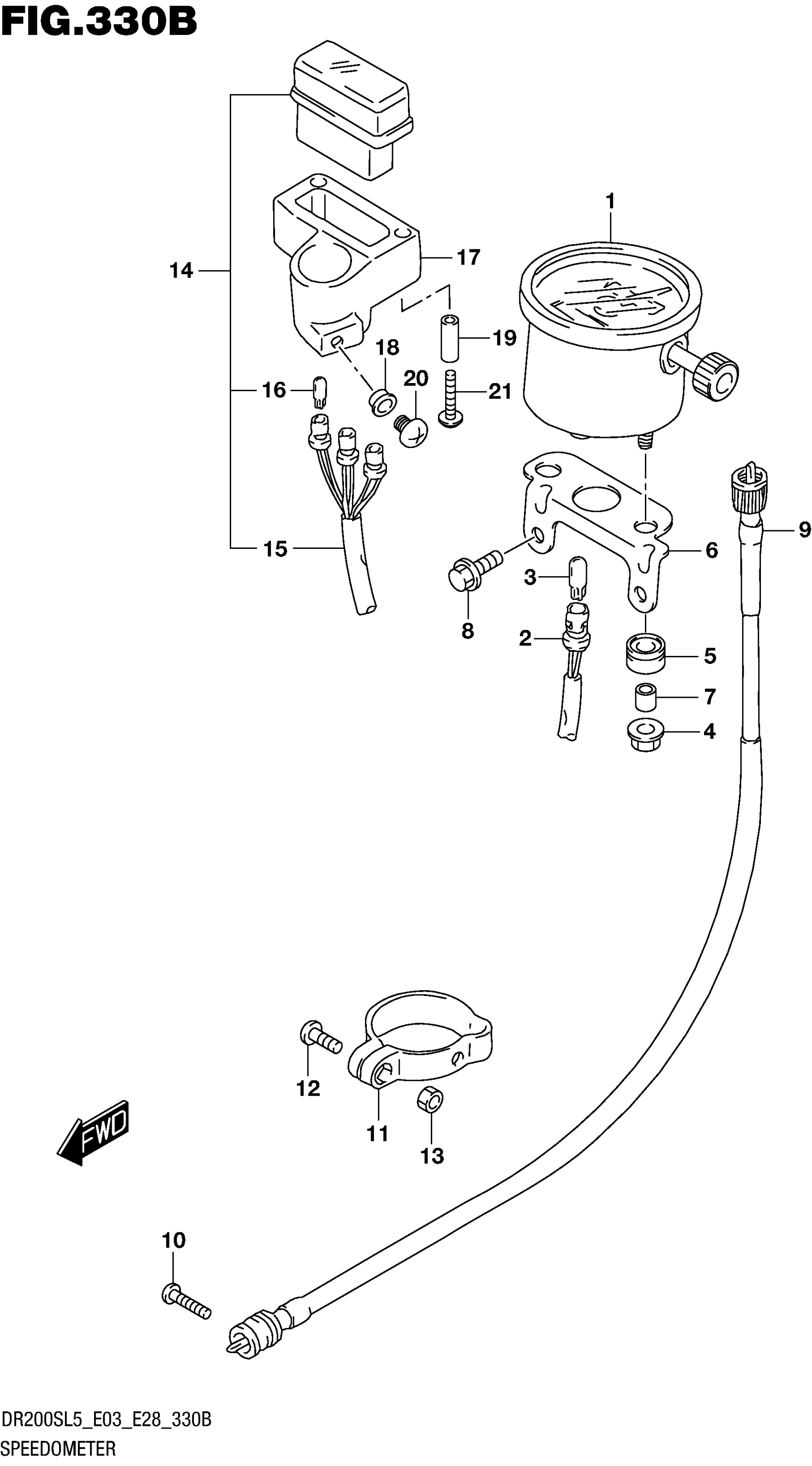

Suzuki DR200SL5 (2015) SPEEDOMETER (DR200SL5 E28) Diagram

SPEEDOMETER

CORD ASSY

.BULB (12V1.7W)

NUT

CUSHION

BRACKET, SPEEDOMETER

SPACER (5.4X7X8.5)

BOLT

CABLE ASSY, SPEEDOMETER

.SCREW

CLAMP, SPEEDOMETER CABLE

.SCREW

NUT This part replaces 08310-0005B.

BOX ASSY, PILOT LAMP

SOCKET & CORD

BULB (13.5V,2W)

HOLDER, PILOT BOX

WASHER

SPACER (4.5X6.5X25)

SCREW This part replaces 02142-0510A.

SCREW
