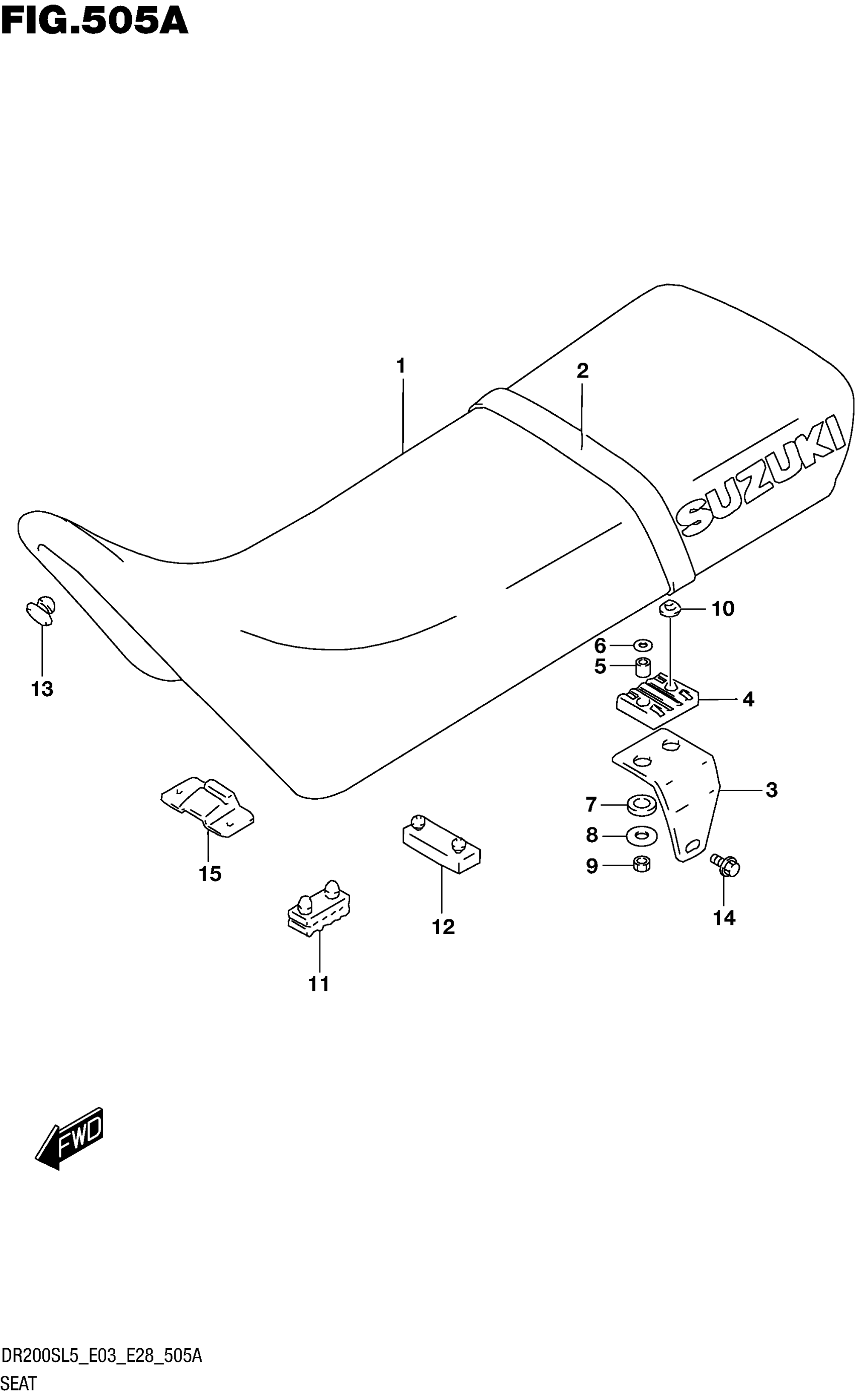

Suzuki DR200SL5 (2015) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK/SILVER)

45100-49J00-AX8

$299.18

2

BAND, SEAT GRIP

45180-49J00

Unavailable

3

BRACKET, SEAT

45117-49J00

$9.77

4

CUSHION, FRONT PLATE

45150-23450

$6.38

5

SPACER, SEAT BRACKET

45219-49J00

$3.70

6

WASHER (6.5X16X4)

09160-06131

$2.50

7

CUSHION, SEAT FR

45147-23450

Unavailable

8

WASHER This part replaces 09160-06012.

09160-06054

$1.62

9

NUT

08316-2006A

$2.63

10

WASHER (6.3X16X1)

09169-06053

$1.49

11

CUSHION

45149-31300

$3.56

12

CUSHION

45149-43500

$6.85

13

CUSHION

09329-10001

$2.12

14

BOLT (8X12)

01550-0812A

$2.32

15

PLATE, SEAT FRONT HOOK

45119-42A00

$6.55
