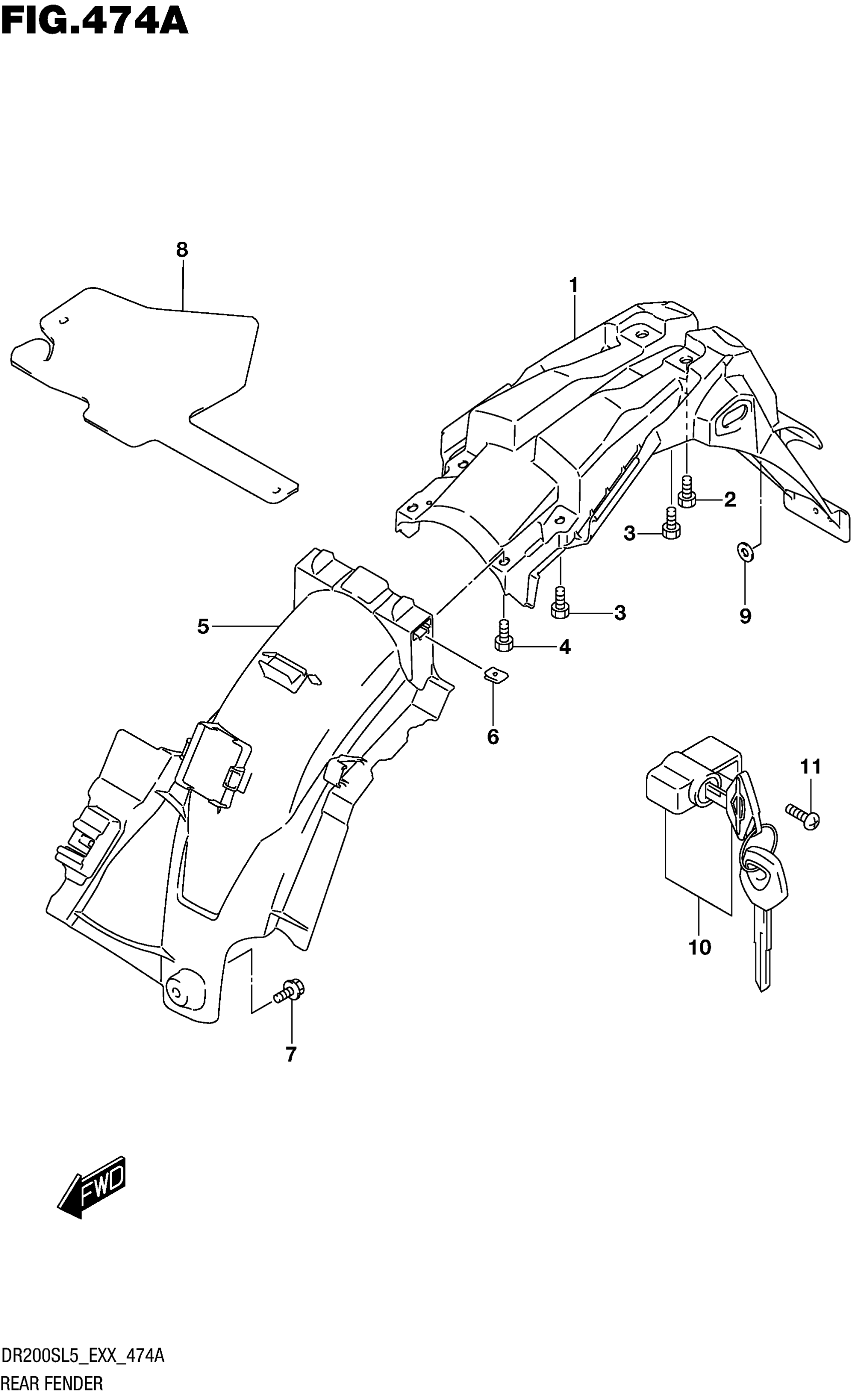

Suzuki DR200SL5 (2015) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR REAR

63113-49J00

$134.48

2

BOLT(6X16)

09111-06089

$2.62

3

BOLT(6X12)

09111-06107

$2.60

4

BOLT(5X13)

09139-05074

$2.61

5

FENDER, REAR FRONT

63111-49J00

$62.58

6

NUT

09148-05052

$3.37

7

BOLT(6X12)

09111-06107

$2.60

8

MUDFLAP, RR FENDER FR

63411-44AA0

$62.73

9

WASHER

08322-0106B

$2.26

10

LOCK SET HELMET

95700-41821

$152.77

11

SCREW(6X20)

09139-06048

$2.14
