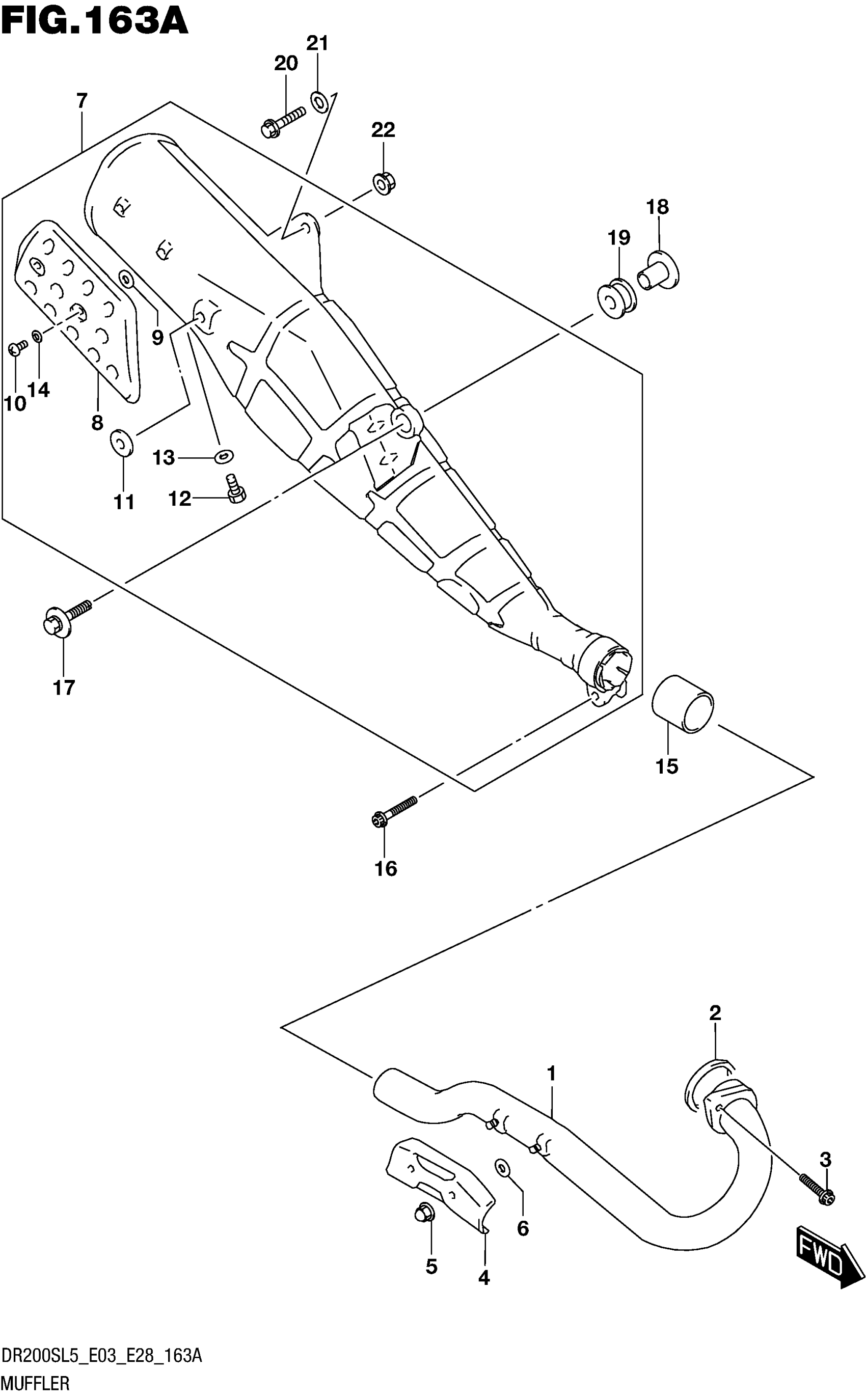

Suzuki DR200SL5 (2015) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-42A22

$331.25

2

GASKET, EXHAUST PIPE

14181-42A00

$10.93

3

BOLT

07120-0825A

$3.67

4

COVER, EXHAUST PIPE

14186-42A20

Unavailable

5

NUT

09145-06005

$4.25

6

GASKET (6X16X1.4)

09168-06122

$2.73

7

MUFFLER ASSY

14301-42A61-H01

$491.85

8

COVER, MUFFLER

14781-42A20

$28.18

9

GASKET (5.8X13X1.4)

09168-06120

$2.92

10

SCREW (6X10)

09139-06076

$2.42

11

CUSHION

09321-10007

$2.71

12

PLUG (12X9)

09247-12103

$2.84

13

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

14

WASHER

08322-0106A

$1.84

15

GASKET, 2ND MUFFLER

14773-14202

$23.17

16

BOLT

07120-0835A

$3.55

17

BOLT (8X35)

09118-08080

$3.03

18

SPACER (8.6X12X17.5)

09180-08151

$5.18

19

CUSHION

09320-12043

$7.98

20

BOLT (8X35)

09103-08357

$4.17

21

WASHER

08322-0108A

$1.92

22

NUT

08361-2508A

$1.97
