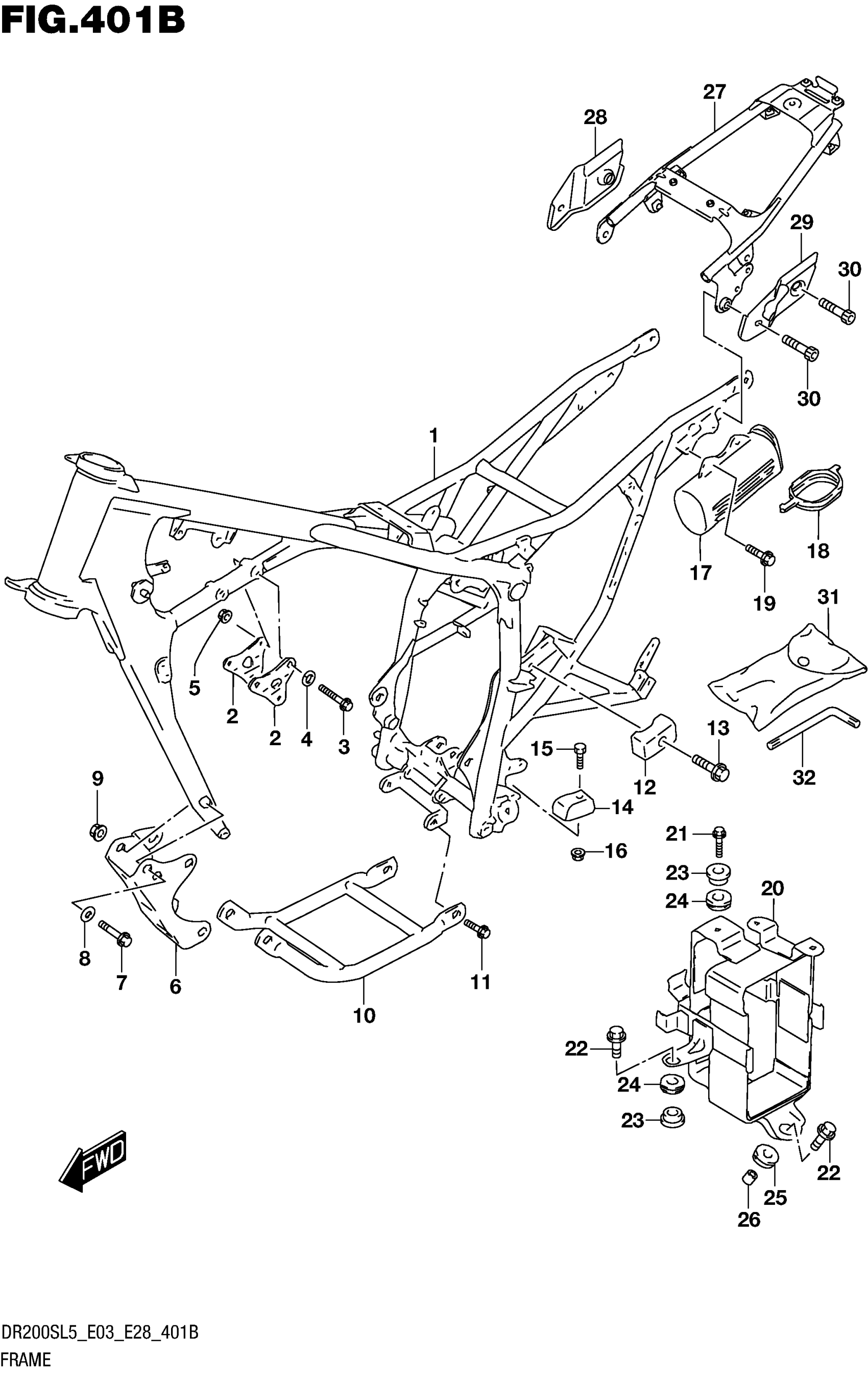

Suzuki DR200SL5 (2015) FRAME (DR200SL5 E28) Diagram

#

Description
Price

1

FRAME (GRAY)

41100-44AL0-YPT

$2,103.55

2

PLATE, MOUNT UPPER (BLACK)

41991-42A00-291

$15.42

3

BOLT (8X53)

09103-08332

$4.60

4

LOCK WASHER

08321-0108A

$1.84

5

NUT

08319-3108A

$2.32

6

PLATE, MOUNT LOWER (GRAY)

41992-44AA1-YPT

Unavailable

7

BOLT (8X70) This part replaces 09103-08293.

09103-08569

$4.88

8

LOCK WASHER

08321-0108A

$1.84

9

NUT

08319-3108A

$2.32

10

PROTECTOR, ENGINE (GRAY)

42510-44AA0-YPT

Unavailable

11

BOLT

01551-1016A

$3.85

12

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$15.78

13

BOLT

01580-0635B

$4.00

14

GUIDE, CHAIN LOWER

43912-42AA0

$29.33

15

BOLT This part replaces 09128-06006.

09128-06057

$1.65

16

NUT

08319-3106B

$2.45

17

HOLDER, TOOL

41551-38201

$41.63

18

CAP, TOOL HOLDER

41552-37210

$9.78

19

BOLT (6X16)

09116-06165

$3.03

20

HOLDER, BATTERY

41540-44AA0

Unavailable

21

BOLT, UPPER

01550-0620B

$2.39

22

BOLT (6X25)

09116-06047

Unavailable

23

WASHER

09169-06065

$4.32

24

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

25

CUSHION | LH

09320-10501

$6.23

26

SPACER (6.5X10X9) | LH

09180-06285

$2.74

27

RAIL, SEAT

41200-49J00

Unavailable

28

PLATE, REAR FRAME, RH

42651-49J00

Unavailable

29

PLATE, REAR FRAME, LH

42661-49J00

Unavailable

30

BOLT

07130-0816B

$4.25

31

TOOL ASSY This part replaces 09800-21022.

09800-21104

$34.10

32

HEXAGON SPANNER, 5

09816-00059

$8.45
