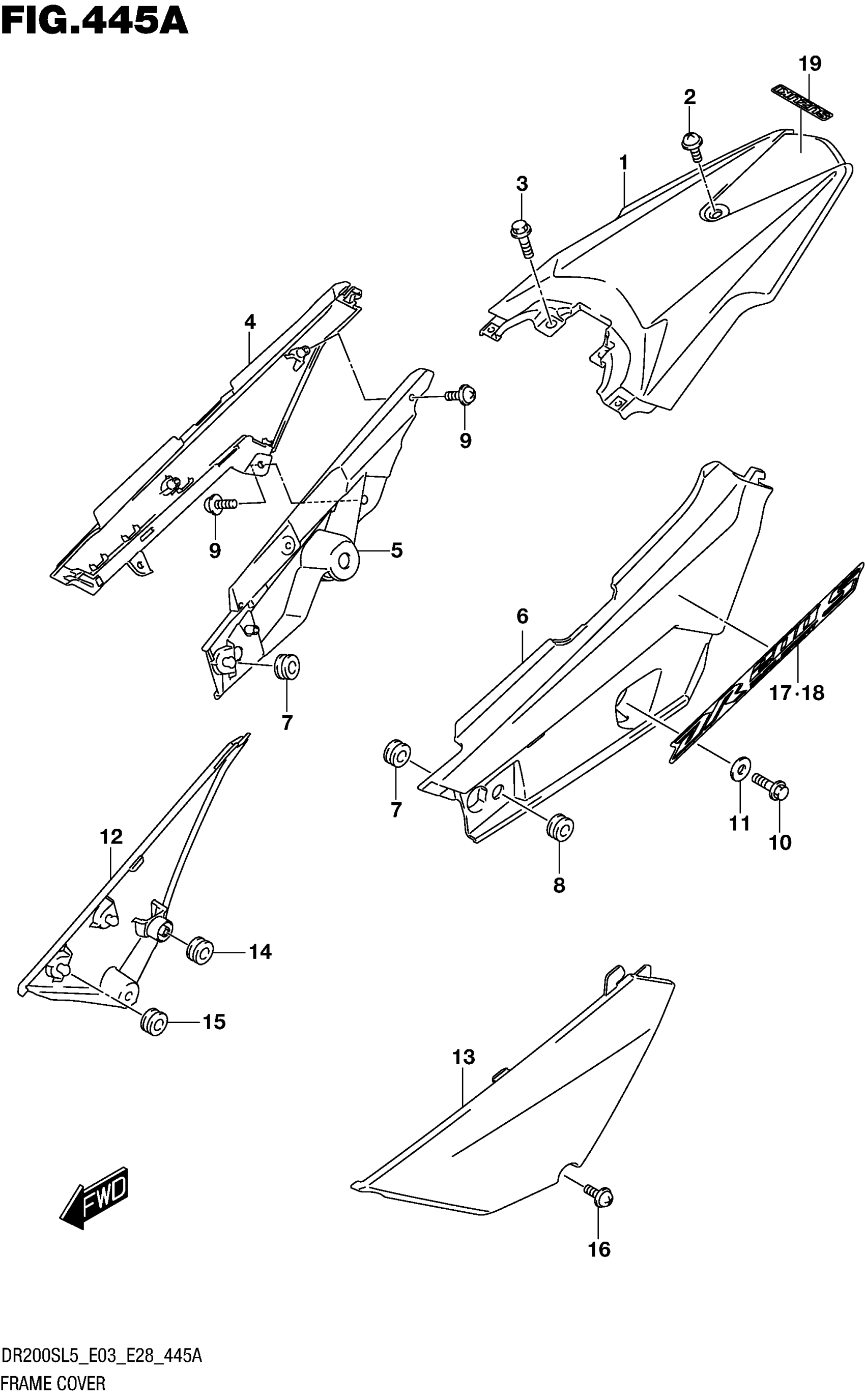

Suzuki DR200SL5 (2015) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME CENTER(BLACK)

47311-49J00-019

Unavailable

1

COVER, FRAME CENTER(YELLOW)

47311-49J00-YU1

$110.53

2

SCREW(6X12)

09139-06188

$3.72

3

BOLT

01550-0612A

$1.97

4

COVER, FRAME UPPER RH (BLACK)

47121-49J00-019

$97.20

4

COVER, FRAME UPPER RH (YELLOW)

47121-49J00-YU1

$97.20

5

COVER, FRAME INNER,RH

47131-49J00

$36.93

6

COVER, FRAME UPPER LH (BLACK)

47221-49J00-019

$97.20

6

COVER, FRAME UPPER LH (YELLOW)

47221-49J00-YU1

$97.20

7

CUSHION

09320-08018

$3.04

8

CUSHION

09320-08028

$3.04

9

SCREW

03541-0516A

$1.49

10

BOLT(8X16)

09135-08007

$2.93

11

WASHER

09169-08045

$2.23

12

COVER, FRAME RH (WHITE)

47111-49J00-30H

$86.10

13

COVER, FRAME LH (WHITE)

47211-49J00-30H

$86.10

14

CUSHION

47161-08G00

$9.63

15

CUSHION

09320-08029

$2.41

16

SCREW(6X16)

09139-06169

$3.10

17

EMBLEM, FRAME COVER, RH (WHITE/GRAY)

68135-49J00-GYY

$17.03

18

EMBLEM, FRAME COVER, LH (WHITE/GRAY)

68145-49J00-GYY

$17.03

19

EMBLEM,SUZUKI This part replaces 68171-28H00-YHG.

68171-28H01-YHG

$5.92
