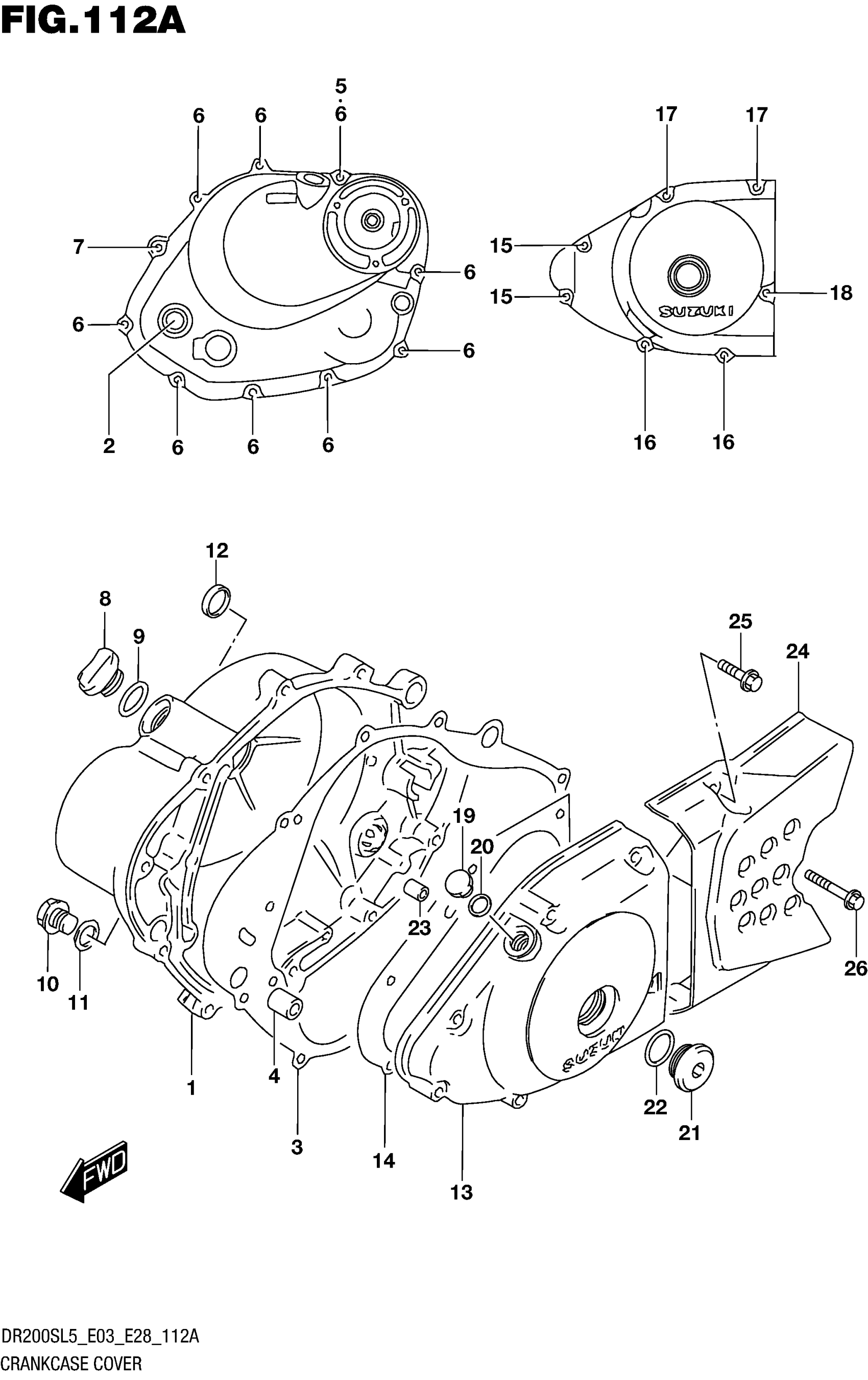

Suzuki DR200SL5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11340-42A20.

11340-42A30

$247.38

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

.GASKET, CLUTCH COVER

11482-05211

$12.83

4

KNOCK PIN

04211-13189

$2.19

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

BOLT

01547-0630A

$2.32

7

BOLT

01547-0645A

$2.42

8

PLUG

09259-20019

$11.52

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

10

PLUG (14X12)

09247-14026

$3.76

11

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

12

PLUG, CLUTCH COVER KICK

11342-12C51

$10.65

13

COVER, MAGNETO

11351-42A30

$166.88

14

GASKET, MAGNETO COVER

11483-05312

$10.68

15

BOLT

01547-0630A

$2.32

16

BOLT

01547-0635A

$2.30

17

BOLT

01547-0640A

$2.32

18

BOLT

01547-0650A

$2.46

19

PLUG (12X9)

09247-12104

$2.73

20

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

21

PLUG (26X9)

09259-26011

$11.03

22

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

23

KNOCK PIN

04211-09129

$1.65

24

COVER, ENGINE SPROCKET

11360-42A20

$91.95

25

BOLT

01547-0625A

$2.01

26

BOLT

01547-0635A

$2.30
