2015 Suzuki DR200SL5 Camshaft/valve Diagram

← All diagrams

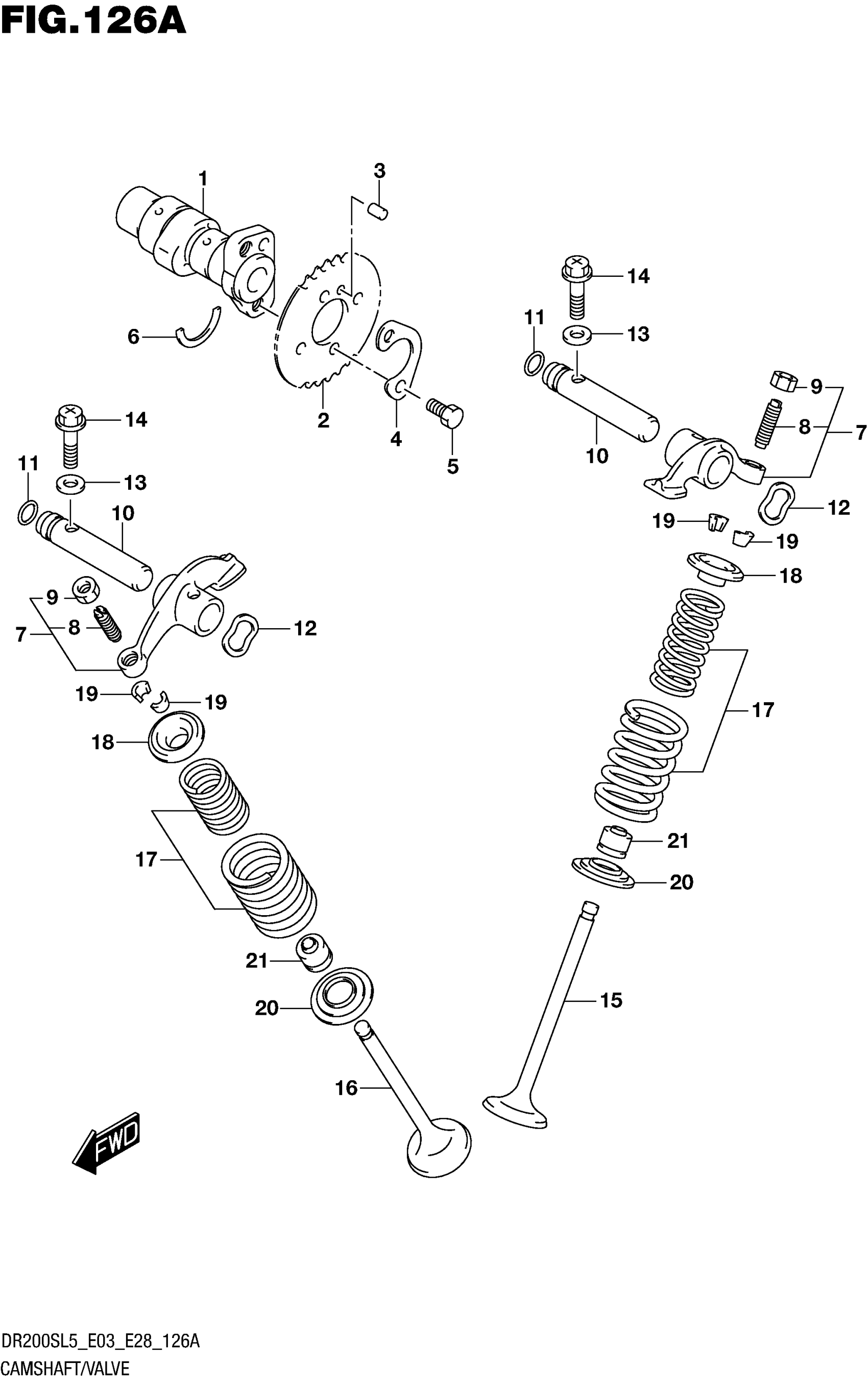

Find the part on the Camshaft/valve diagram for your 2015 Suzuki DR200SL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DR200SL5 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$185.08

In stock

2

1

$25.93

In stock

3

PIN (5X8)

09261-05005

1
Out of stock

4

WASHER, SPROCKET

12747-05202

1

$2.76

In stock

5

BOLT (6X10.5)

09100-06166

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM, VALVE ROCKER

12840-25C10

2

$61.78

In stock

8

2

$5.38

In stock

9

.NUT, ADJUSTING SCREW

12843-32400

2

$2.92

In stock

10

2

$22.25

In stock

11

2

$3.58

In stock

12

WASHER (37.3X52X1)

09164-12021

2

$2.18

In stock

13

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

14

SCREW

02162-0625A

2

$1.75

In stock

15

VALVE, INTAKE

12911-42A00

1

$49.30

In stock

16

VALVE, EXHAUST

12912-42A00

1

$65.06

In stock

17

SPRING SET, VALVE

12920-05210

2

$14.11

In stock

18

2

$7.09

In stock

19

COTTER, VALVE

12932-24400

4

$2.14

In stock

20

SEAT, VALVE SPRING

12933-49201

2

$5.98

In stock

21

OIL SEAL (5.5X11X8.2)

09289-05015

2

$6.49

In stock
← Cam Chain Crankcase →
