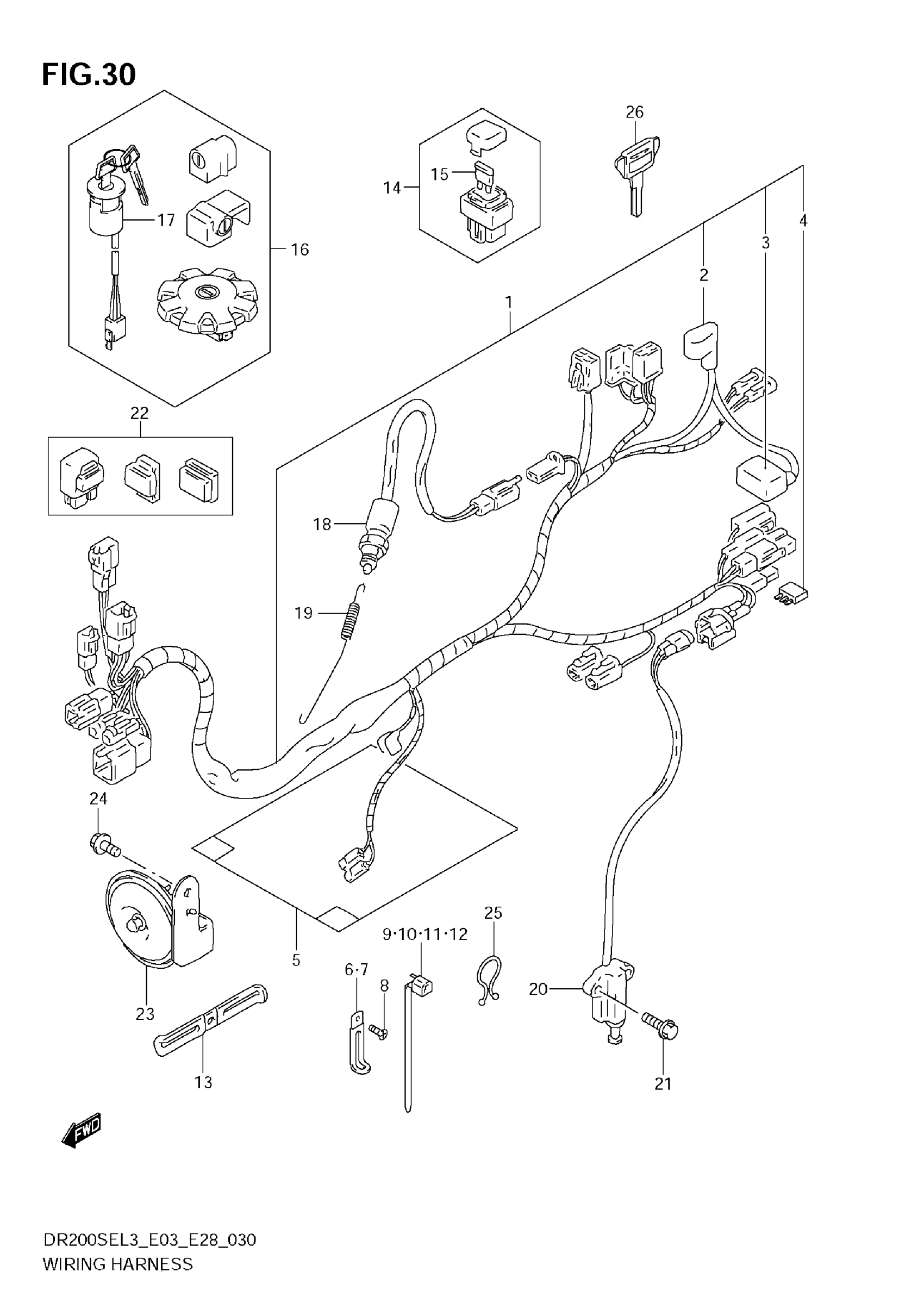

Suzuki DR200SE (2013) WIRING HARNESS (DR200SEL3 E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-42A50

Unavailable

2

CAP, STARTER RELAY

31861-10D00

Unavailable

3

CAP, BATTERY PLUS

33624-10D00

$6.30

4

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

5

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

6

CLAMP (L:45)

09404-06429

$1.83

7

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

8

SCREW

03541-0410B

$1.98

9

CLAMP (L:95)

09407-11401

$2.63

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:165)

09407-18402

$2.19

12

CLAMP (L:235)

09407-25401

$4.66

13

CLAMP, STARTER MOTOR LEAD

36651-05301

Unavailable

14

FUSE ASSY

36740-24B01

$28.18

15

FUSE (20A)

09481-20101

$2.12

16

LOCK SET

37000-44821

Unavailable

17

SWITCH ASSY, IGNITION

37110-44A20

$104.18

18

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

19

SPRING

09443-06064

$5.20

20

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

21

BOLT

01550-0620B

$2.39

22

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

23

HORN ASSY

38500-44B00

$87.70

24

BOLT

01550-0612A

$1.97

25

CLIP (ID:11.5)

09408-00012

$2.13

26

KEY, BLANK | OPT

37146-03A00

$9.89

26

KEY, BLANK | OPT

37146-03A10

$11.63

26

KEY, BLANK | OPT

37146-03A20

$12.10

26

KEY, BLANK | OPT

37146-03A30

$10.28
