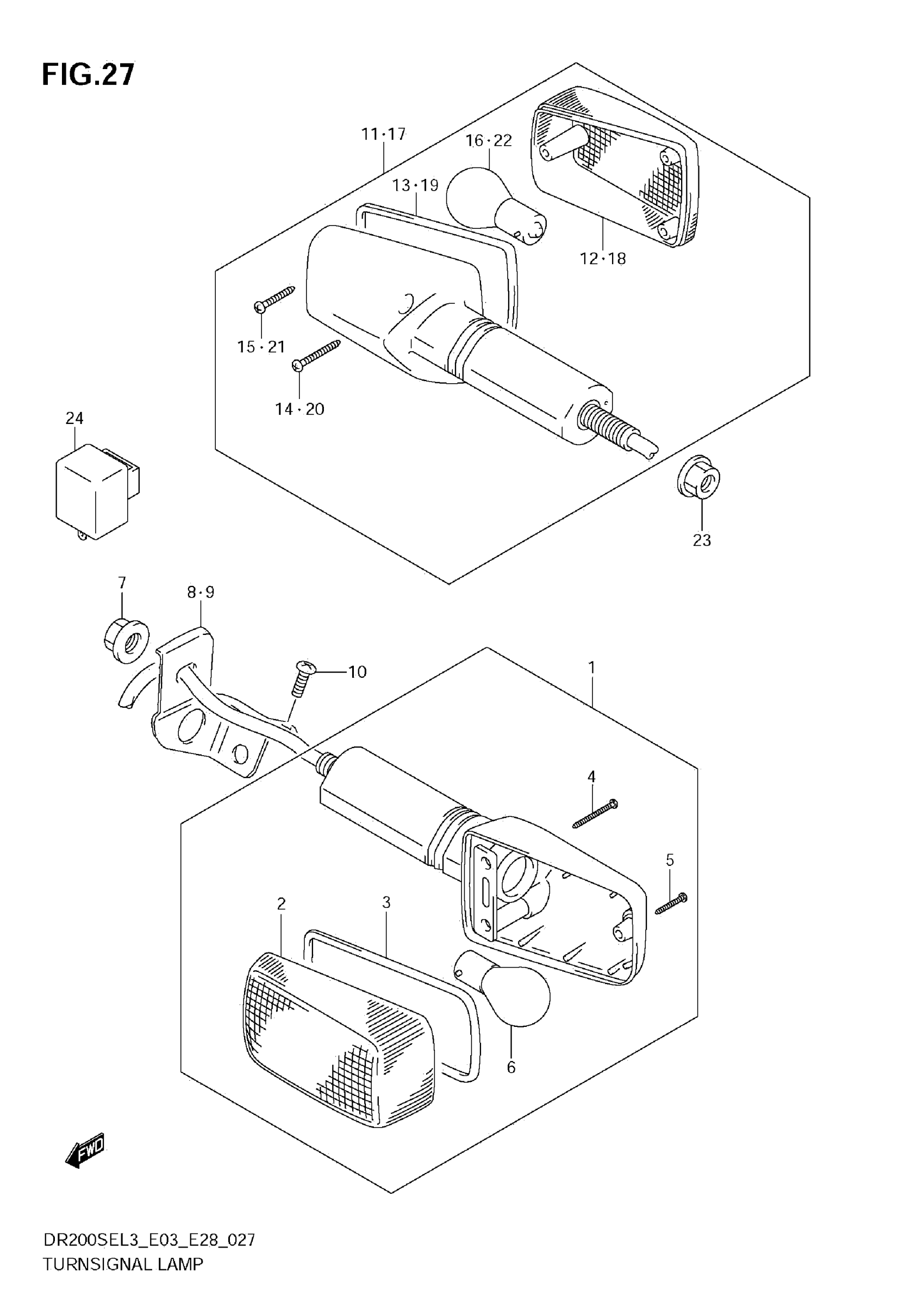

Suzuki DR200SE (2013) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL

35601-29EC0

$110.10

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

SCREW

35623-27A00

$1.65

5

SCREW

35725-40511

$1.91

6

BULB (12V,21W)

09471-12045

$3.27

7

NUT

08316-1010A

$2.70

8

BRACKET, FRONT TURN RH

35670-44A01

$11.30

9

BRACKET, FRONT TURN LH

35680-44A01

$11.30

10

SCREW

02142-0508A

$1.49

11

LAMP ASSY, REAR TURNSIGNAL RH

35603-29EK0

$108.22

12

LENS

35652-17C20

$10.28

13

GASKET

35613-27A00

$4.52

14

SCREW

35623-27A00

$1.65

15

SCREW

35725-40511

$1.91

16

BULB (12V,21W)

09471-12045

$3.27

17

LAMP ASSY, REAR TURNSIGNAL LH

35603-29EK0

$108.22

18

LENS

35652-17C20

$10.28

19

GASKET

35613-27A00

$4.52

20

SCREW

35623-27A00

$1.65

21

SCREW

35725-40511

$1.91

22

BULB (12V,21W)

09471-12045

$3.27

23

NUT

08316-1010A

$2.70

24

RELAY ASSY, TURNSIGNAL

38610-31X50

$80.15
