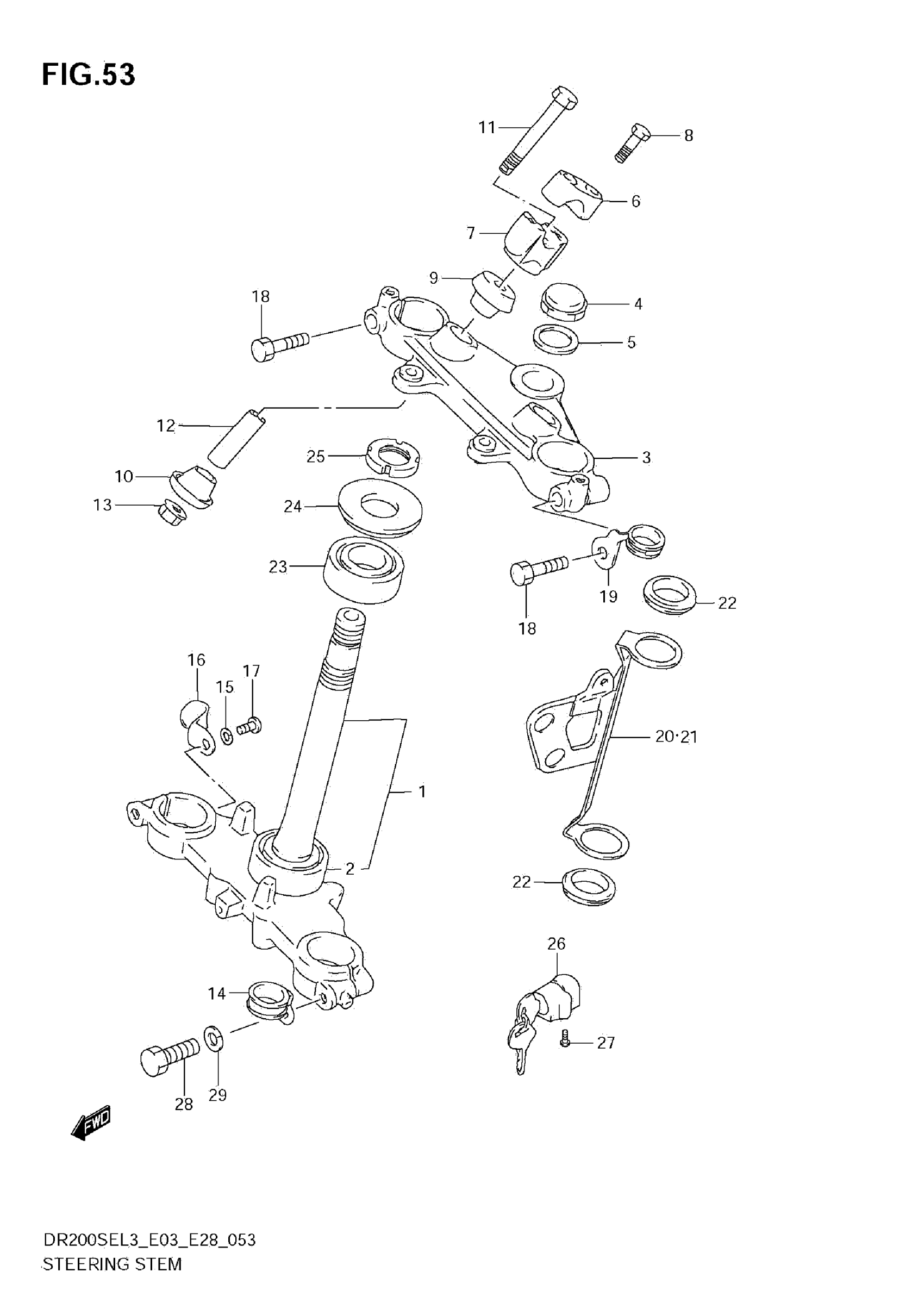

Suzuki DR200SE (2013) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-42AB0

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

HEAD, STEERING STEM (BLACK)

51311-44AA0-291

Unavailable

4

NUT, CAP

51353-24B00

$30.67

5

WASHER

51354-14D00

$12.08

6

HOLDER, HANDLE UPPER (BLACK)

56211-27200-291

$17.90

7

HOLDER, HANDLE LOWER (BLACK)

56221-42A00-291

$45.38

8

BOLT

01550-0835B

$3.95

9

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$30.47

10

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$28.58

11

BOLT, HANDLE HOLDER

56321-27E00

$11.50

12

SPACER

56243-42A00

$8.03

13

NUT

08319-31107

$2.73

14

CLIP

51452-42A00

Unavailable

15

LOCK WASHER

08321-01067

$2.13

16

CLIP

51452-05130

Unavailable

17

SCREW

02112-06087

$1.49

18

BOLT

01550-1040B

Unavailable

19

CLIP

51452-48700

$14.20

20

BRACKET, HEADLAMP RH

51530-42A00

Unavailable

21

BRACKET, HEADLAMP LH

51540-42A00

Unavailable

22

CUSHION

51553-34280

$5.50

23

BEARING (25X47X15)

09265-25019

$56.53

24

SEAL, STEERING UPPER DUST

51643-01B10

$11.07

25

NUT, STEERING

51631-08D30

Unavailable

26

LOCK SET, STEERING

51900-44810

Unavailable

27

SCREW

02112-3512B

$2.58

28

BOLT

51451-42A00

Unavailable

29

LOCK WASHER

08321-0110B

$2.83
