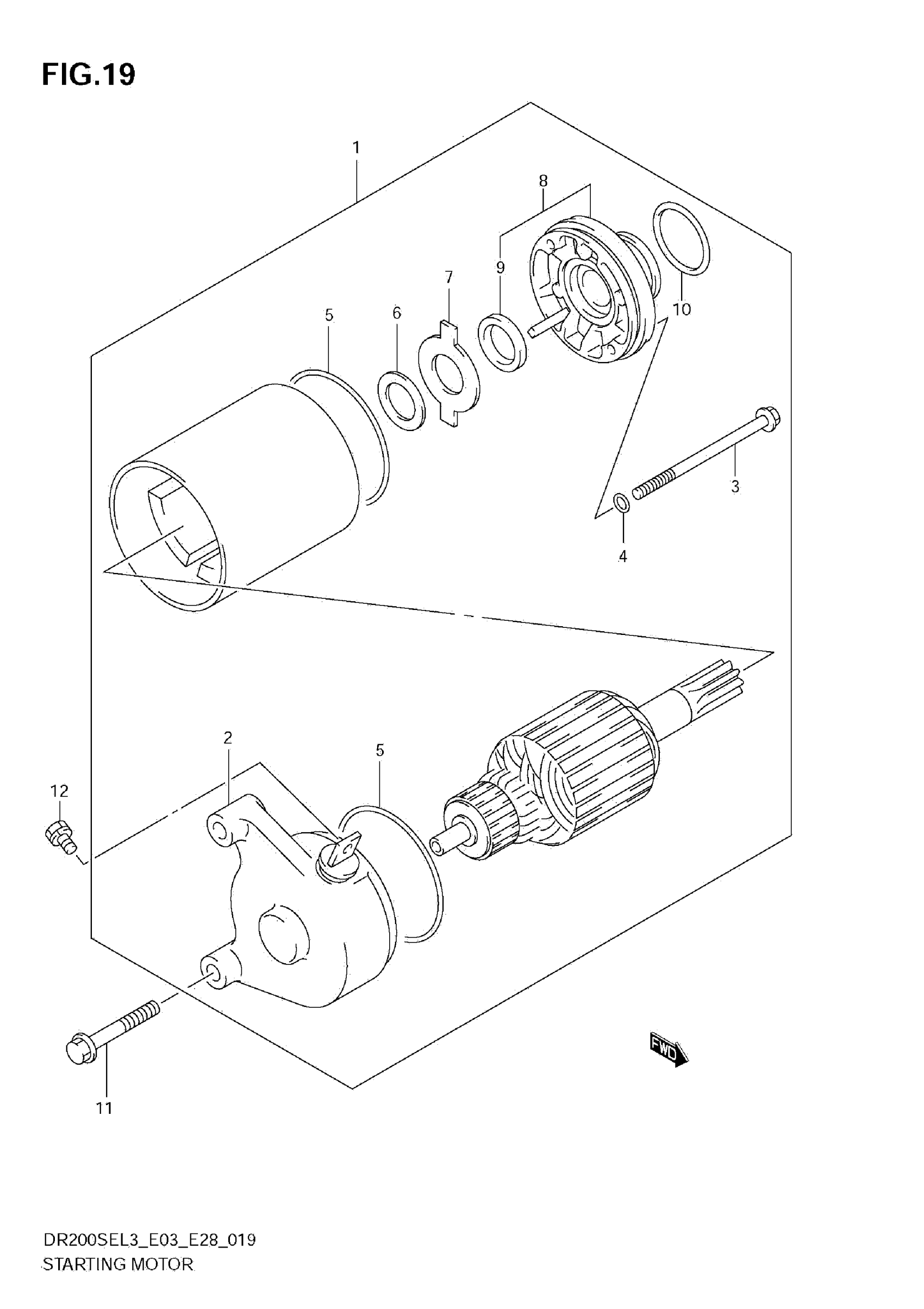

Suzuki DR200SE (2013) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-42A20

$679.68

2

FRAME ASSY, COMMUTATOR END

31175-42A20

Unavailable

3

BOLT

31281-08F00

Unavailable

4

O RING

31156-08F00

$4.52

5

O RING

31264-32C10

$14.20

6

SHIM

31361-38300

Unavailable

7

PLATE, LOCK

31361-32C10

Unavailable

8

BRACKET

31150-08F00

Unavailable

9

OIL SEAL

31153-49210

$24.20

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT

01547-0630A

$2.32

12

SCREW (5X8)

09137-05004

$2.17
