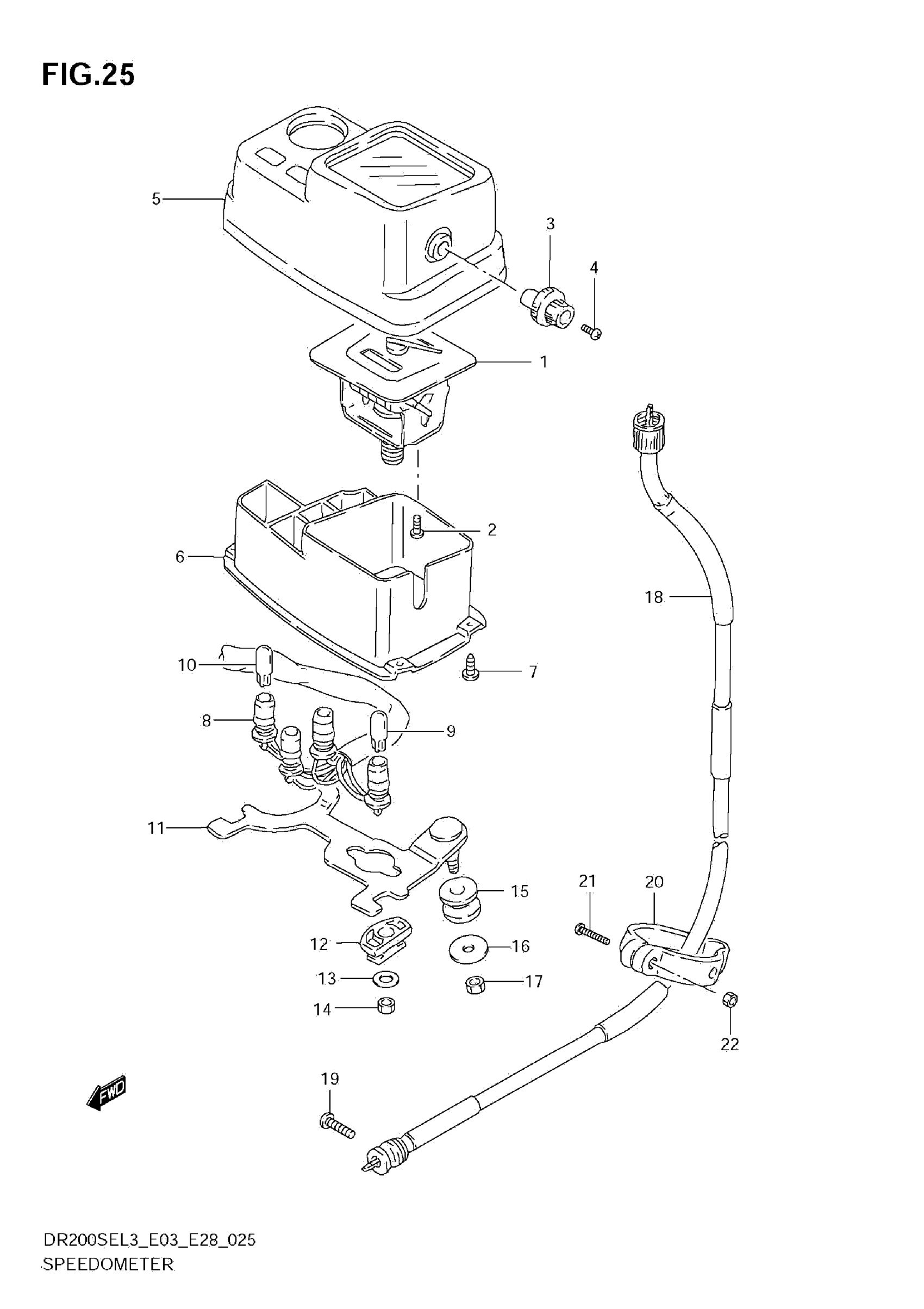

Suzuki DR200SE (2013) SPEEDOMETER (DR200SEL3 E33) Diagram

#

Description
Price

1

SPEEDOMETER

34120-44AB0

$322.02

2

SCREW

02112-7412A

$2.12

3

KNOB, TRIP

34124-14A10

$9.17

4

SCREW (2X6)

09139-02003

$1.65

5

HOOD, METER

34150-44AD0

Unavailable

6

CASE, METER

34111-14A10

$40.33

7

SCREW

34184-12B00

$2.45

8

SOCKET ASSY

34173-44A90

Unavailable

9

BULB (12V,3.4W)

09471-12028

$1.99

10

BULB (12V,1.7W)

09471-12077

$3.55

11

BRACKET, METER

34950-44A00

Unavailable

12

CUSHION

34189-14A10

$5.50

13

WASHER (5.5X16X1.2)

09160-05043

$2.30

14

NUT

08310-00057

$1.84

15

CUSHION, METER BRACKET

34956-15100

$3.71

16

WASHER This part replaces 09160-06132.

09160-06084

$1.78

17

NUT

08310-0006B

$2.34

18

CABLE ASSY,SPEE This part replaces 34910-44A20.

34910-44A21

$38.52

19

.SCREW

02112-0516A

$1.49

20

CLAMP, SPEEDOMETER CABLE

34938-01A00

$13.05

21

.SCREW

02112-0516A

$1.49

22

NUT This part replaces 08310-0005B.

08310-0005A

$1.84
