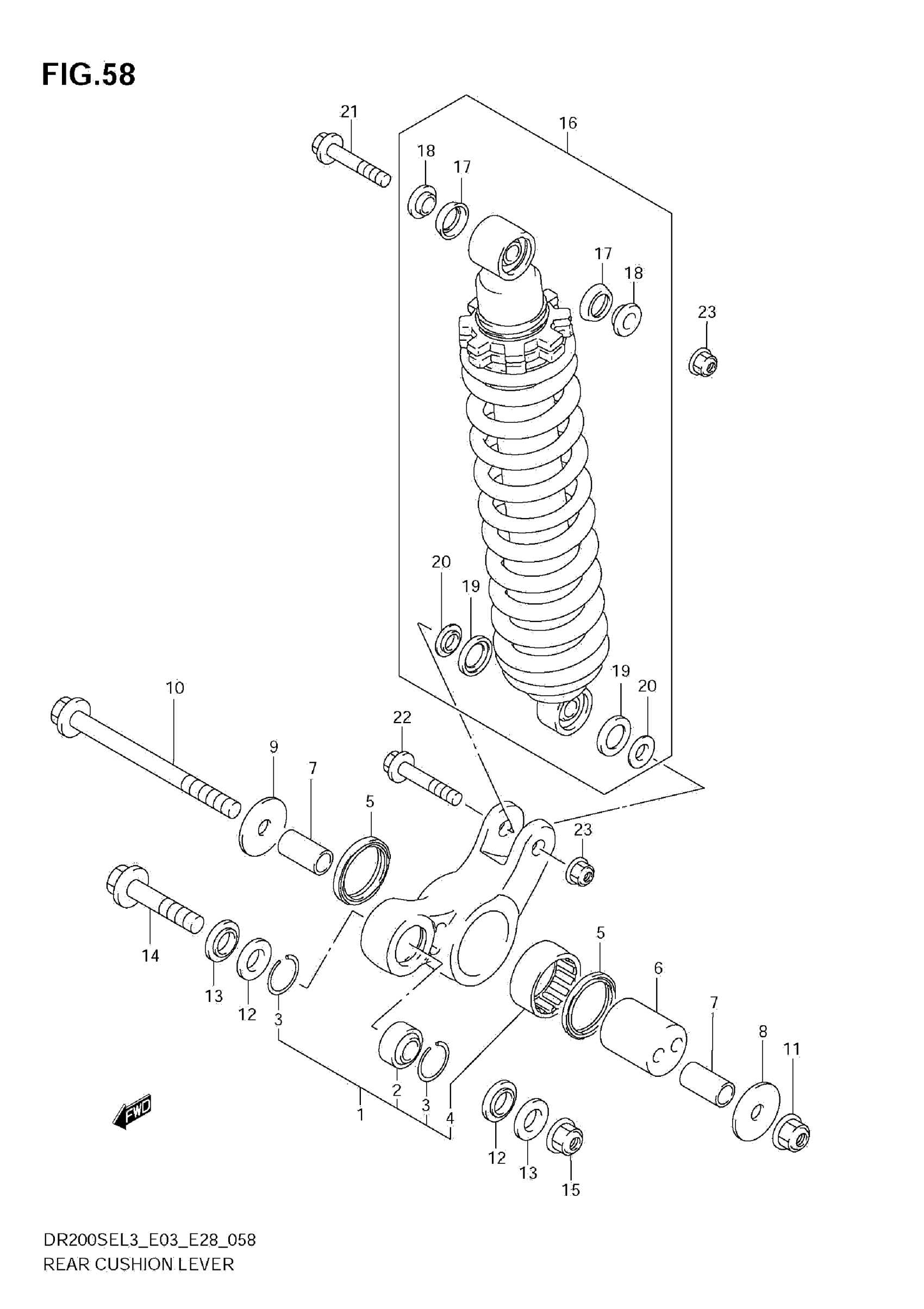

Suzuki DR200SE (2013) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-42812

Unavailable

2

BEARING (12X26X16)

09269-12006

Unavailable

3

RING, BEARING STOPPER

62277-27C20

$3.92

4

BEARING (37X47X20)

09263-37003

$49.53

5

SEAL, DUST

62624-42A00

$10.07

6

SPACER, REAR SUSPENSION ECCENTRIC

62623-42A11

Unavailable

7

SPACER, CUSHION LEVER SHAFT

62646-42A11

Unavailable

8

WASHER, LEVER CENTER LH

62628-42AA0

$8.12

9

WASHER, LEVER CENTER RH

62625-42AA0

Unavailable

10

SHAFT, CUSHION LEVER CENTER

62621-42AA0

Unavailable

11

NUT

08319-2112A

$3.76

12

SEAL, CUSHION LEVER FRNT DUST

62647-05A00

$3.30

13

SPACER, CUSHION LEVER FRONT

62316-05A01

$10.54

14

BOLT, CUSHION LEVER FRONT

62668-42A02

$10.67

15

NUT

08319-3112A

$3.76

16

ABSORBER ASSY, REAR SHOCK (WHITE)

62100-44AB2-28W

$905.87

17

SEAL, DUST

62226-20900

$13.05

18

SPACER

62684-20900

$12.15

19

SEAL, DUST LOWER

62226-02B00

$13.05

20

COLLAR, LOWER

62684-31300

$12.40

21

BOLT (10X58)

09103-10428

$5.07

22

BOLT (10X48)

09103-10126

$4.50

23

NUT

09159-10115

$3.55
