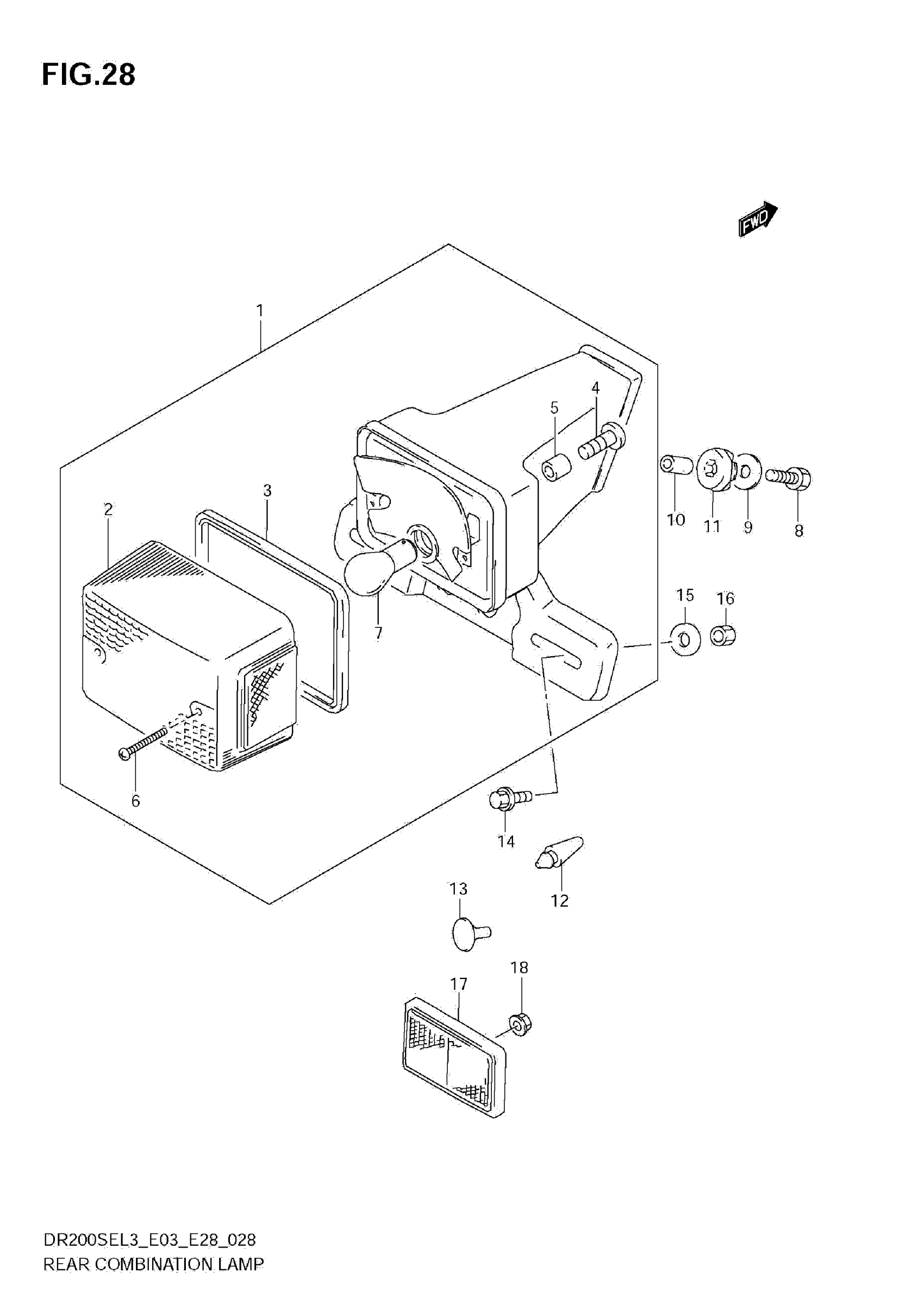

Suzuki DR200SE (2013) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-42A30

$159.52

2

LENS

35712-42A30

$51.24

3

.GASKET LENS

35713-14D30

$7.88

4

SCREW (6X25)

09125-06055

$2.34

5

SPACER

35766-14D30

$3.77

6

SCREW (4X45)

09125-04501

$3.16

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

8

BOLT

01500-0620A

$1.78

9

WASHER (6.5X18X1.6)

09160-06109

$1.49

10

SPACER (6.5X10X13)

09180-06291

$2.45

11

CUSHION

09320-09015

$3.40

12

CUSHION

09321-06030

$3.93

13

CUSHION

09321-06026

$2.92

14

BOLT

01500-0630A

$2.19

15

WASHER (6.5X18X1.6)

09160-06109

$1.49

16

NUT

08310-0006B

$2.34

17

REFLECTOR ASSY, REAR

35970-38E00

$47.57

18

NUT

08316-1005B

$2.50
